Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 36 P/N 57150002, Revision 5.0
F
Loudspeaker replacement
Performance

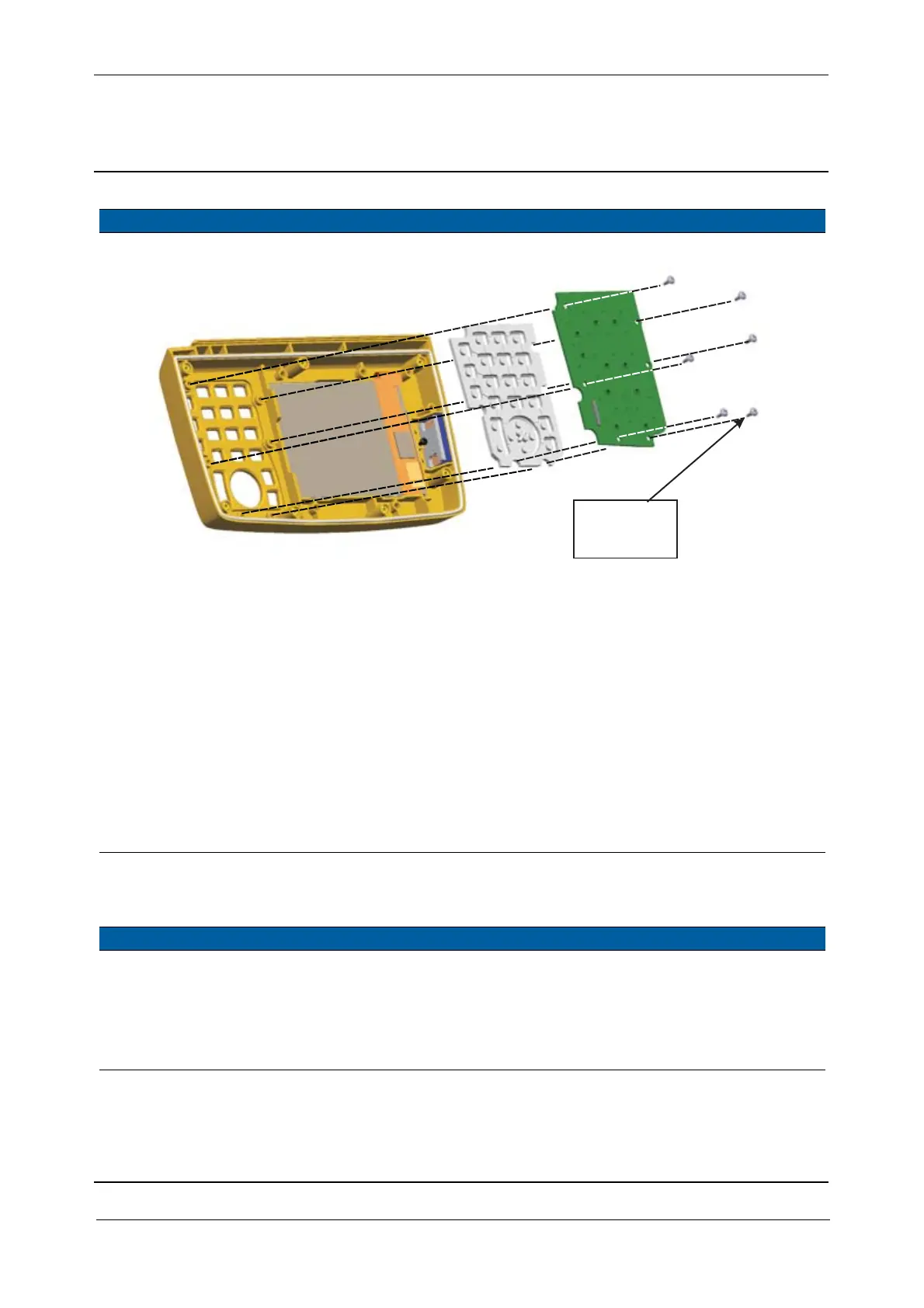

Fig. 5-34 KBDQ Replacement
5 Remove keyboard Lift the keyboard from
the front cover
6 Mount keyboard Mount the keyboard to
the front cover
7 Mount KBDQ board Mount KBDQ board
and tighten the screws
with a torque wrench
40 Ncm.
8 Mount IAB and
Quimby boards
See page 5-31
9 Mount back cover See page 5-25
10 Mount control panel to
instrument
See page 5-24
Item Performance Action Result Notes
1 Remove control panel
from instrument
See page 5-24
2 Remove back cover See page 5-25
3 Remove IAB and
Quimby boards
See page 5-31 Do not remove display
and display gasket
Item Performance Action Result Notes
40 Ncm /
3.6 lbfin
To Next Page
