Trimble S User Manual

Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 9 Trimble S, VX, SPS & RTS Service Manual
F
Replacement of handle parts
Performance
Fig. 5-11 Mount grip screw
4 Mount handle
Item Performance Action Results Notes
1 Remove handle.
2 Replace yellow parts. Remove two screws and
replace parts.
3 Replace black parts. A. Remove the yellow
parts.
B. Remove the lower part,
three screws.
C. Remove the upper part,
two screws.
35 Ncm. Use a torque wrench
with a torx T10 bit.

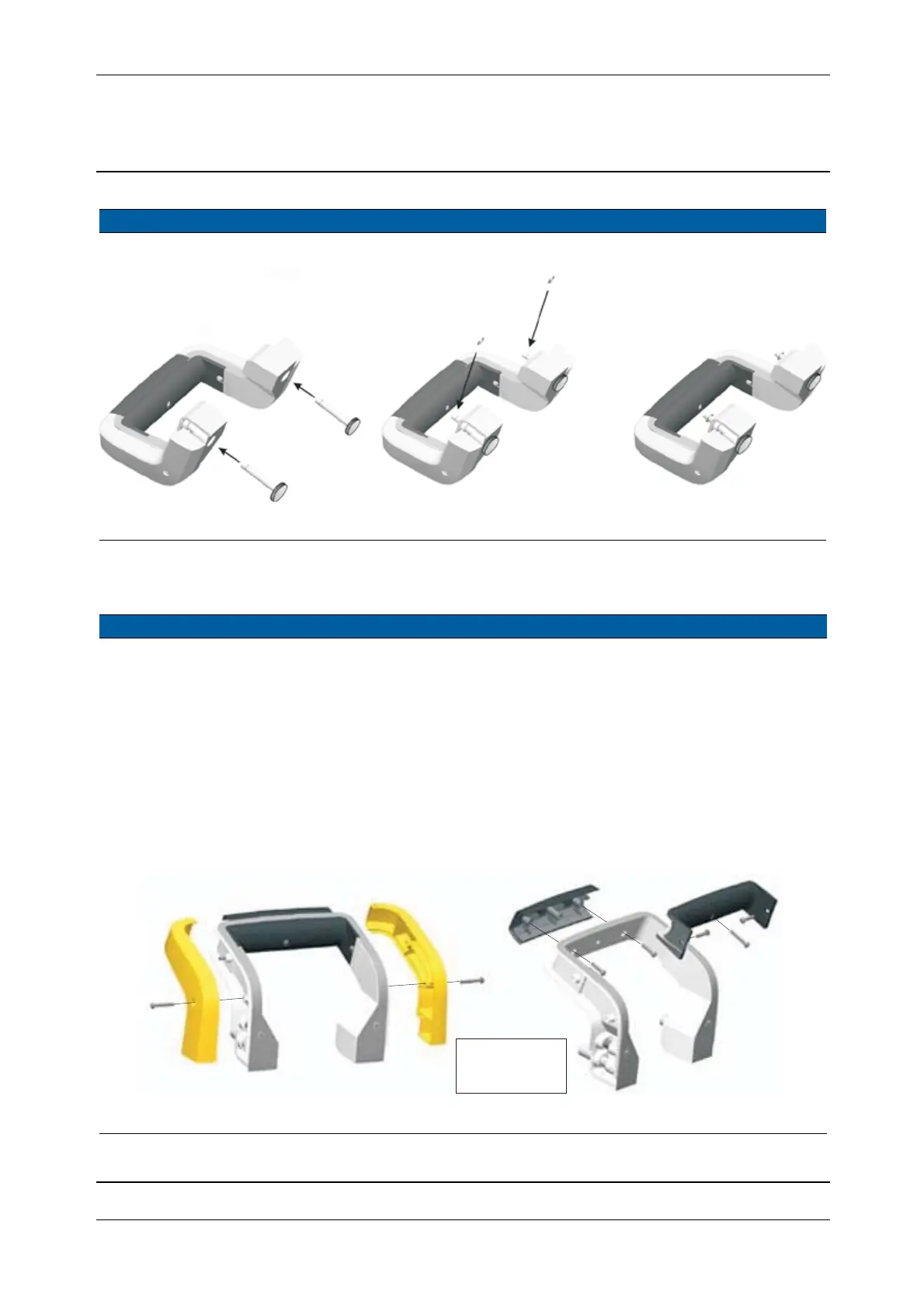

Fig. 5-12 Replacement of handle parts
4 Mount handle.
Item Performance Action Results Notes
AB
Yellow parts
Black parts
35 Ncm /
3.1 lbfin
