Tracker Long Range - TLR
Trimble S8 with Tracker Long Range (Long Range FineLock) requires PASS 1.6 or higher.
• Tracker Long Range transmitter alignment
• Tracker Long Range alignment function check
Tracker Long Range transmitter alignment
Tools and equipment
The Alignment of Tracker Long Range is done in the following steps, detailed description is found
in the table below:
1. Check collimator alignment.
2. Adjust collimator height adapter to pos. 1.
3. Aim instrument in face 2 to collimators cross-hairs.
4. Mount
Collimator adjustment cap tool and align standard laser pointer in vertical pos. to lower
hole on the cap.
5. Align Tracker Long Range to collimators cross-hairs.
6. Tracker Long Range alignment function check, see page 6-189.
Performance
Description Part number
Collimator adjustment cap 79020019
Item Performance Description Result Notes
1 Check collimator
alignment.
See page 6-32.
2 Prepare collimator
bench.
A. Turn the height adapter
to position 1, see Fig.
6-186.
B. Set the collimator wave
length to position 3.
C. Mount the instrument
on the collimator.
D. Remove handle and
tracker unit cover.

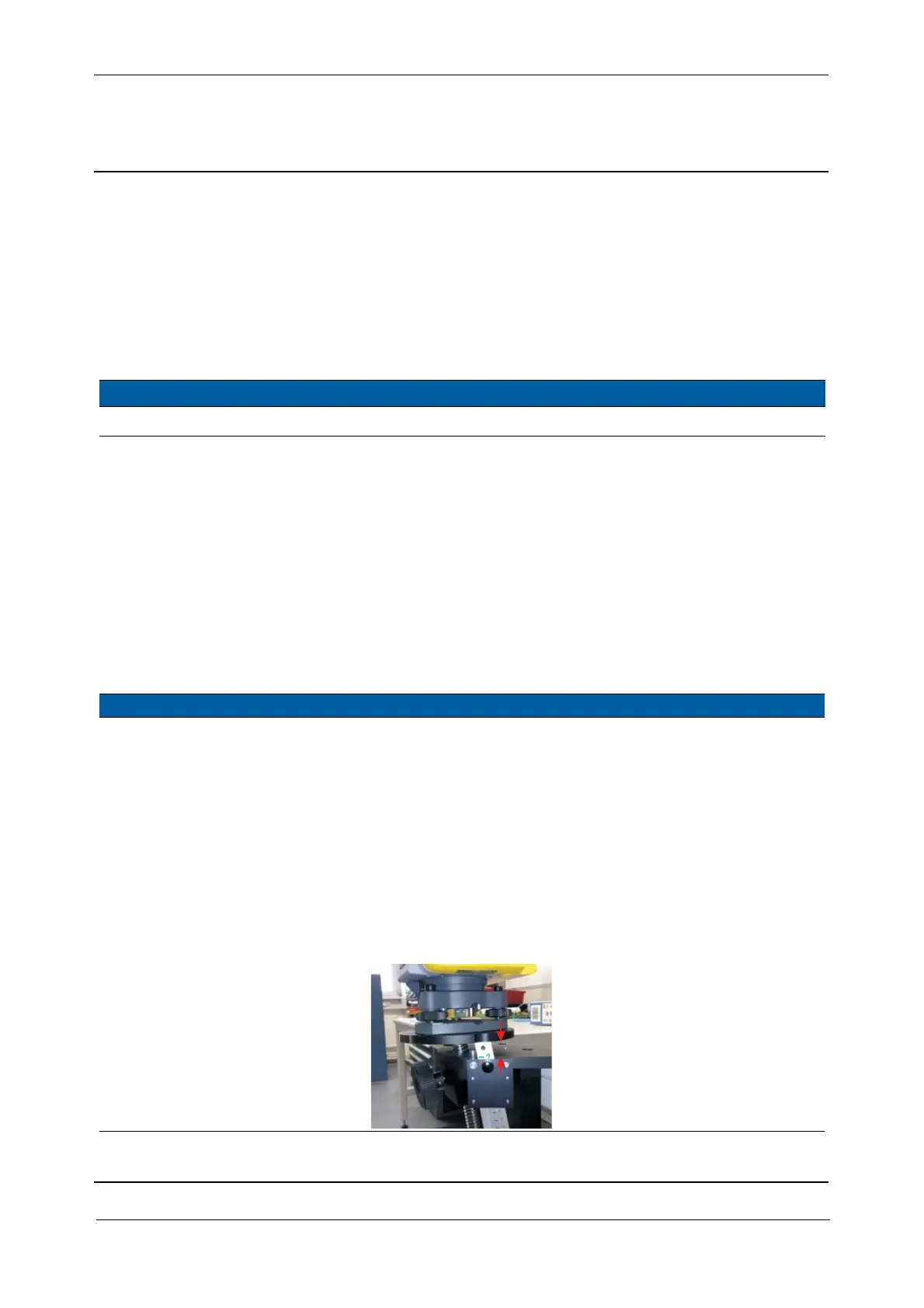

Fig. 6-186 Collimation height adapter
20mm
