Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 183 Trimble S, VX, SPS & RTS Service Manual
F
4 Start up instrument /
PASS.
Start PASS and Select
Check & adjust tracker
transmitter / Laser power
test
from Tracker in
Maintenance & service.
5 Run TLR Laser power
test.
Select
TLR Laser power
test
and press Start.
5
The test must be
successful
before
proceeding to
tracker
transmitter
alignment test.
The test will check
laser power
difference between
the 8 transmitting
channels.

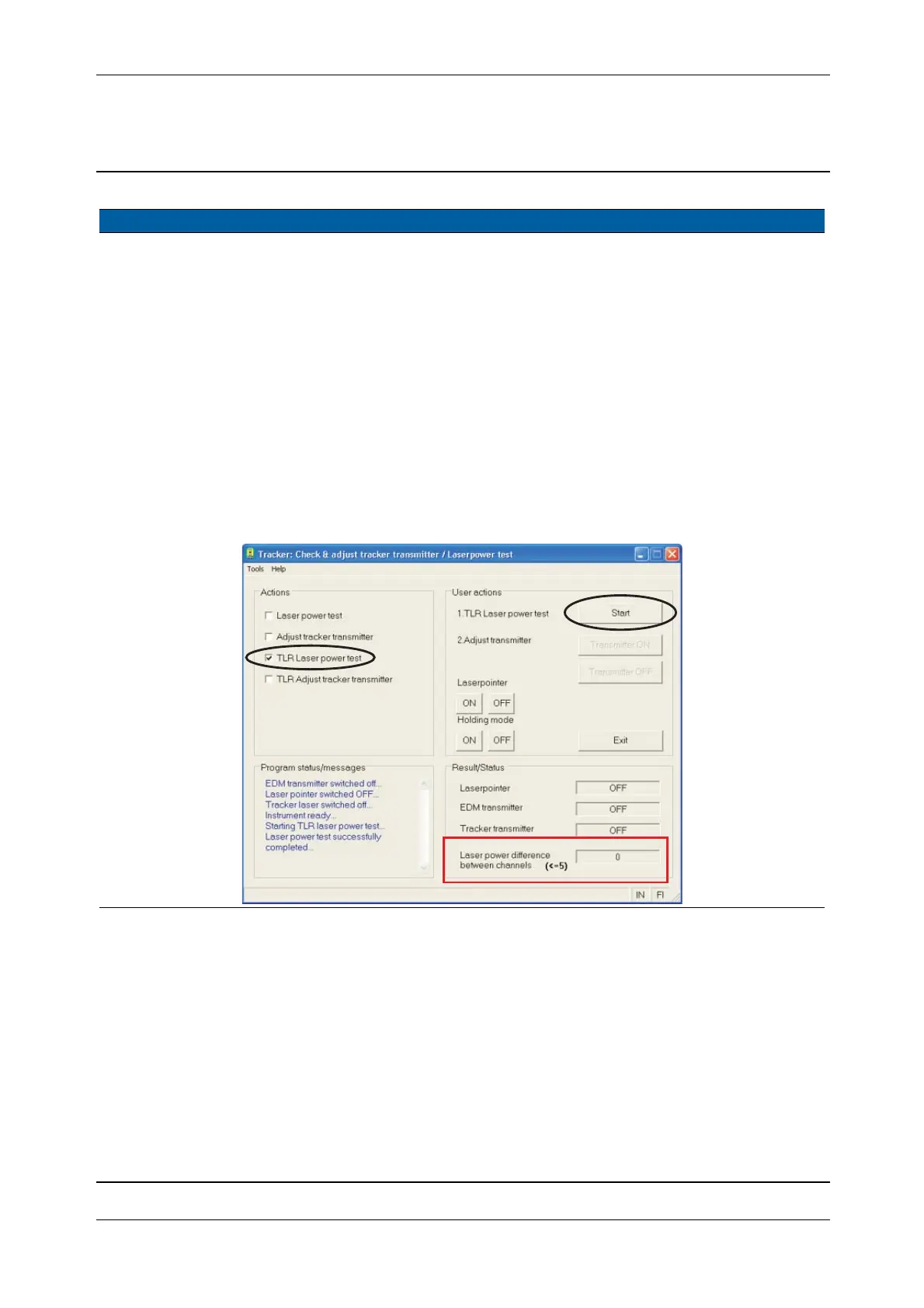

Fig. 6-187 TLR Laser Power Test
Item Performance Description Result Notes
