Trimble S User Manual

Chapter 8
Replacement Parts & Tooling
P/N 57150002, Revision 5.0 8 - 17 Trimble S, VX, SPS & RTS Service Manual
F

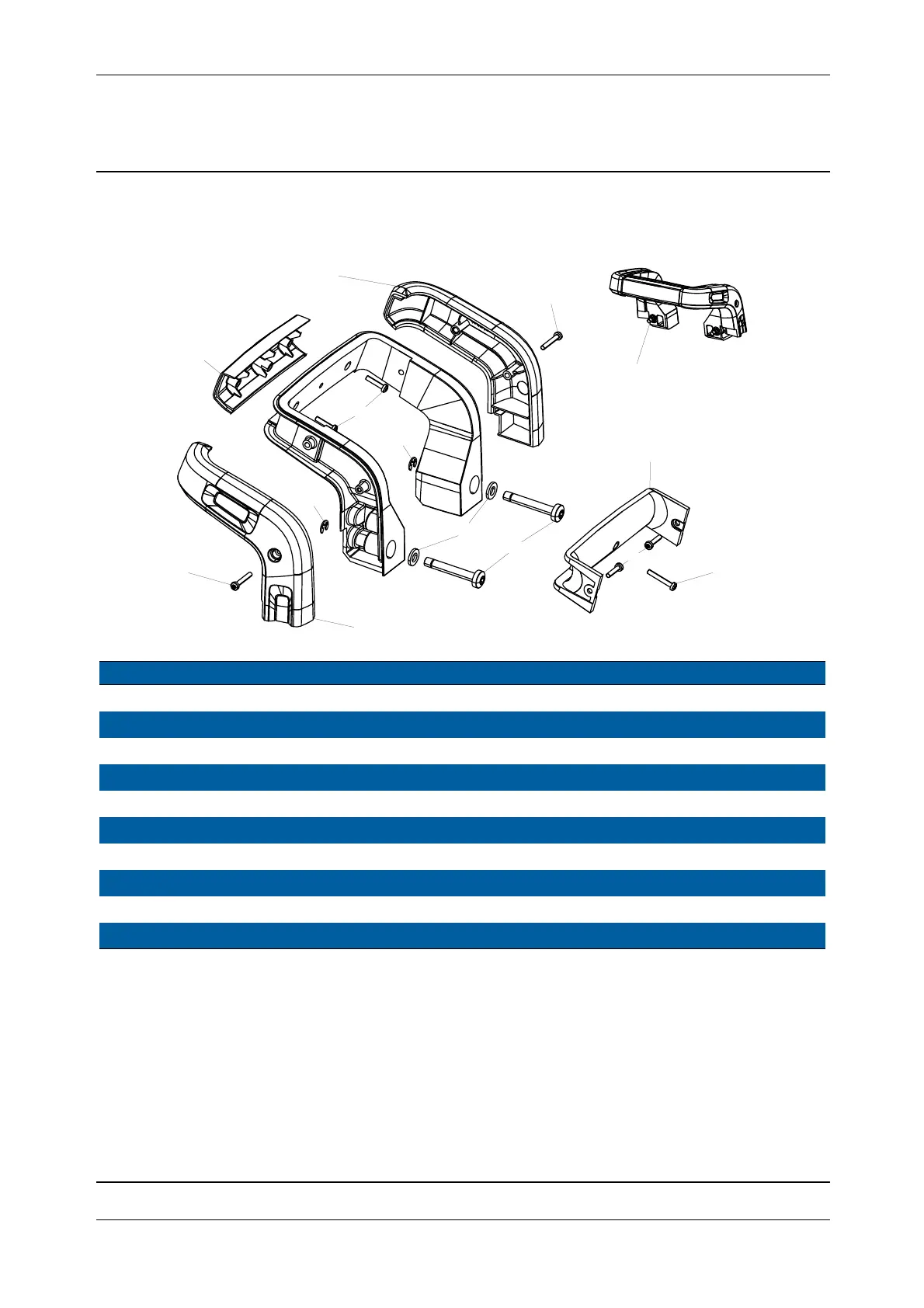

Handle - Trimble SPS/RTS Series
Handle
Item Description Part number Qty
1 Handle SPS/RTS complete 59007012 1
2 Package screw M3 x 20 A2-70, 20p 59000174 3
3 Cover left handle SPS/RTS 59012012 1
4 Package screw M3 x 14 A2-70, 20p 59000173 4
5 Package washer 6,4 x 12, 5p R44482153 2
6 Package screw for alidad handle, 5p 59025001 2
7 Grip inner 59172001 1
8 Cover right handle SPS/RTS 59013012 1
9 Package washer lock RS 4,3, 20p 59000556 2
10 Grip outer 59170001 1
1
2
2
2
3
4
4
5
6
7
8
9
9
10
