Trimble S - Determination tracker receiver collimation “ct” and “it”

Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 130 P/N 57150002, Revision 5.0
F
Determination tracker receiver collimation “ct” and “it”
Performance
Item Performance Description Result Notes
1 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
To perform this
determination the
Tracker system has to
be working
2 Start the test. Select
Check tracker
function/Crosstalk
from
Tracker in Maintenance &
Service,
see Fig. 6-141 on
page 6-130 .

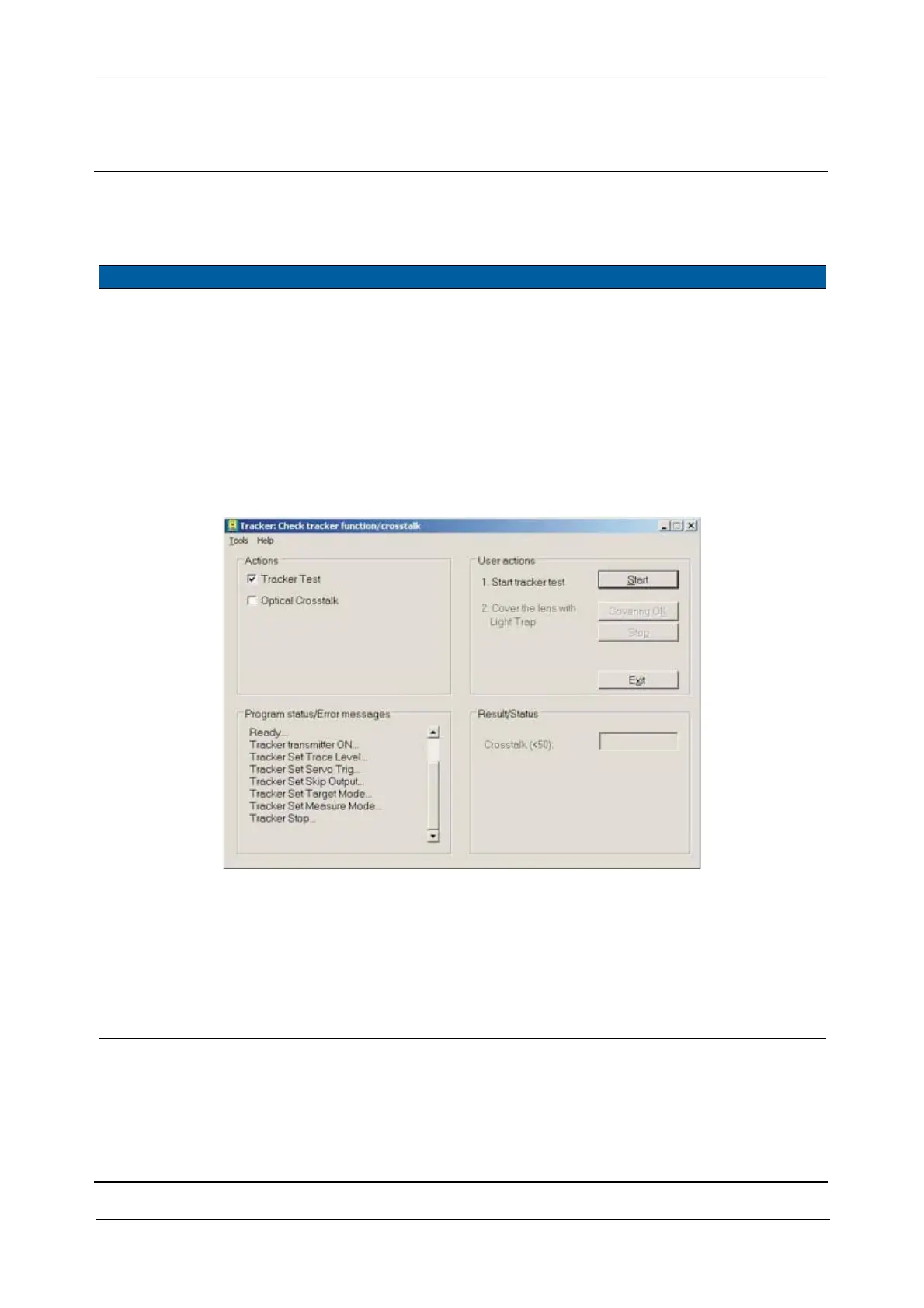

Fig. 6-141 Verify tracker repair
3 Prepare tracker test. Select
Tracker test check
box and click
Start.
EDM transmitter will
switch off.
The tracker test bench will
appear, see Fig. 6-142 on
page 6-131 .
