Trimble S - Centre Unit - Camera

Chapter 8
Replacement Parts & Tooling
Trimble S, VX, SPS & RTS Service Manual8 - 26 P/N 57150002, Revision 5.0
F

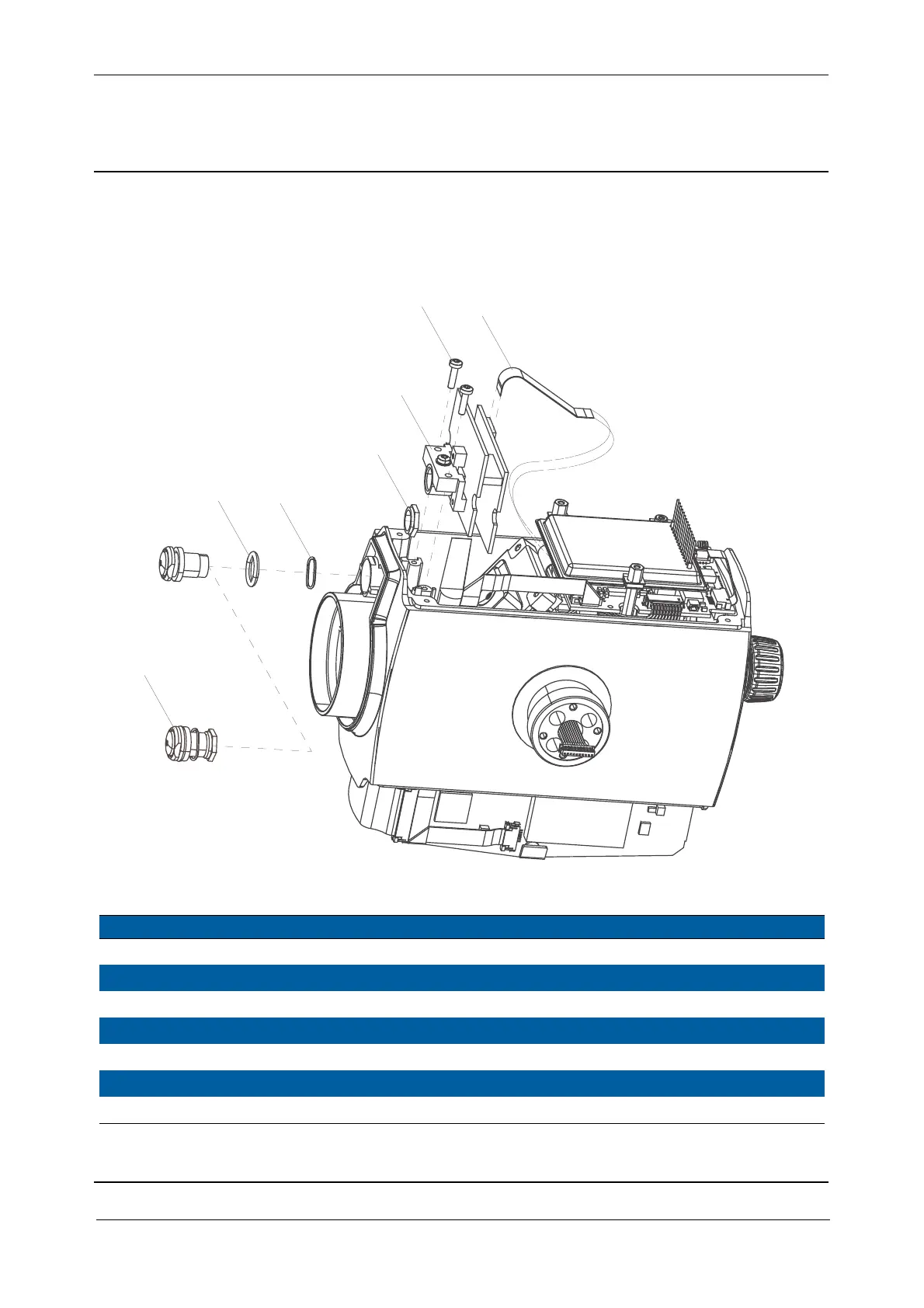

Centre Unit - Camera
Centre Unit - VX
Item Description Part number Qty
1 Video front lens, complete 79004011 1
2 Package O-ring, 20p 79005011 1
3 Package Spring washer, 5p 79000807 1
4 Package Nut, 5p 79610011 1
5 Digital Video-camera assembly 79003011 1
6 Package screw STS M2,5 x 10 A2-70, 20p 79000307 2
7 Package Cable Video-SFC, 5p 79008011 1
5
2
3
1
4
7
6
