Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 192 P/N 57150002, Revision 5.0
F
HPL transmitter alignment
Note – To make alignment and verifying the beam divergence the collimator for the digital camera is
required, see Service Bulletins JE-0908-0031 & JE-1208-0046.
Tools and equipment
Alignment of High Power Laser Pointer is done in the following steps. Detailed description is found
in the table below.
1. Check collimator alignment.
2. Adjust collimator height adapter to pos. 1.
3. Aim instrument in face 2 to collimators cross-hairs.
4. Mount
Collimator adjustment cap tool and align standard laser pointer in vertical pos. to lower
hole on the cap.
5. Mount
HPL filter 3R tool.
6. Align High Power Laser Pointer to collimators cross-hairs.
Performance
Description Part number
HPL filter 3R tool 79019019
Collimator adjustment cap 79020019
Digital Camera Upgrade kit (replacing analogue camera on collimator) 59025026
Item Performance Description Result Notes
1 Align collimator. See page 6-32.
2 Prepare collimator
bench.
A. Turn the height adapter
to position 1, see Fig.
6-198.
B. Set the collimator wave
length to pos. 2.
C. Mount the instrument
on the collimator.
D. Remove handle and
tracker unit cover.

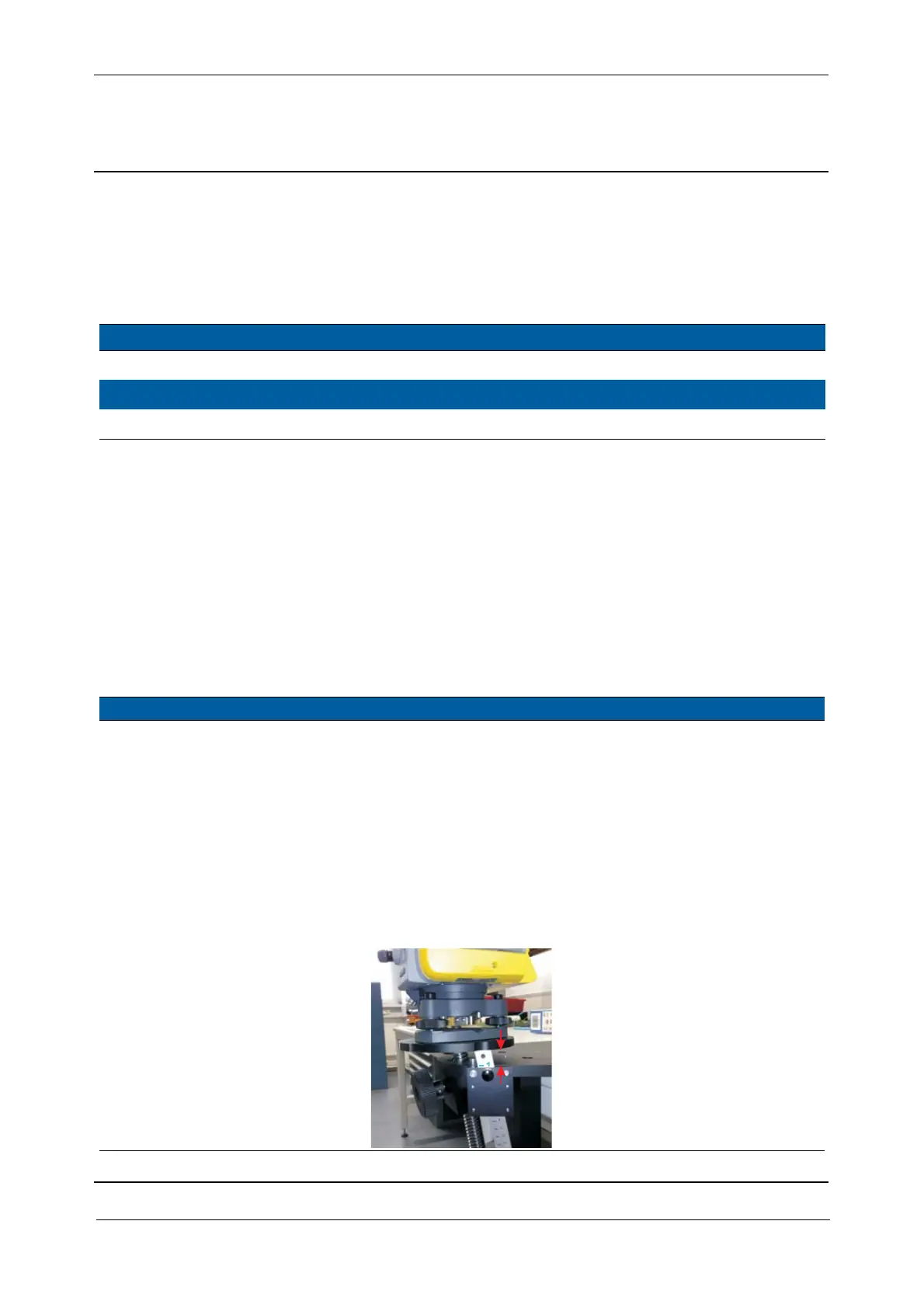

Fig. 6-198 Collimation height adapter
20mm
