Chapter 1
General Information and safety
P/N 57150002, Revision 5.0 1 - 21 Trimble S, VX, SPS & RTS Service Manual
F
The instrument contains visible and invisible laser sources:
• A laser diode for distance measuring in DR- mode and laser pointer function operating at 660
nm (visible light), with a beam divergence of 0.4 x 0.4 mrad and an output power of <1 mW,
while the emission is coaxial with the telescope. This mode operates in LASER CLASS 2.
• The laser diode for distance measuring in prism mode operates at 660 nm (visible light), with
a beam divergence of 0.4 x 0.4 mrad and an output power of <0,017 mW, while the emission is
coaxial with the telescope. This mode operates in LASER CLASS 1.
• As an option, an Autolock laser diode operates at 785 nm (infrared, non-visible light), with a
beam divergence of 38.5 mrad and an output power of < 0.35 mW, while the emission is coaxial
with the telescope. This mode operates in LASER CLASS1.
When operating in prism mode with Autolock and/or distance measurement the accessible radiation
does not exceed the limits of LASER CLASS 1.
Laser and LED Information Trimble S6 High Precision / S8 High Precision / SPS DR
Standard / RTS DR Standard
The Trimble S Series High Precision / DR Standard has been tested and complies with the regulations
for a Class 2 Laser product.

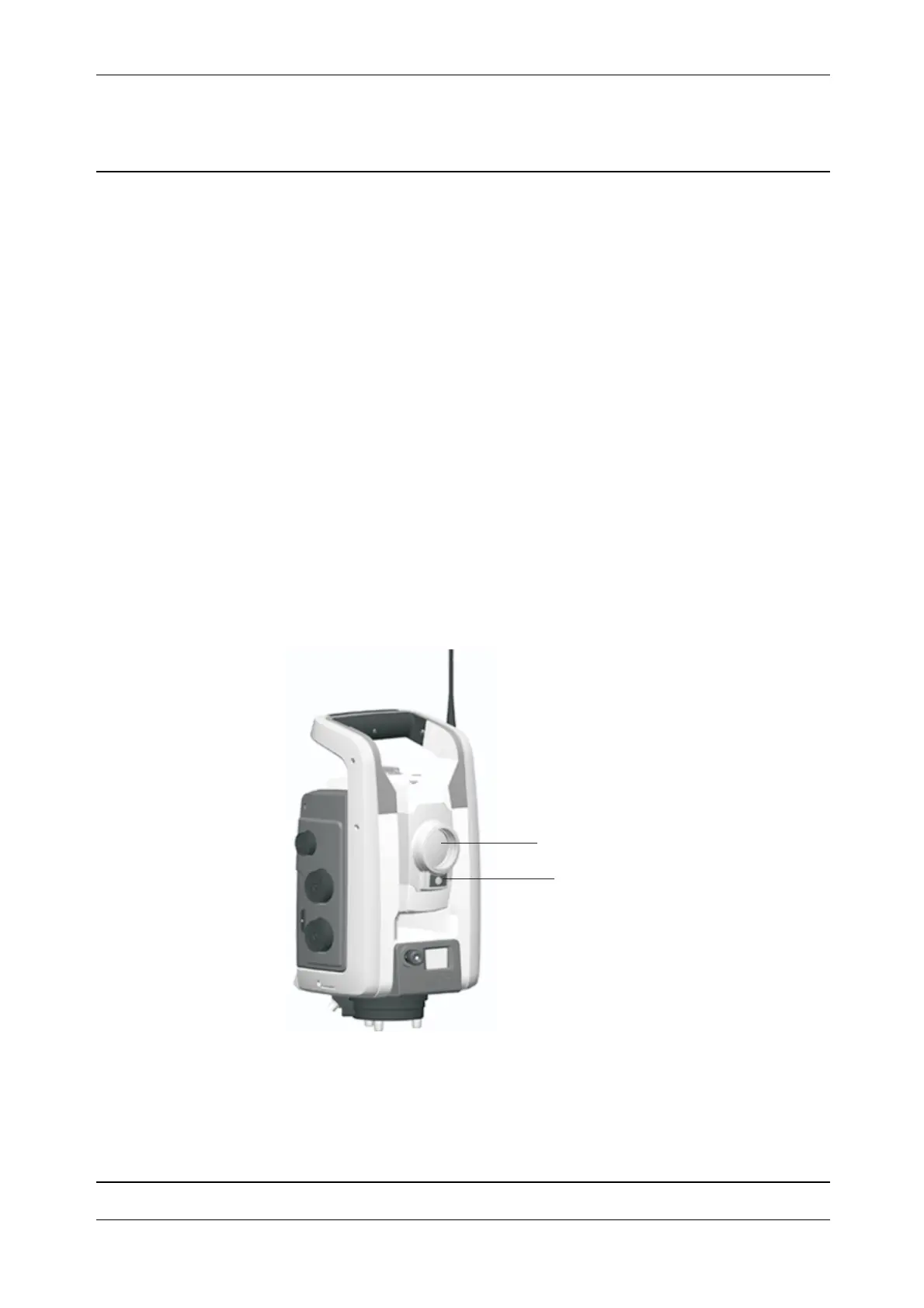

Fig. 1-26 Trimble S6 High Precision / S8 High Precision / SPS DR Standard / RTS DR Standard
The laser pointer warning label, see Figure 1-5 is located on top of the distance unit cover.
Distance
measurement
Autolock and
Laser pointer
aperture
Tracklight®
aperture
