Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 10 P/N 57150002, Revision 5.0
F
Battery/Radio side cover
• Battery/Radio side cover replacement
• Battery lid replacement
• Radio replacement
• BRC board replacement
Tools and equipment
Battery/Radio side cover replacement
Performance
Description Part number
Torque wrench 120 Ncm T71600280
Torx T10, T8 & T6 bit Local tool
Item Performance Action Results Notes
1 Replace battery/radio
side cover.
A. Remove the three
screws and the cable.
B. Replace cover and
connect cable.
C. Mount the three screws
incl. washers.
35 Ncm. Use a torque wrench
with a torx T10 bit.

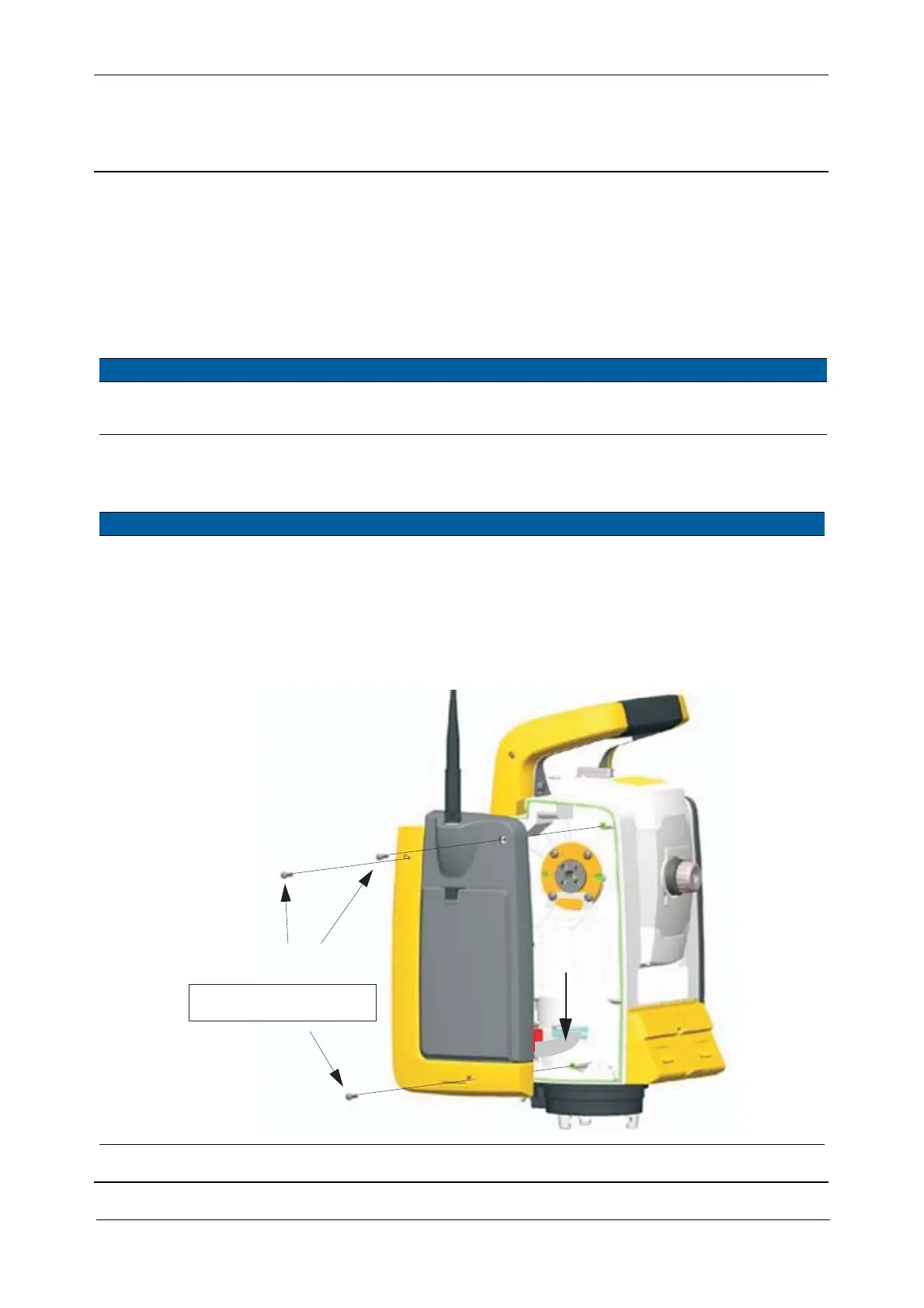

Fig. 5-13 Battery/Radio cover removed
Cable
35 Ncm / 3.1 lbfin
A&C
