Trimble S - Replacement of Reticle illumination in EDM High Precision; DR Standard; DR

Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 85 Trimble S, VX, SPS & RTS Service Manual
F
Replacement of Reticle illumination in EDM High Precision / DR Standard / DR
Performance

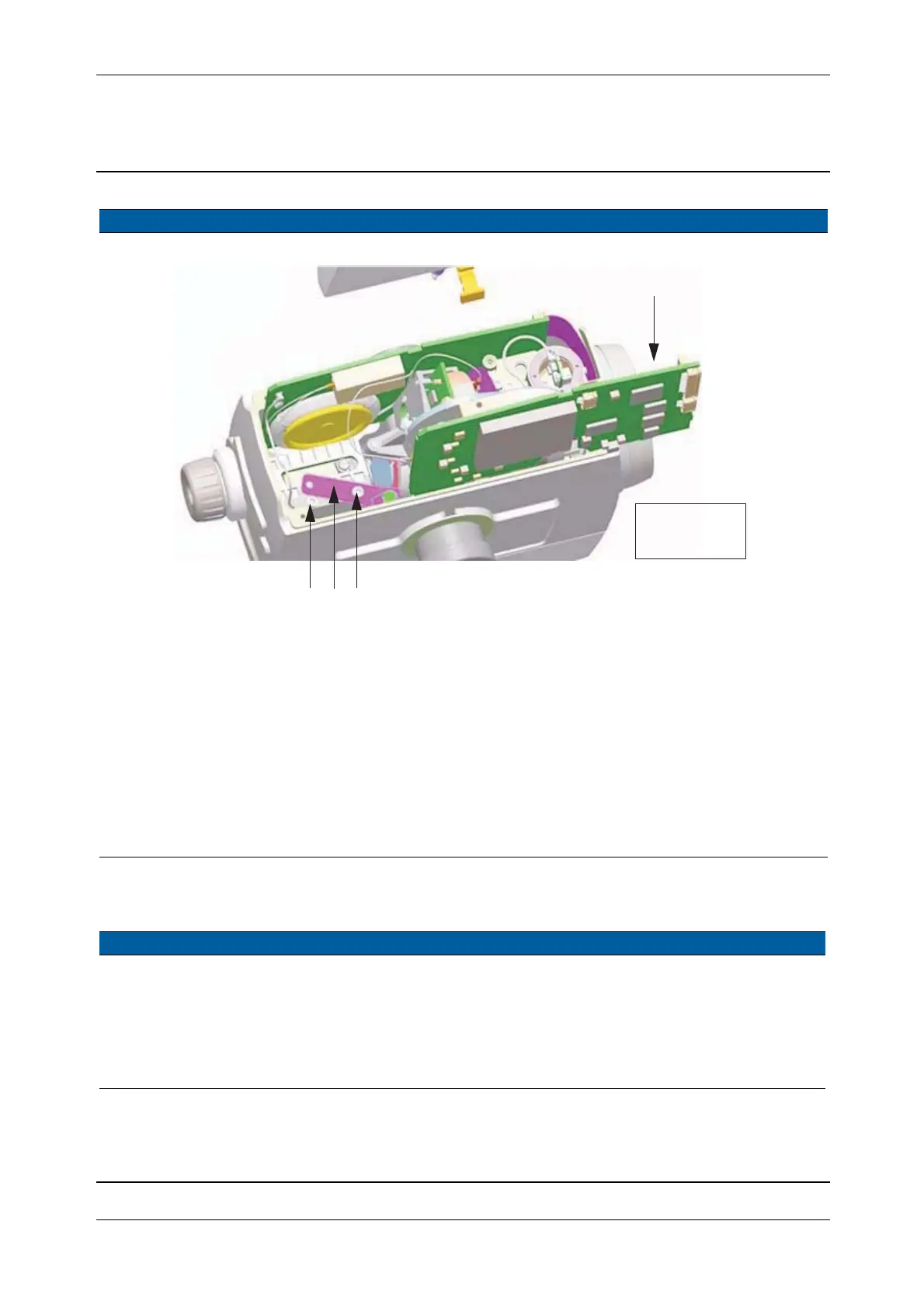

Fig. 5-82 Reticle Illumination Replacement
6 Assembly of new
reticle illumination.
Perform the steps in item
3 in reverse order.
7 Complete the
instrument after
replacement.
Connect the illumination
cable to the SFC board,
see Fig. 5-80 on page 5-
83
8 Mount distance and
tracker unit covers.
see page 5-3.
9 Check reticle
illumination function.
see page 6-49.
Item Performance Action Result Notes
1 Remove distance and
tracker unit cover.
see page 5-3. See safety
instructions chapter
1.
2 Preparation on tracker
side.
Disconnect the
illumination cable (A)
from the SFC board.
Item Performance Action Result Notes
B
CD
A
25 Ncm /
2.21 lbfin
