Trimble S - Face 1 Cover; Face 1 cover replacement

Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 23 Trimble S, VX, SPS & RTS Service Manual
F
Face 1 Cover
• Face 1 cover replacement
Tools and equipment
Face 1 cover replacement
Performance
Description Part number
Torque wrench 120 Ncm T71600280
Torx T10 bit Local tool
Item Performance Action Results Notes
1 Replace face 1 cover. A. Remove the two
screws.
B. Replace face 1 cover.
C. Mount face 1 cover and
screws.
35 Ncm. Use a torque wrench
with a torx T10 bit.
Note – When
mounting the face 1
cover make sure the
hooks are in correct
place.

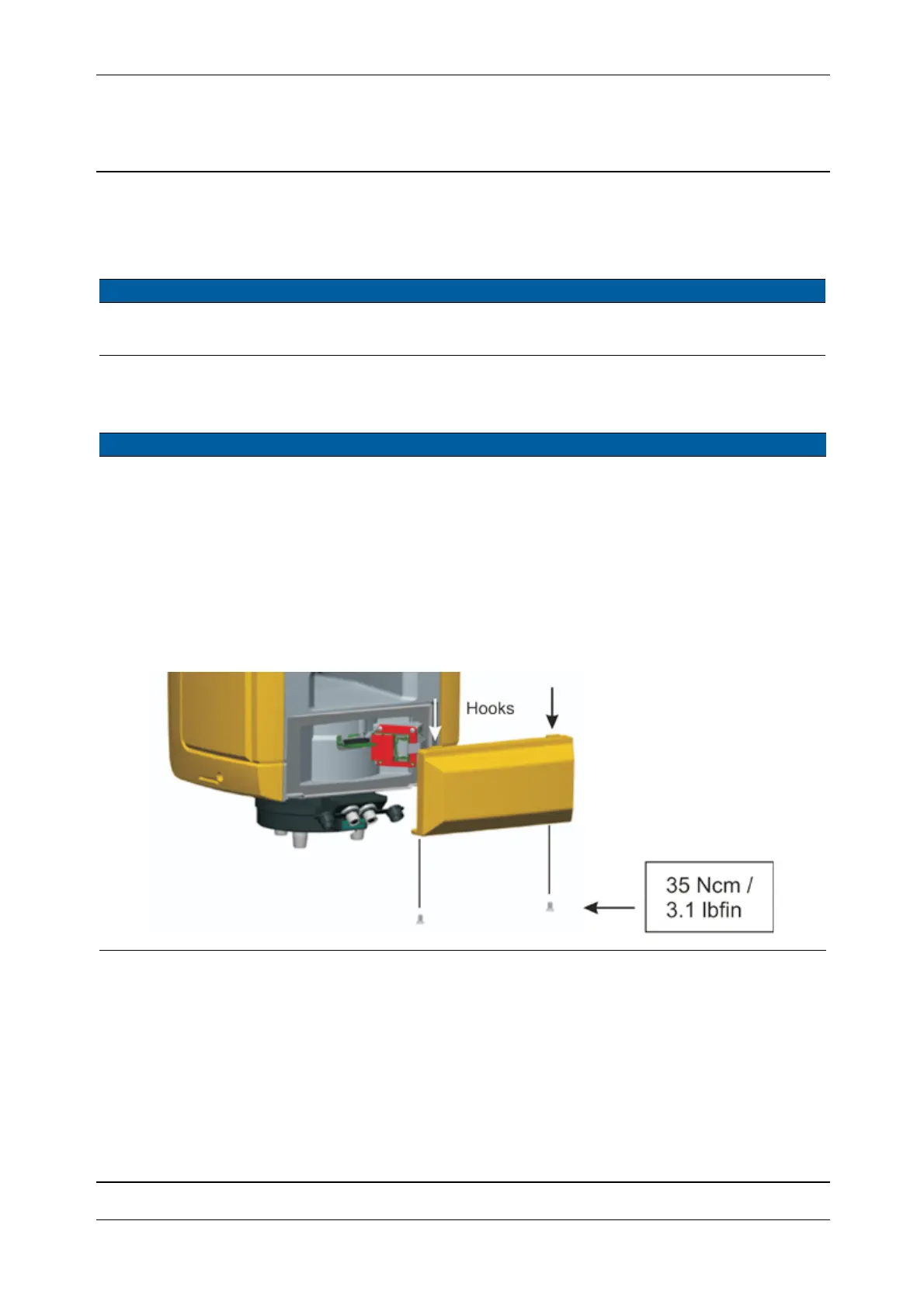

Fig. 5-22 Face 1 cover replacement
