Trimble S - Hirose connectors function; Service; Maintenance; Replacement of spare parts

Chapter 3
Theory of Operation
P/N 57150002, Revision 5.0 3 - 45 Trimble S, VX, SPS & RTS Service Manual
F
Hirose connectors function

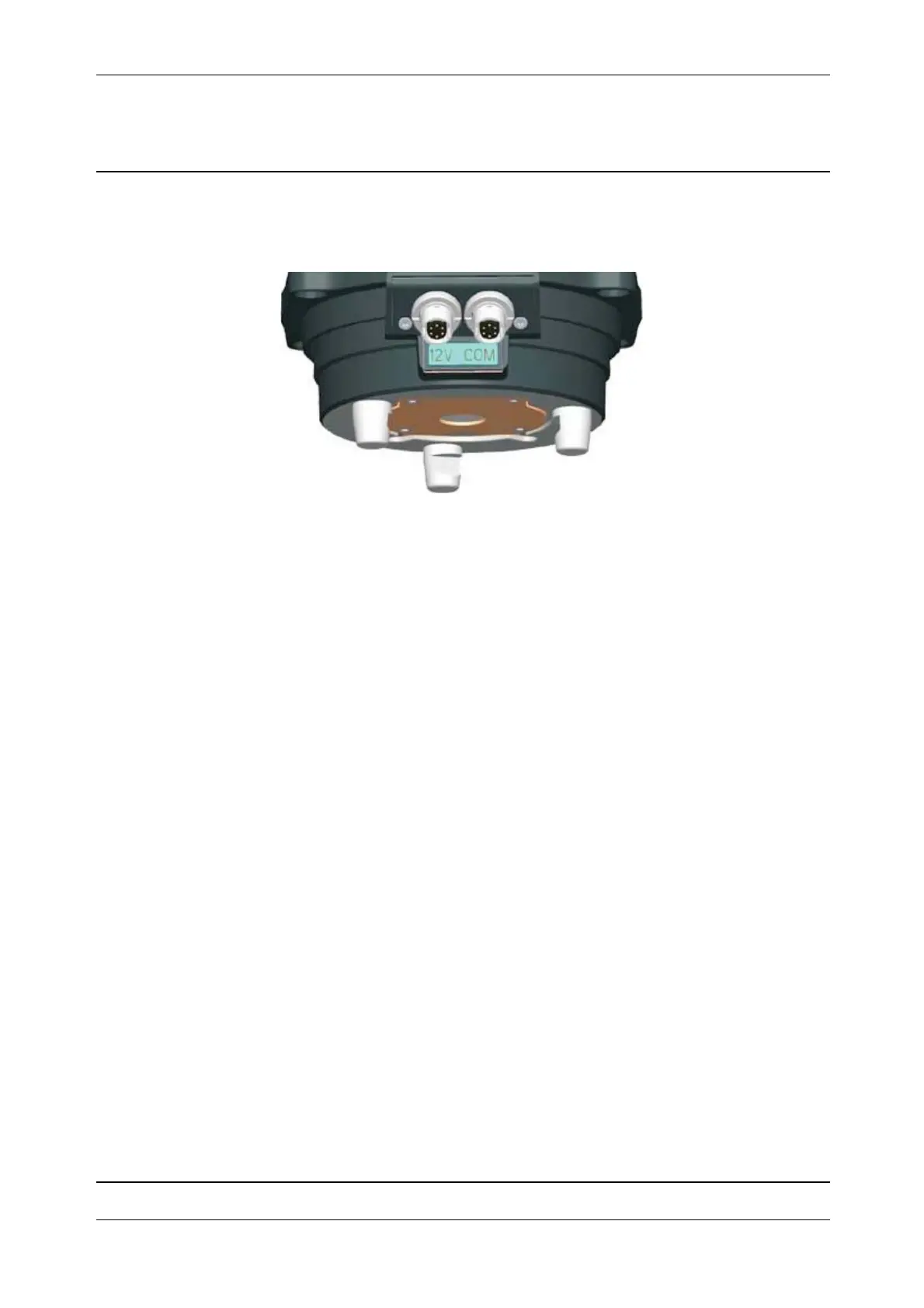

Fig. 3-44 Hirose connectors function
The right Hirose connector is the communication connector. The left Hirose connector is the power
connector but power can also be connected to the right Hirose connector.
Service
Maintenance
• Check of foot connectors (hirose test)
Replacement of spare parts
• Base unit complete
• FFB board incl. Hirose connectors
• Tube
• Lid
• Cable between FFB and SRC board
