Replacements of TPB transmitter board
C
Warning – Do not mount a DR PLUS TPB Board in a DR300+ distance unit as the laser class
might be exceeded
Performance
Replacements of PRB receiver board
Performance

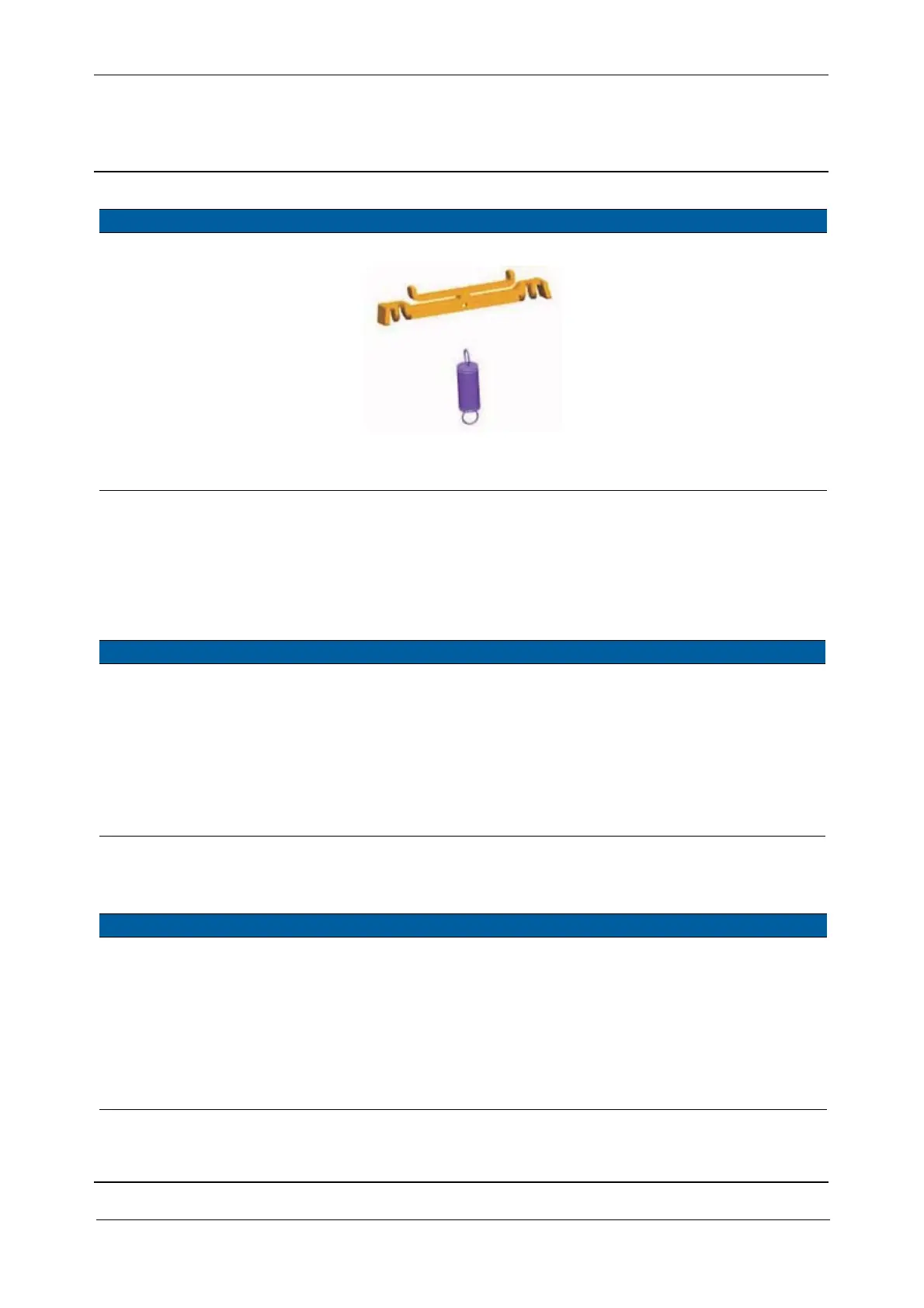

Fig. 5-78 Board holder and spring
15 Mount distance and
tracker unit cover.
See page 5-3.
Item Performance Action Results Notes
1 Replacement of
transmitter board.
To remove the TPB
board follow
instructions Distance
unit parts replacement
on page 5-72.
To mount the TPB board
proceed after item 9, see
Fig. 5-71 on page 5-75 .
Item Performance Action Results Notes
1 Replacement of
receiver board
To remove the PRB
board follow
instructions Distance
unit parts replacement
on page 5-72.
To mount the TFB board
proceed after item 9, see
Fig. 5-71 on page 5-75 .
