Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 79 Trimble S, VX, SPS & RTS Service Manual
F

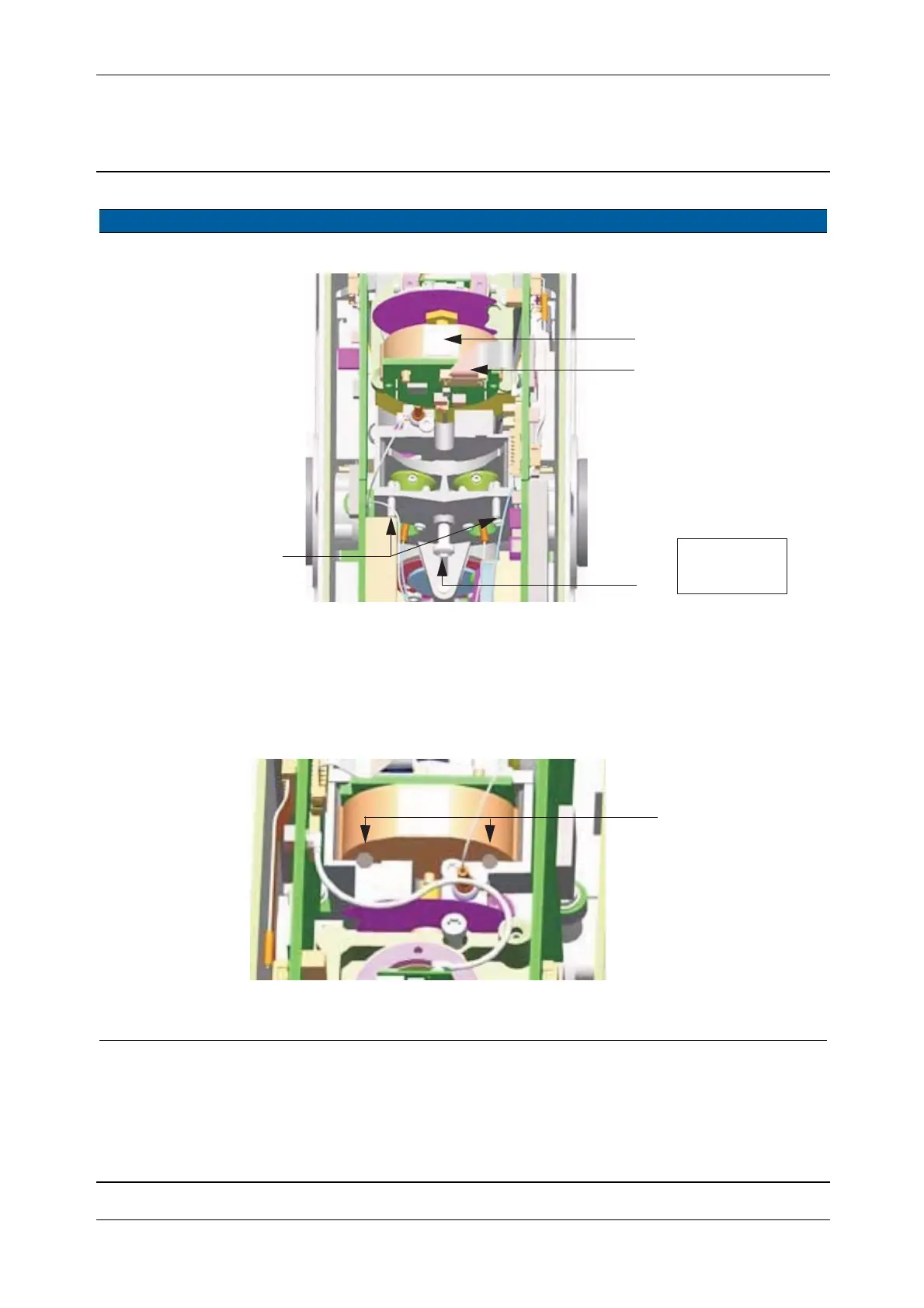

Fig. 5-76 Insertion of the Greywedge assembly
13 Fixation of greywedge
motor housing, version
1 (glued).
Apply carefully one
drop of glue Nr. 36 on
each site of the motor
(A), see Fig. 5-77 on
page 5-79
Glue Nr.36-260101-
5630.902.
The drop of glue
should be about 3 mm
diameter.
Fig. 5-77 Positions of glue application
14 Mount board holder. Mount the Board holder
and spring.
Item Performance Action Result Notes
A
D
C
B
Just touch the
Bottom
Just touch the
Bottom
5Ncm/
0.44 lbfin
A
