Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 78 P/N 57150002, Revision 5.0
F

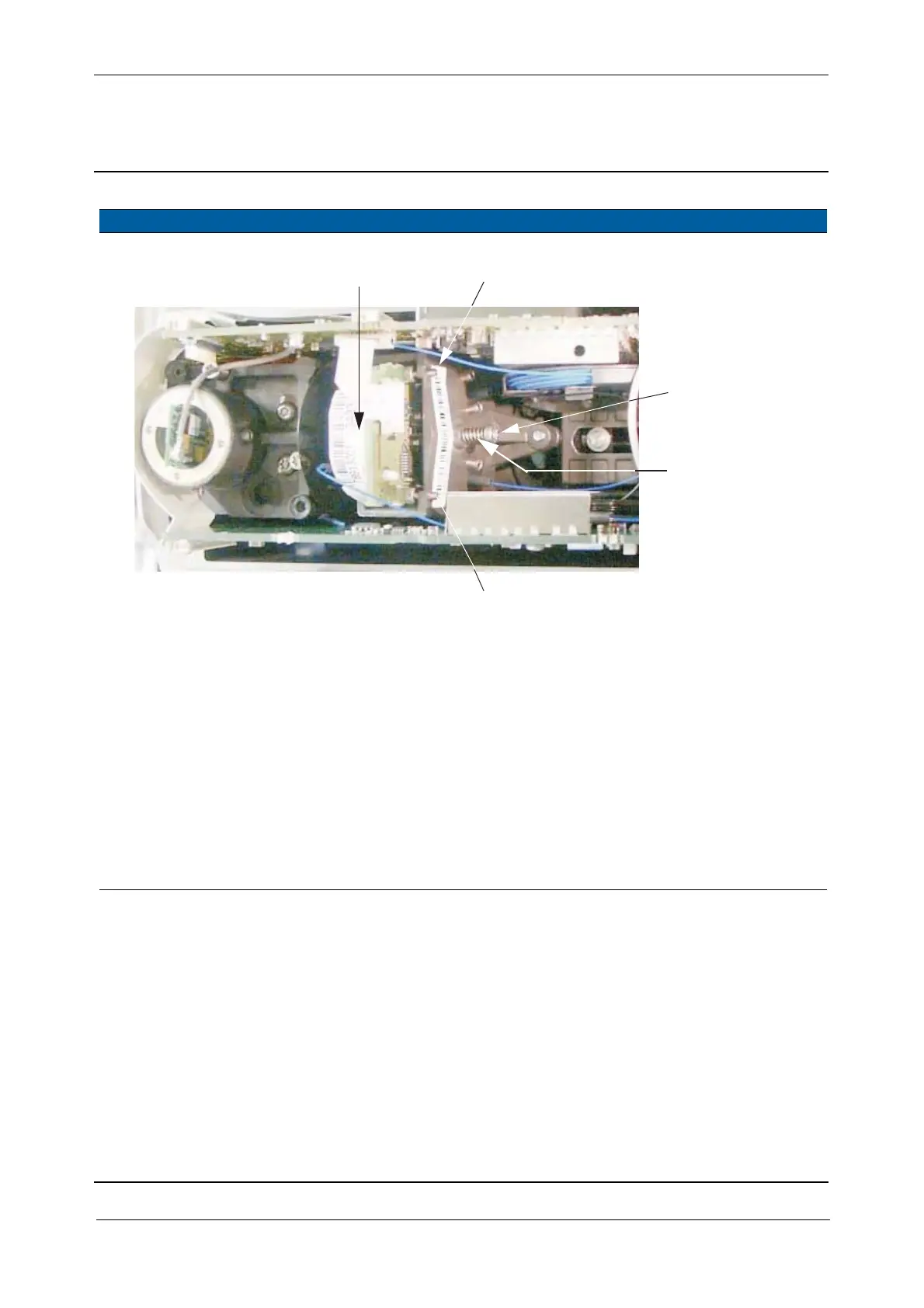

Fig. 5-75 Insertion of the greywedge (version2)
12 Mount greywedge
assembly, version 1
(glued).
A. Put in the greywedge
assembly.
B. Screw in the centre
screw until
resistance from the
bottom can be felt
C. Tighten the side
screws to fix the
assembly against
turning, lock with
Glue MS 1855.
D. Connect the cable.
see Fig. 5-70 on page 5-
74 .
Centre screw:
5 Ncm.
Item Performance Action Result Notes
B
C
C
Spring
A
Just touch the
Bottom
