Trimble S User Manual

Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 77 Trimble S, VX, SPS & RTS Service Manual
F

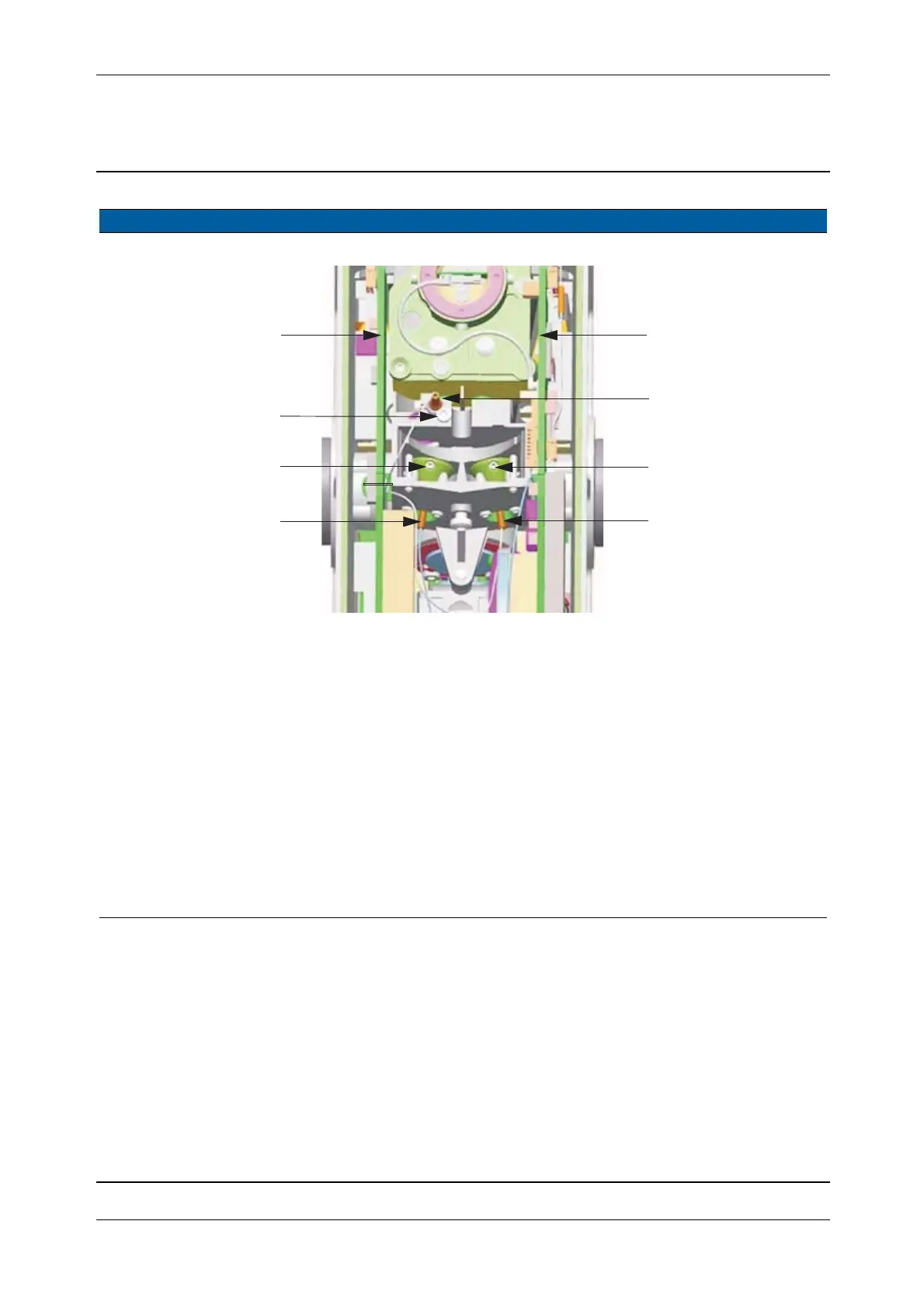

Fig. 5-74 Position of reference fibre
10 Perform optical
alignment.
See page 6-60.
11 Mount greywedge
assembly, version 2
(screw version).
For version 1 (glued)
see next item
A. Put in the greywedge
assembly.
B. Fit the spring under
the centre screw and
turn it in until
resistance from the
bottom can be felt
C. Insert the two side
screws to fix the
assembly against
turning, fix them
with Glue MS 1855
D. Connect the cable.
Item Performance Action Result Notes
B
C
D
F
G
E
H
H
