Trimble S User Manual

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 76 P/N 57150002, Revision 5.0
F

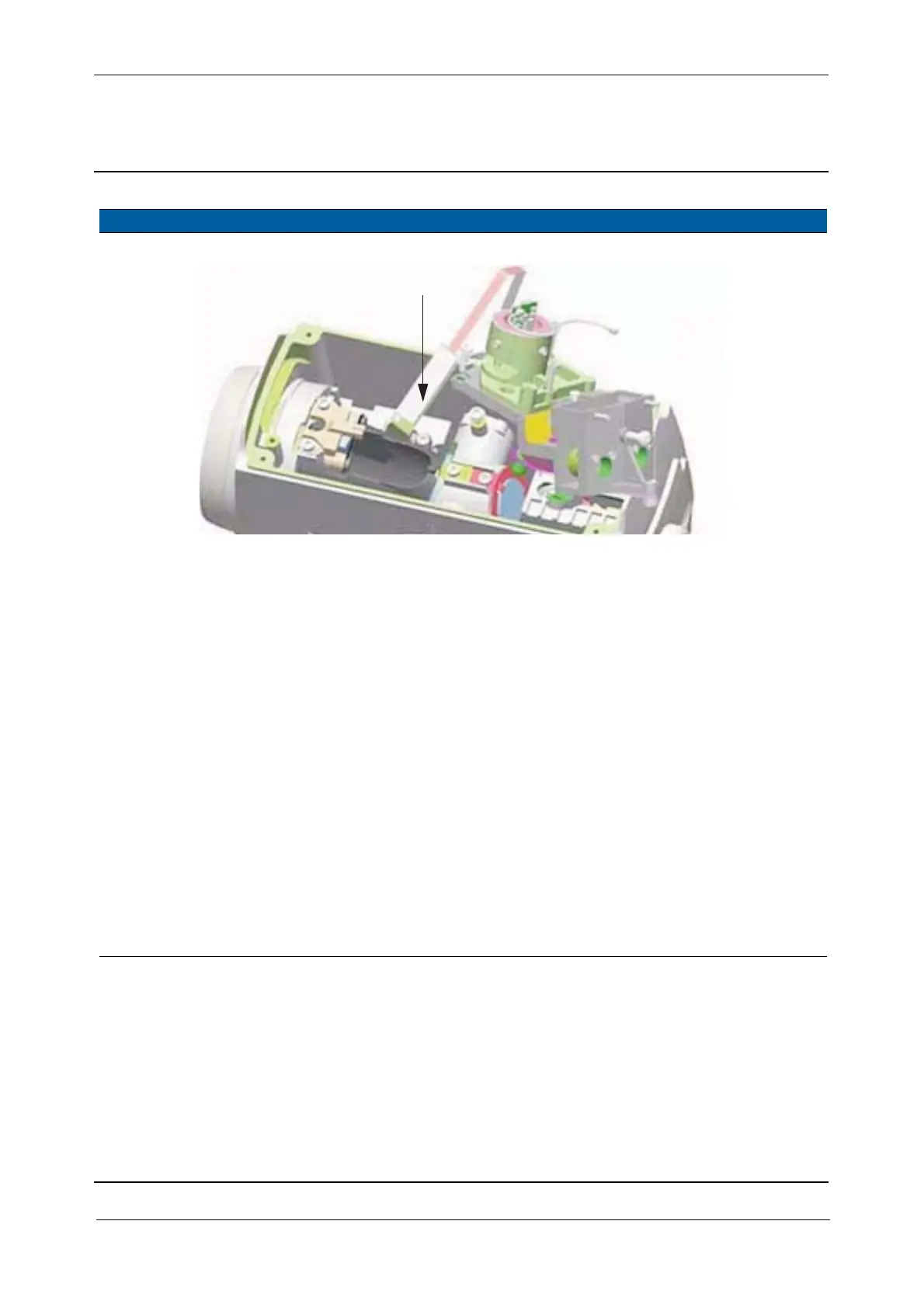

Fig. 5-73 Removal and Insertion of Tracker transmitter board
8 Mount tracker
transmitter board
Turn the centre unit in
second face.
A. Mount the tracker
transmitter board
with screw and
spacer, see Fig. 5-73
on page 5-76
B. Mount tracker unit
cover, See page 5-3.
25 Ncm. Be aware of the
spacer.
9 Mount PRB board with
fibres and TPB board
with fibre.
A. Turn center unit in
first face.
B. Mount the receiver
board.
C. Reference ferule.
D. Receiver ferule.
E. Clamp the ferule.
F. Mount the
transmitter board.
G. Transmitter ferule.
H. Clamp the ferules.
Item Performance Action Result Notes
