Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 75 Trimble S, VX, SPS & RTS Service Manual
F

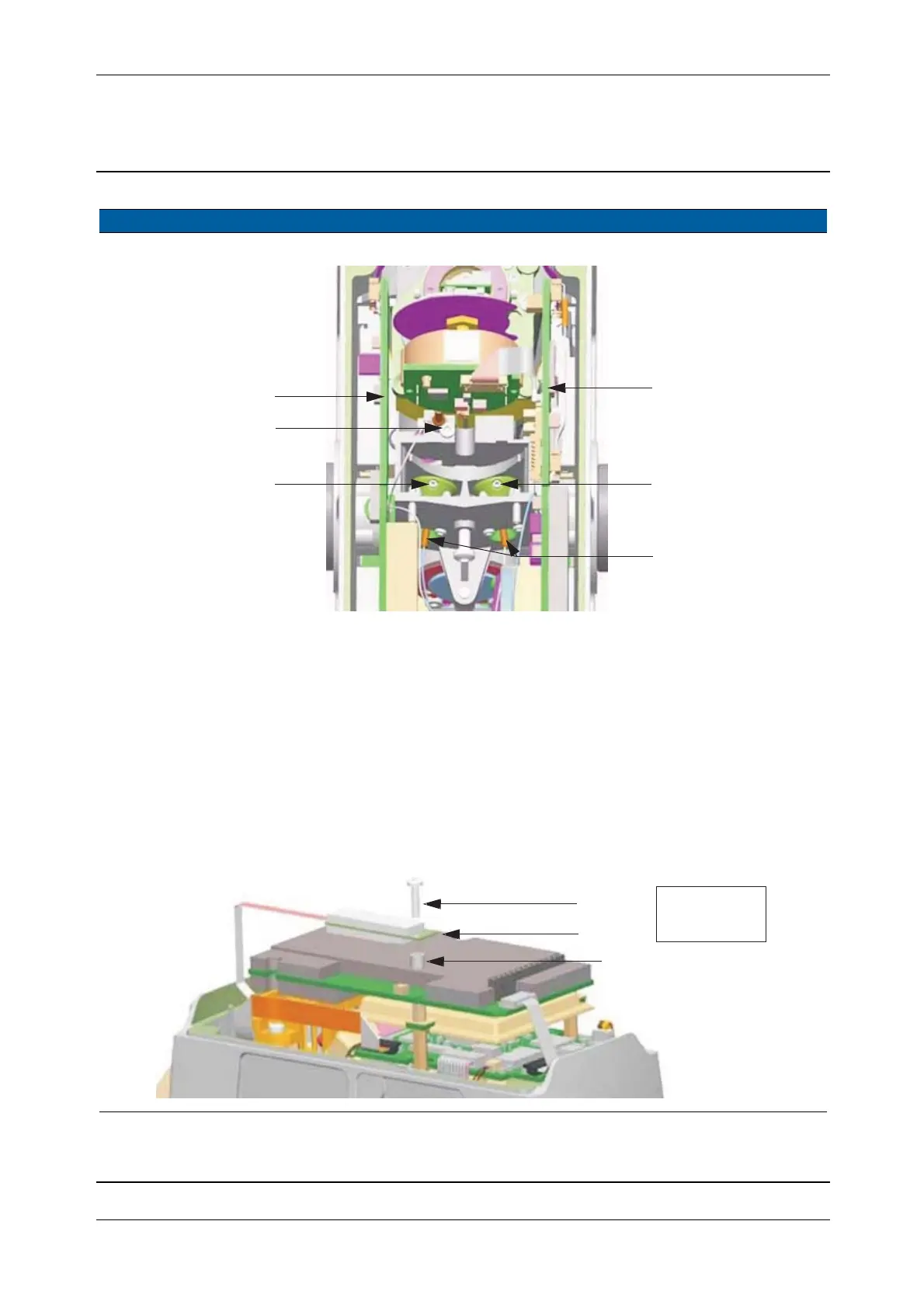

Fig. 5-71 Disconnect transmitter and receiver fibres
6 Remove tracker unit
cover.
A. Turn center unit in
second face.
B. Remove tracker unit
cover, See page 5-3.
7 Remove tracker
transmitter board.
A. Remove the screw.
B. Remove the tracker
transmitter board and
spacer.
C. Thread the tracker
transmitter through
the gap.
Be aware of the
spacer.
Fig. 5-72 Tracker transmitter board
Item Performance Action Result Notes
A
B
C
C
A
A
A
B
C
25 Ncm /
2.21 lbfin
