Trimble S - Servo Side Cover

Chapter 8
Replacement Parts & Tooling
P/N 57150002, Revision 5.0 8 - 7 Trimble S, VX, SPS & RTS Service Manual
F
Servo Side Cover

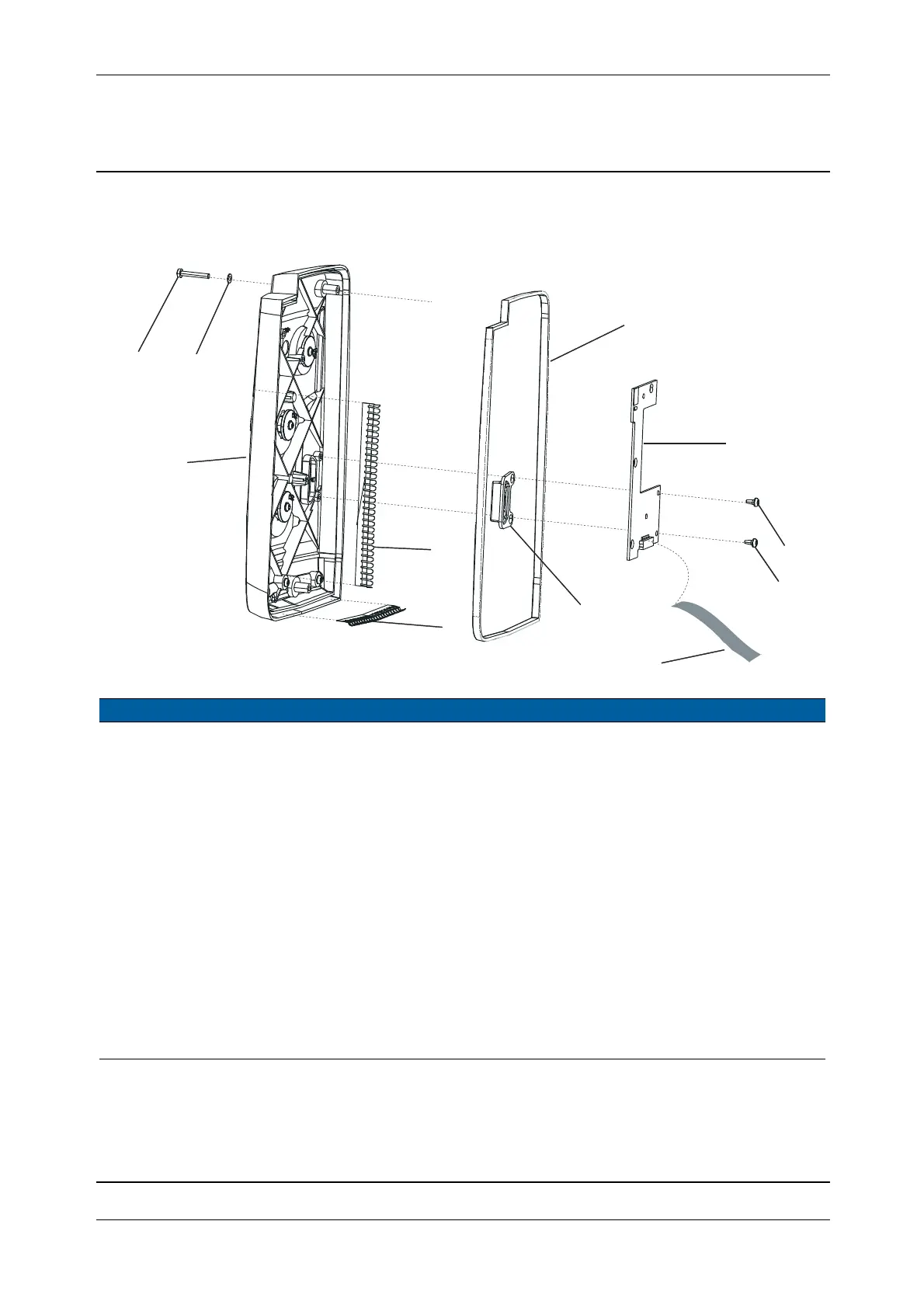

Servo side cover
Item Description Part number Qty
1 Package screw M3 x 20 A2-70, 20p 59000174 3
2 Package washer plain 3,1 x 1 x 0,5 - PA, 20p 59568001 3
3 Side cover servo complete - RoHS 59077019 1
3 Side cover servo dark grey complete 59014025 1
3 Side cover servo SPS/RTS complete 59077012 1
4 Package spring flat side cover, 5p See item 7 1
5 Package spring flat side cover short, 5p See item 7 1
6 Package button power and measure, 5p 59076001 1
7 Package gasket conductive side covers, 10p replaces old gasket +
spring (item 4 & 5)
59008025 1
8 Board KNB - RoHS 59036019 1
9 Package screw STS T 30 x 6 KN 1039 A2-70 59000184 4
10 Package cable IPC - KNB, 5p 59179001 1
1
2
3
4
5
6
7
8
9
9
10
