Chapter 1
General Information and safety
P/N 57150002, Revision 5.0 1 - 17 Trimble S, VX, SPS & RTS Service Manual
F
The instrument contains visible and invisible laser sources:
• A laser diode for the distance measuring function operating at 905 nm (infrared, non-visible
light), with a beam divergence of 0.4 x 0.8 mrad and an output power of <1.1 mW, LASER
CLASS 1.
• A laser diode for laser pointer function operating at 630 - 680 nm (visible light), with a beam
divergence of 0.3 mrad and an output power of <0.7 mW, while the emission is coaxial with the
telescope. This mode operates in LASER CLASS 2.
• As an option, an Autolock laser diode operates at 785 nm (infrared, non-visible light), with a
beam divergence of 38.5 mrad and an out put power of <0.35 mW, while the emission is coaxial
with the telescope. This mode operates in LASER CLASS 1.
When operating in prism mode with Autolock and/or distance measurement the accessible radiation
does not exceed the limits of LASER CLASS 1.
Laser and LED Information Trimble S6 DR PLUS / S8 DR PLUS / VX DR PLUS /
SPS DR PLUS / RTS DR PLUS
The Trimble S6 DR PLUS / S8 DR PLUS / VX DR PLUS/ SPS DR PLUS/ RTS DR PLUS has been
tested and complies with the regulations for a Class 1 and Class 2 Laser product.

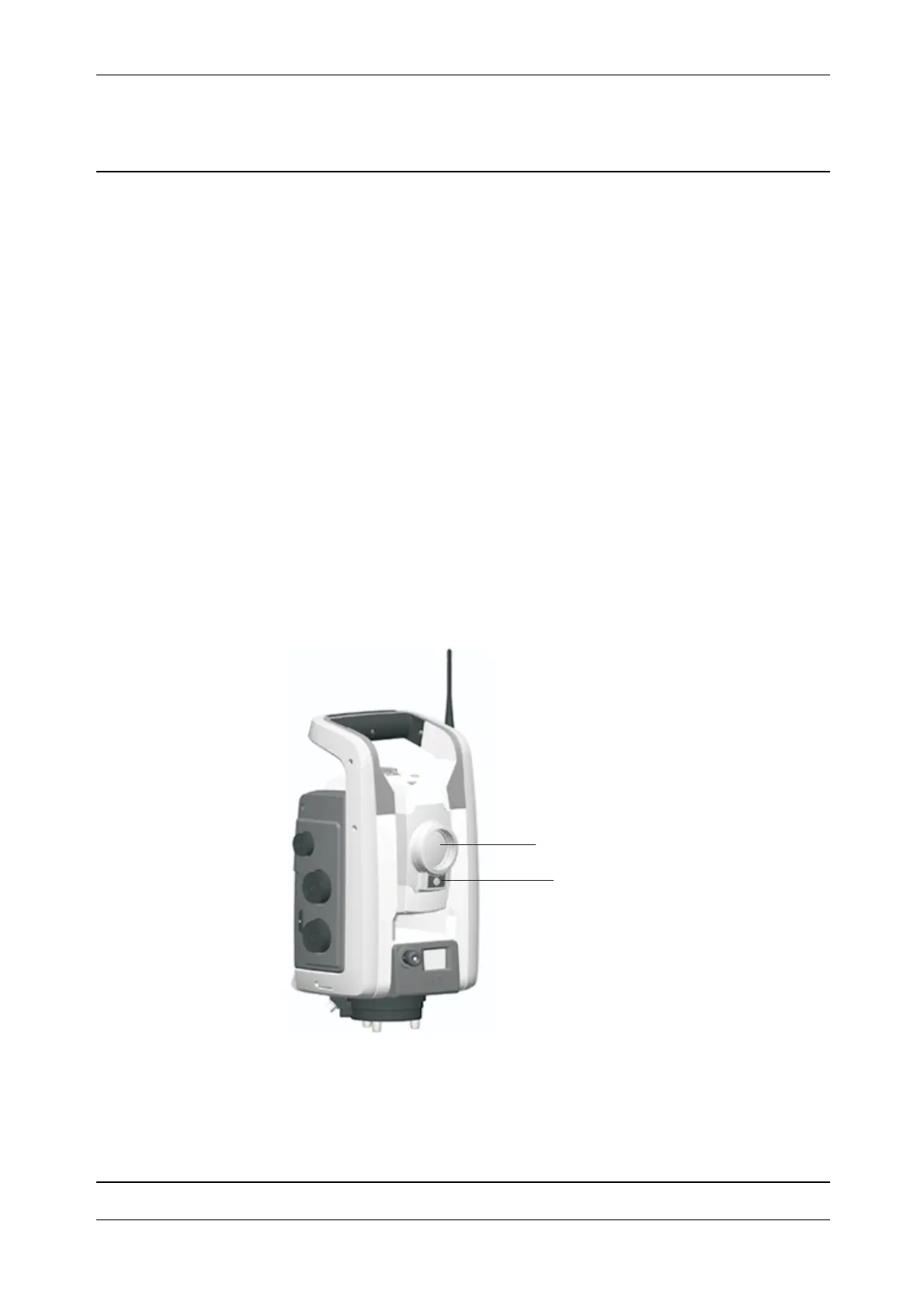

Fig. 1-19 Trimble S6 DR PLUS
Distance
measurement
Autolock and
Laser pointer
aperture
Tracklight®
aperture
