Chapter 8
Replacement Parts & Tooling
P/N 57150002, Revision 5.0 8 - 5 Trimble S, VX, SPS & RTS Service Manual
F

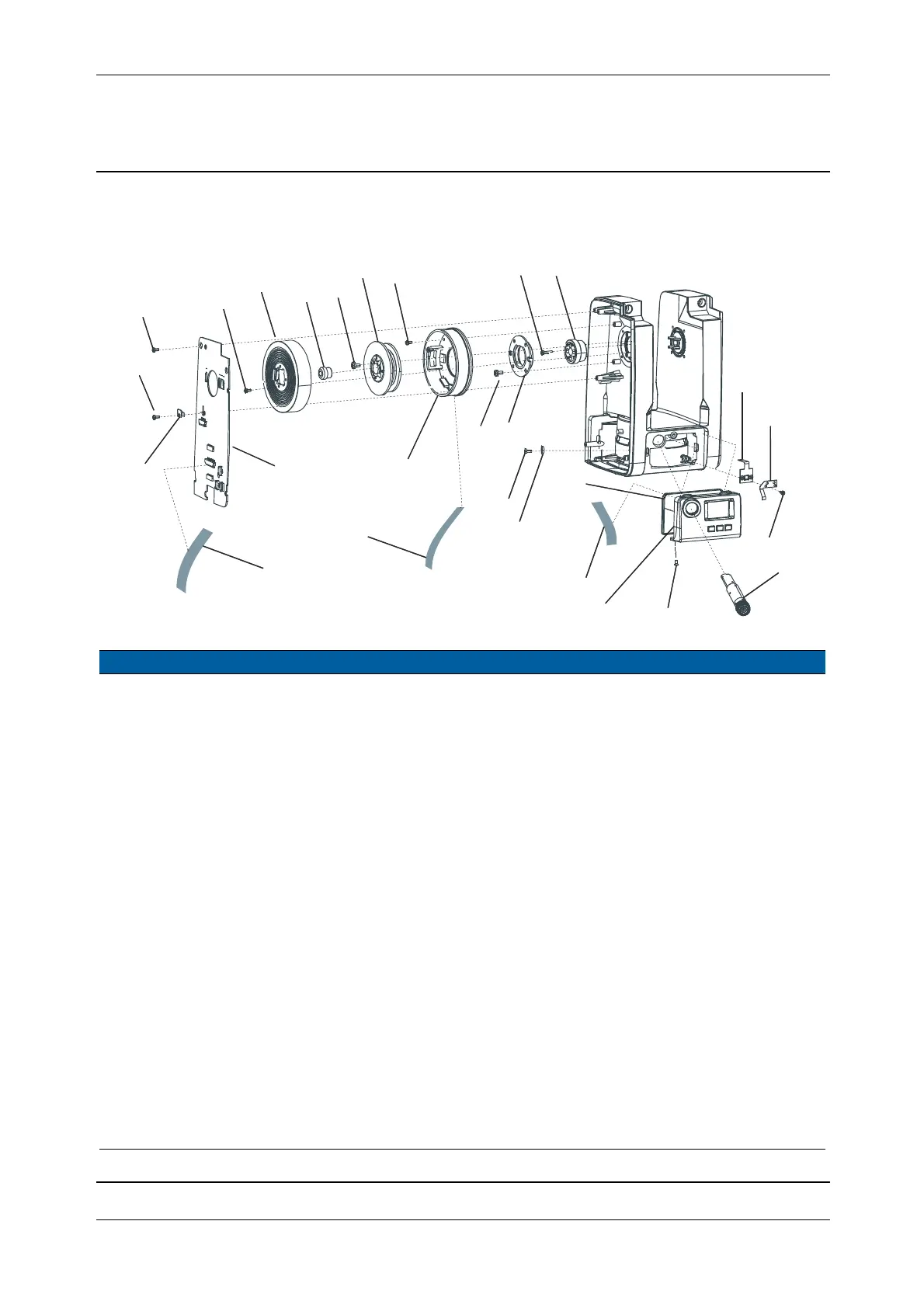

Alidade Right
Alidade right
Item Description Part number Qty
1 Spring contact KNB 59053002 1
2 Package screw M3 x 6 A2-70, 20p 59000171 5
3 Board IPC2 59083025 1
4 Cable IPC - PSM, 5p 59109002 1
5 Package screw M3 x 6 A2-70, 20p 59000171 3
6 Board SRC incl. magnets - RoHS 59016019 1
7 Telescope preload unit 59119002 1
8 Package screw M4 x 8 A2-70, 20p 59000175 4
9 Angle disc vertical 59108001 1
10 Package screw M3 x 6 A2-70, 20p 59000171 4
11 Board MSB incl. winding - RoHS 59118019 1
12 Cable IPC - MSB, 5p 59104002 1
13 Package screw M4 x 8 A2-70, 20p 59000175 4
14 Bearing for v-axle NA 1
15 Package screw M3 x 6 A2-70, 20p 59000171 1
16 Package washer optical plummet, 5p 59131001 1
17 Package screw M4 x 8 A2-70 59000175 4
18 V-axle, angle side NA 1
3
4
5
6
7
8
9
10
11
2
2
1
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
