Chapter 4
Troubleshooting
Trimble S6, S8, VX, SPS & RTS Service Manual4 - 10 P/N 57150002, Revision 4.0
F
Distance and Angles Logging
The Distance and Angles Logging software is selecting baselines from the baseline editor.
To do this:
1. Start PASS.
2. Select
Product Family.
3. Select
Product Line.
4. Select
Model.
5. select
Analyze and run Distance and Angles Logging
6. select Target set-up check box set-up logging function.

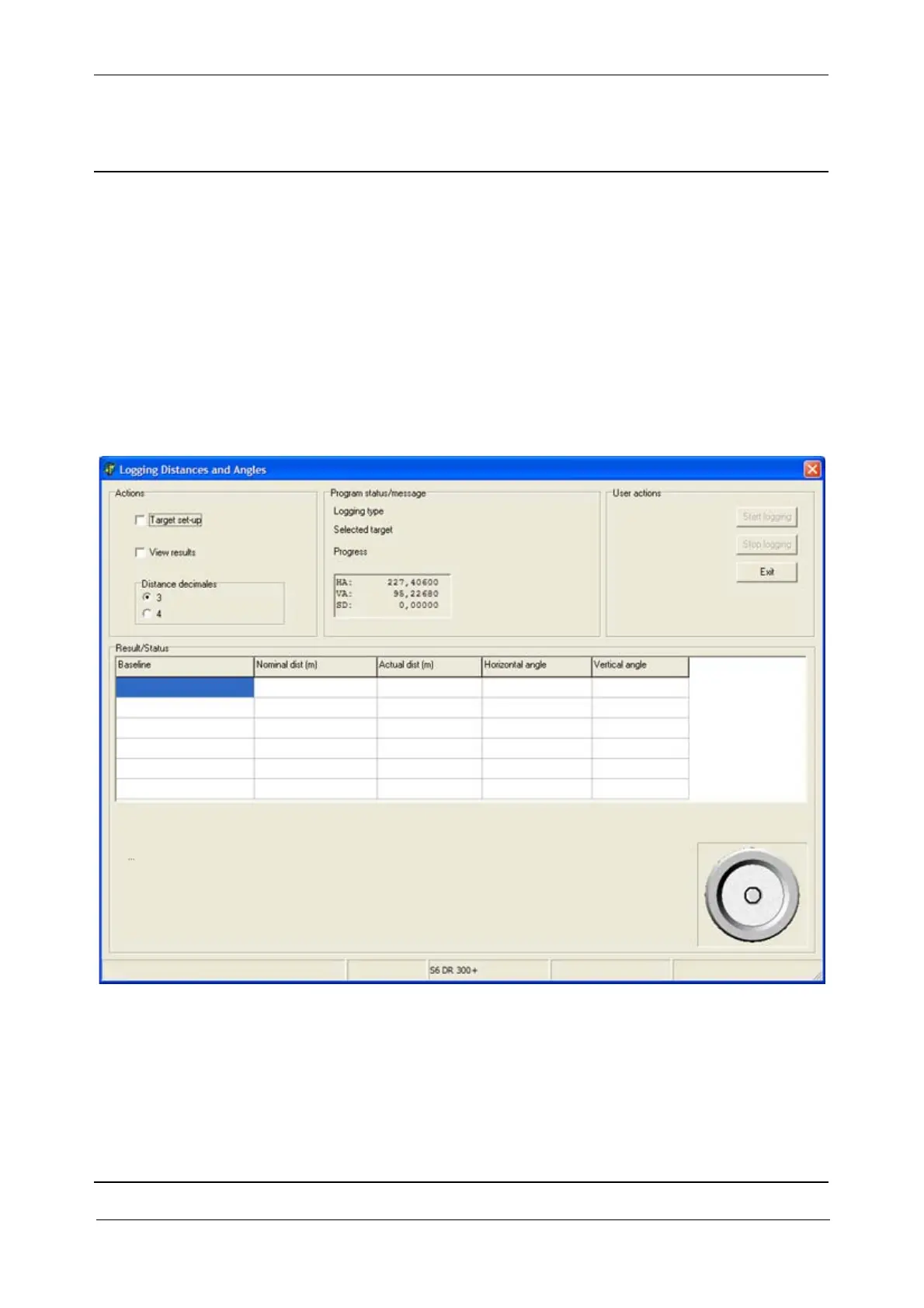

Fig. 4-12 Distance and Angles Logging main menu
Actions window:
•
Target set-up - check box for setting up the distance and angles logging.
•
View results - check box to see earlier logging results
• Distance decimal - select 3 or 4 decimals.
