Chapter 4
Troubleshooting
P/N 57150002, Revision 4.0 4 - 9 Trimble S6, S8, VX, SPS & RTS Service Manual
F

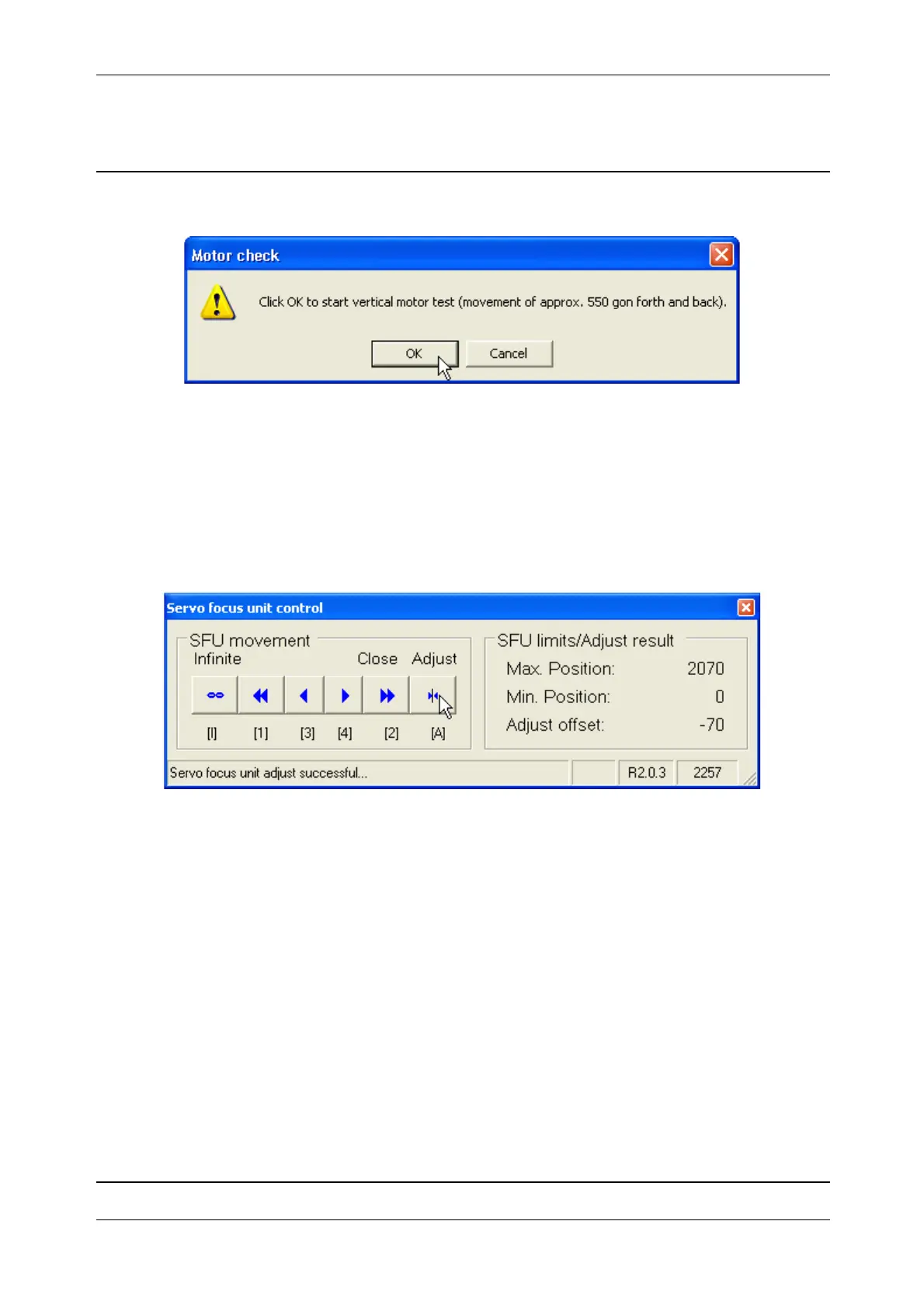

Fig. 4-10 Check vertical motor
The instrument turns round forth and back in single steps 550 gon.
Troubleshooting:
If there are no results or an error message appears, go further with troubleshooting guide in the
Service manual.
Check servo focus: click
Start button. Press Adjust and do further test by moving the servo focus from
short to infinite position in single or multiple steps.
Fig. 4-11 Check servo focus
Troubleshooting:
If there are no results or an error message appears, go further with troubleshooting guide in the
Service manual.
