Chapter 4
Troubleshooting
Trimble S6, S8, VX, SPS & RTS Service Manual4 - 8 P/N 57150002, Revision 4.0
F

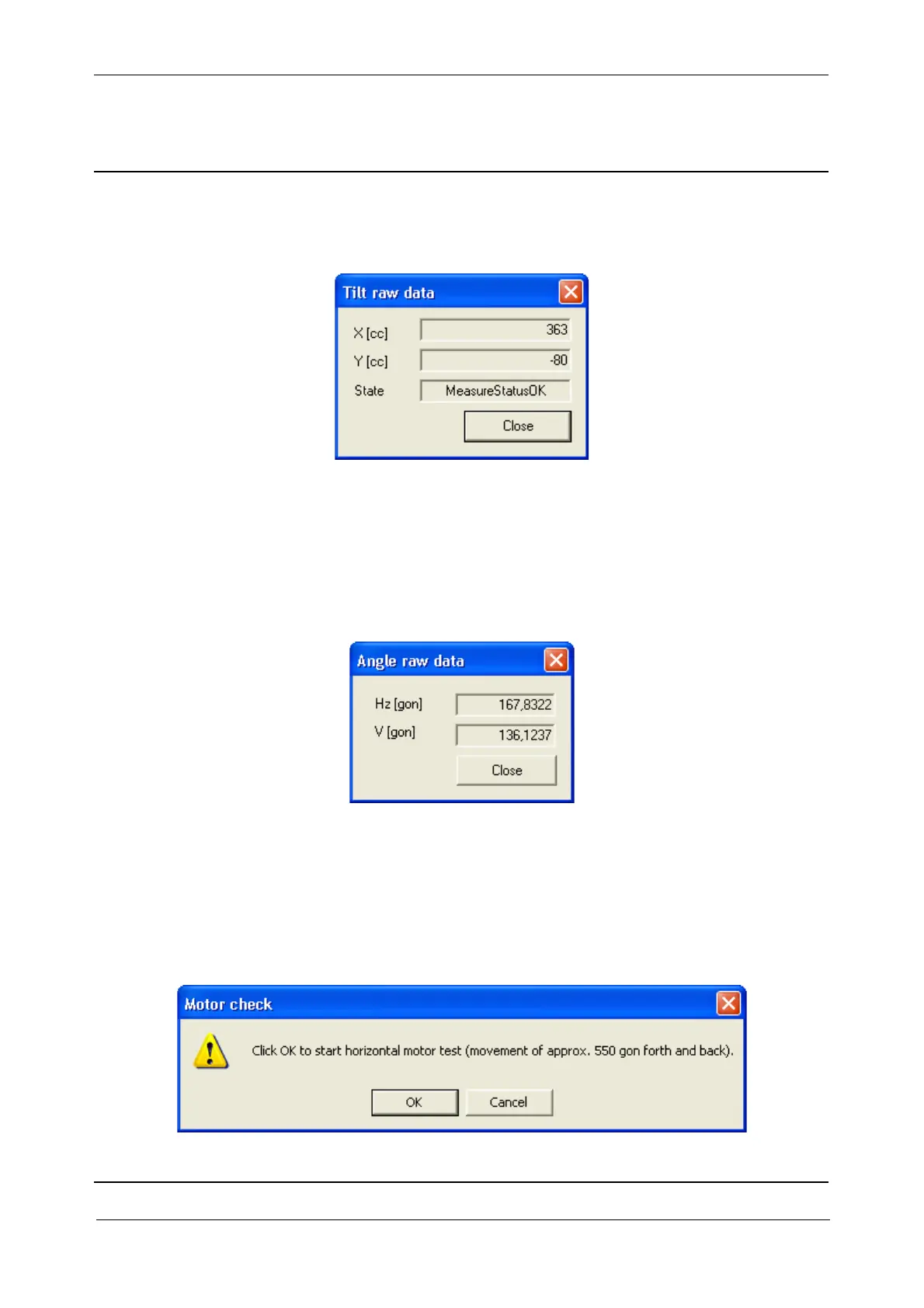

Check tilt: click Start button to get raw tilt data without corrections.
Fig. 4-7 Check tilt sensor
Troubleshooting:
If there are no results or an error message appears, go further with troubleshooting guide in the
Service manual.
Check angle measurement system: click
Start button to get the raw angle data without corrections.
Click
Close button to finnish the test and the instrument will be restarted.
Fig. 4-8 Check angle measurement system
Troubleshooting:
If there are no results or an error message appears, go further with troubleshooting guide in the
Service manual.
Check servo system: click
Start button. The servo will be checked in sequence horizontal and vertical
system. Press
OK to start the motor test.
Fig. 4-9 Check horizontal motor
