Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 86 P/N 57150002, Revision 5.0
F

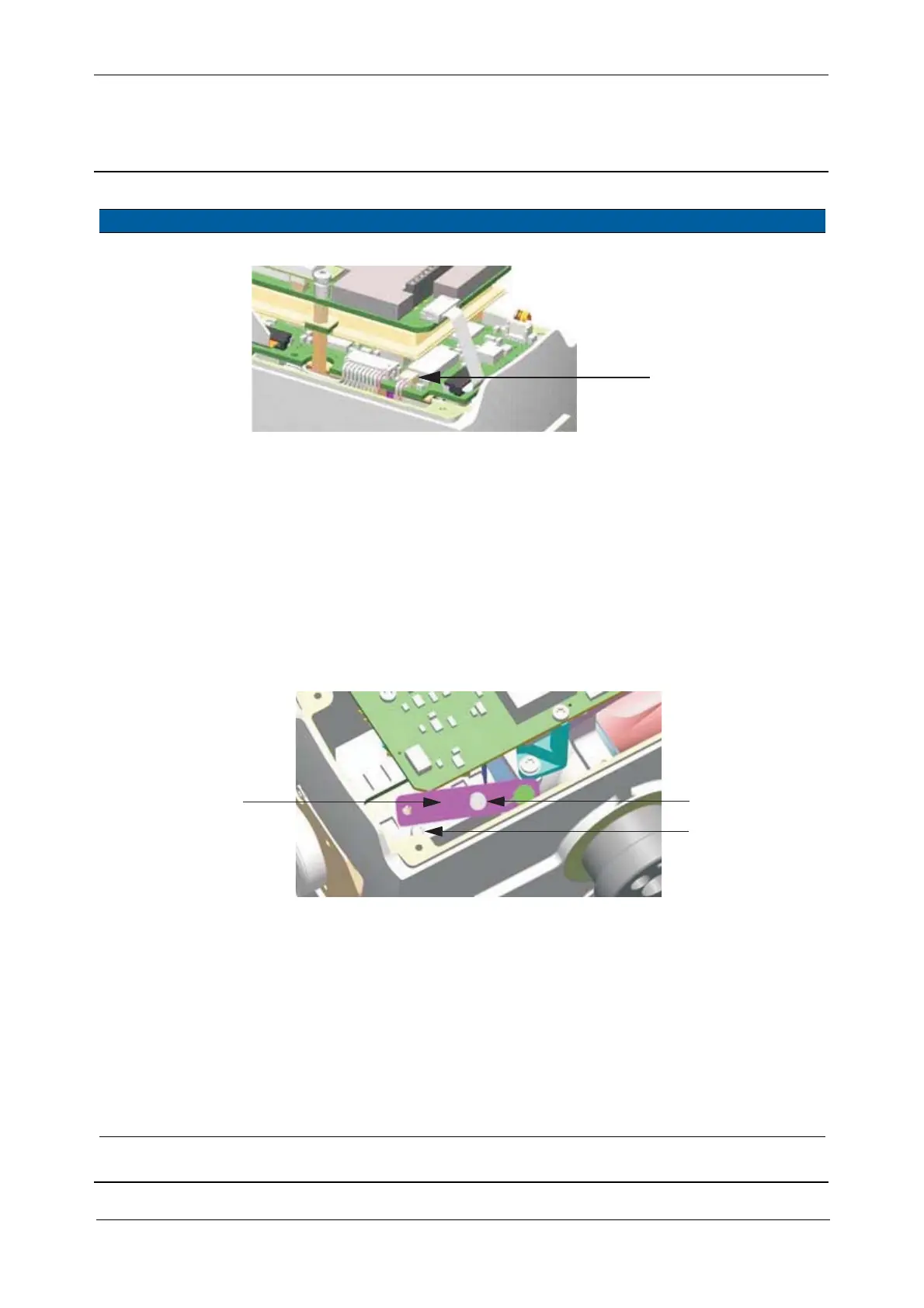

Fig. 5-83 Illumination cable connection to the SFC board
3 Remove reticle
illumination.
A. Loose one fixing
screw slightly and
remove the other one.
B. Turn the diode holder
to free the screw hole.
C. Mount back fixing
screw.
D. Replace the diode
holder with screw.
Avoid to remove
both fixing screws in
the same time.
The little guide bar
underneath would
fall down. A
complete removal of
the servo focus
would become
necessary.
Fig. 5-84 Diode holder
4 Assembly of new
reticle illumination.
Perform the steps in item
3 in reverse order.
5 Complete the
instrument after
replacement.
Connect the illumination
cable to the SFC board,
see Fig. 5-83 on page 5-
86
6 Mount distance and
tracker unit covers.
see page 5-3.
7 Check reticle
illumination function.
see page 6-49.
Item Performance Action Result Notes
A
B
C
A&D
(Diode holder)
