Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 37 Trimble S, VX, SPS & RTS Service Manual
F
4 Remove loudspeaker Unscrew the screw
holding the bracket and
remove the
loudspeaker

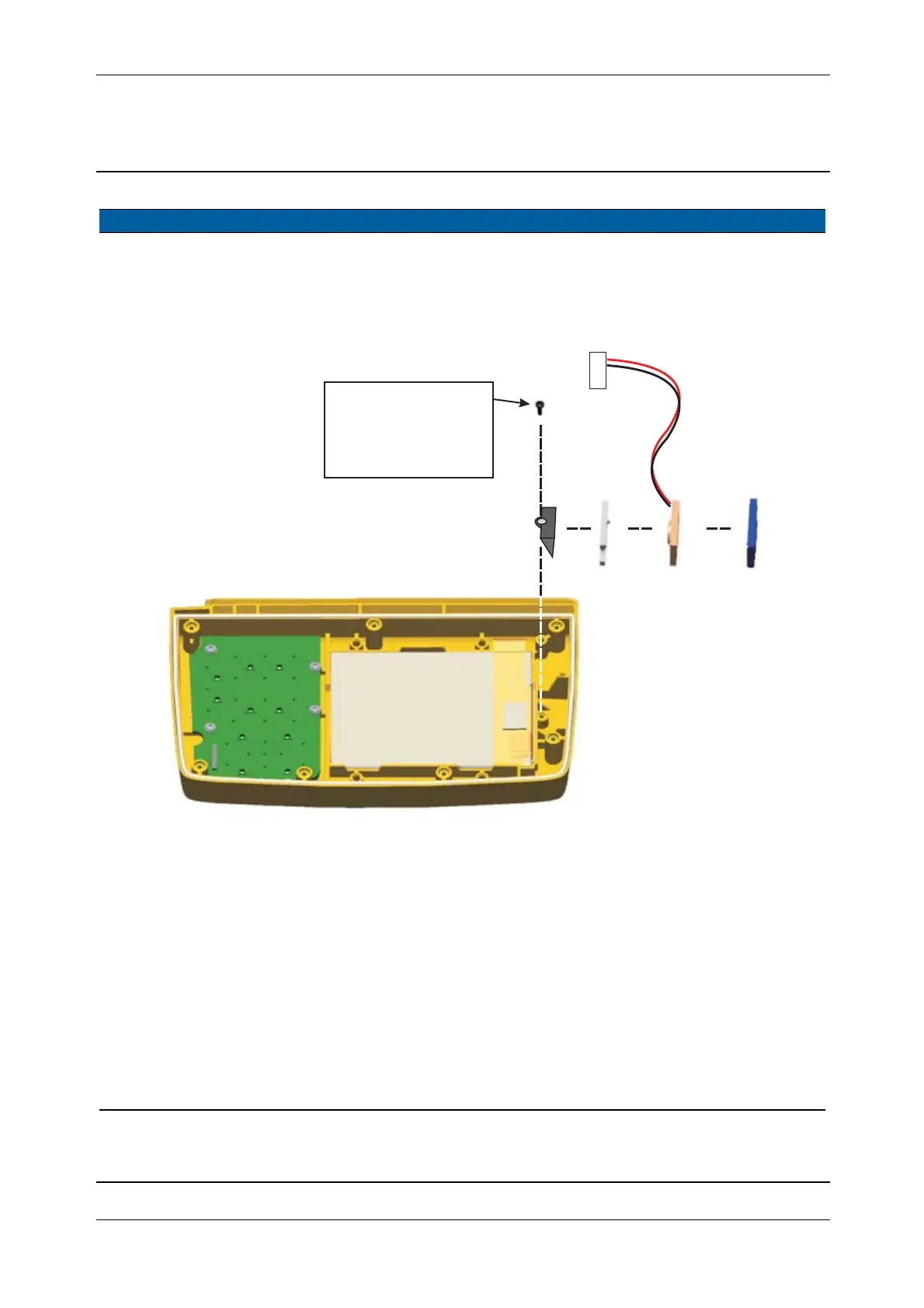

Fig. 5-35 Loudspeaker replacement
5 Mount loudspeaker A. Mount the
loudspeaker and
bracket
B. Tighten the screw
with a torque
wrench
C. Lock the screw
with glue MS1855
3 Ncm.
6 Mount IAB and
Quimby boards
See page 5-31
7 Mount back cover See page 5-25
8 Mount control panel to
instrument
See page 5-24
Item Performance Action Result Notes
3 Ncm /
0.26 lbfin
