Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 7 Trimble S, VX, SPS & RTS Service Manual
F

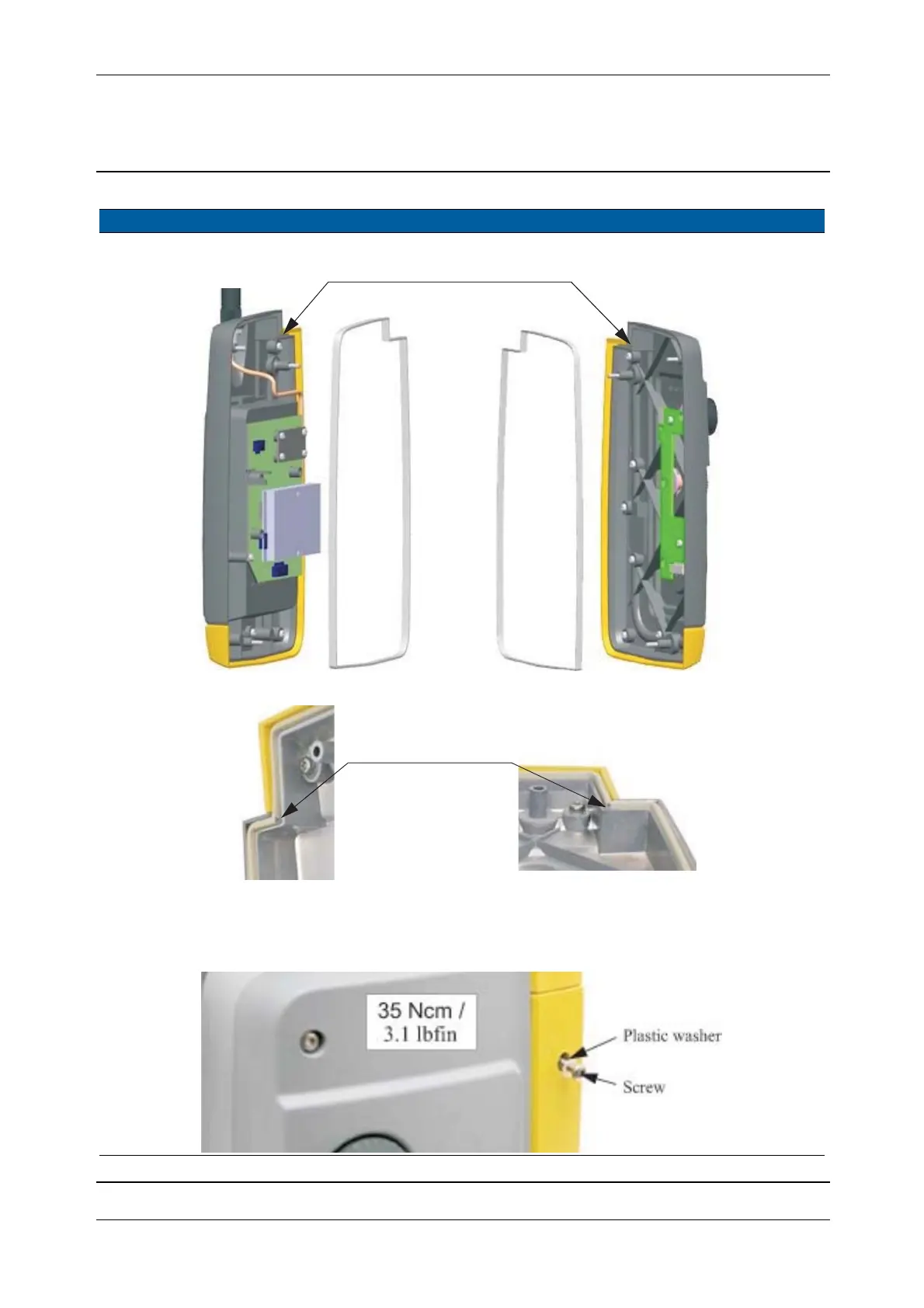

Fig. 5-8 Mounting of conductive gasket
3 Mount side cover. Mount the three screws
with plastic washer.
35 Ncm.
Fig. 5-9 Mount side cover screw and washer
Item Performance Action Result Notes
A
A
Radio/Battery side cover
Servo side cover
