Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 134 P/N 57150002, Revision 5.0
F
4 Preparation A. Turn centre unit to
second face.
B. Mount the tracker
illumination tool to the
front lens and switch it
on.

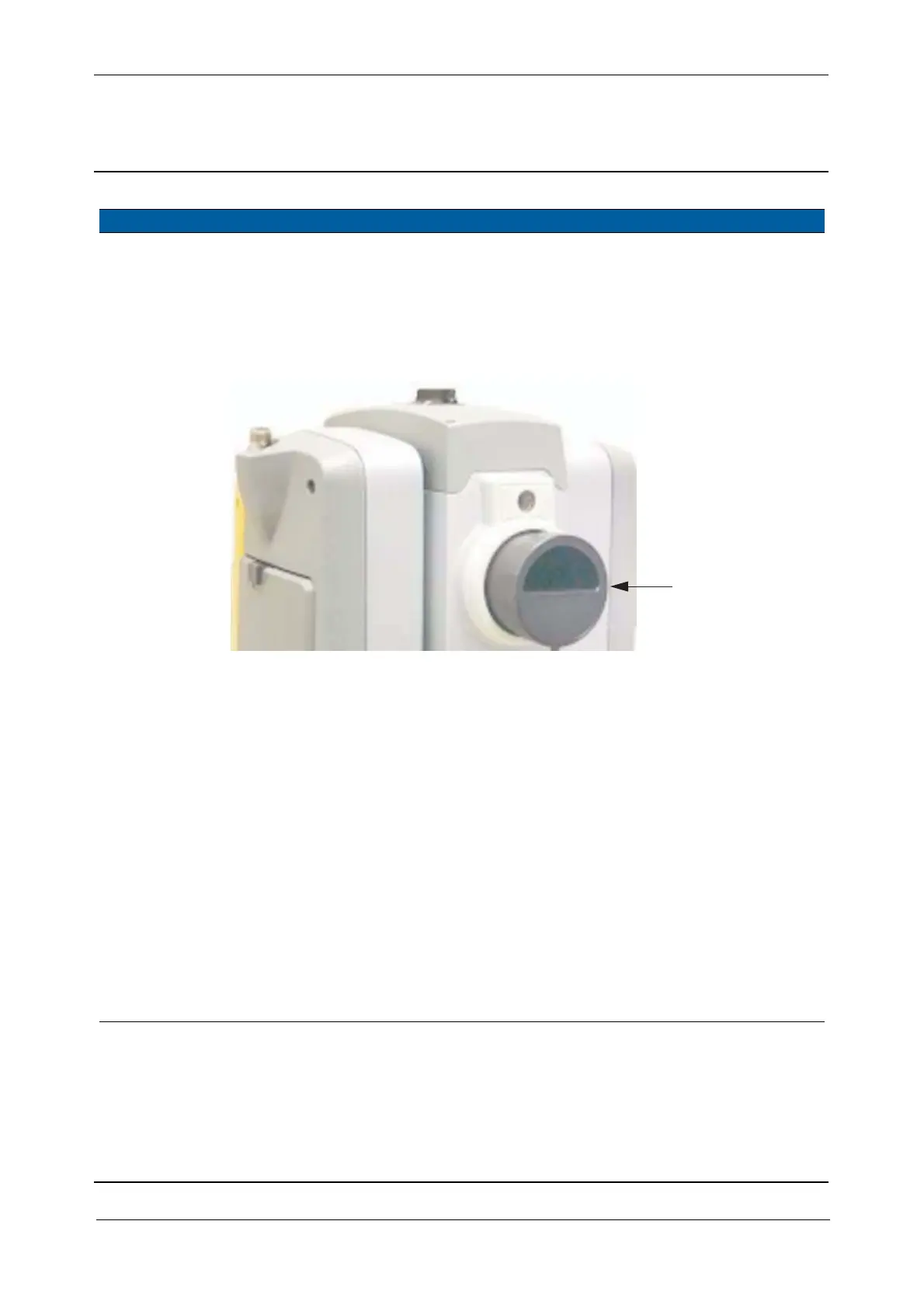

Fig. 6-144 The attached Blinking device
5 Aim instrument to
collimator.
A. Switch collimator to
wavelength position 3.
B. And aim the
instruments tracker
receiver to the
collimators cross-
hairs.
On this way the
reticle becomes
a reference for
the tracker
receiver.
6 Adjust tracker
receiver.
A. Loosen the fixing
screws slightly.
B. Move the tracker
receiver housing (see
arrows) until the centre
cross of the quadrant
detector is coinciding
with the reticle of the
collimator, see Fig. 6-
146 on page 6-135 .
C. Tighten the screws
cross wise.
50 Ncm.
Item Performance Description Result Notes
B
