Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 66 P/N 57150002, Revision 5.0
F

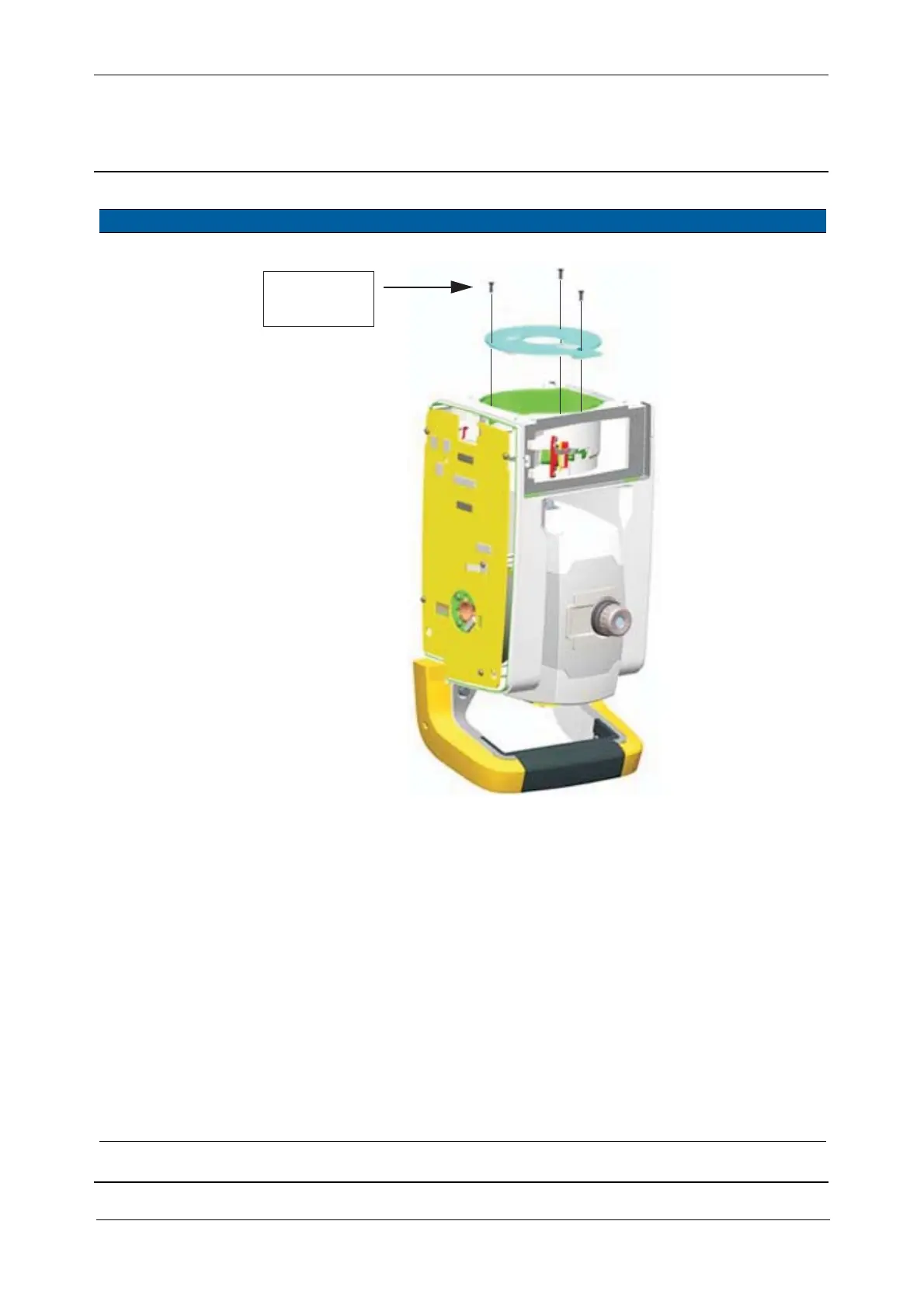

Fig. 5-63 PSM board replacement
10 Connect cable to
pressure sensor.
See page 5-40.
11 Mount face 2 panel. See page 5-39.
12 Mount and align
optical plummet.
See page 5-38.
13 Mount TCU
attachment.
See page 5-20.
14 Mount horizontal
turning unit.
See page 5-55.
15 Mount battery/radio
side cover.
See page 5-10.
16 Mount IPC board. See page 5-17.
17 Mount servo side
cover.
See page 5-15.
Item Performance Action Results Notes
35 Ncm /
3.1 lbfin
