Trimble S - Page 254

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 68 P/N 57150002, Revision 5.0
F

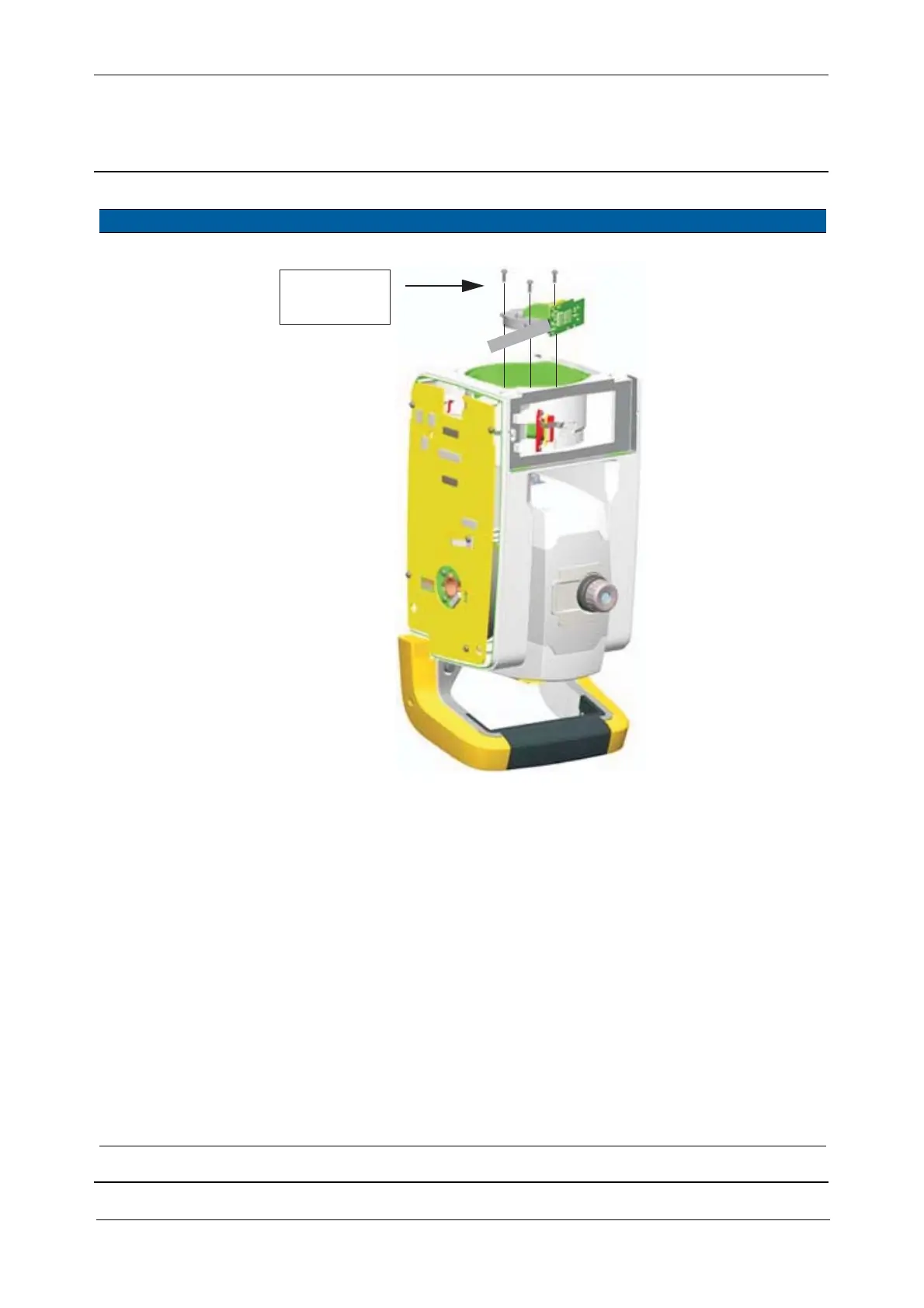

Fig. 5-64 Tilt sensor replacement
11 Mount PSM board. See page 5-65.
12 Connect cable to
pressure sensor.
See page 5-40.
13 Mount face 2 panel. See page 5-39.
14 Mount and align
optical plummet.
See page 5-38.
15 Mount TCU
attachment.
See page 5-20.
16 Mount horizontal
turning unit.
See page 5-55.
17 Mount battery/radio
side cover.
See page 5-10.
18 Mount IPC board. See page 5-17.
19 Mount servo side
cover.
See page 5-15.
Item Performance Action Results Notes
55 Ncm /
4.9 lbfin
