Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 23 Trimble S, VX, SPS & RTS Service Manual
F
4 Turn instrument to C1. Adjust the two footscrews
until the markers are
aligned.
5 Turn instrument to C2. Adjust half the error by
moving the optical
plummet.
When OK tighten the
screw, see Fig. 6-16 on
page 6-22 .
50 Ncm.
6 Fine adjust the optical
plummet.
Adjust the four screws on
optical plummet.

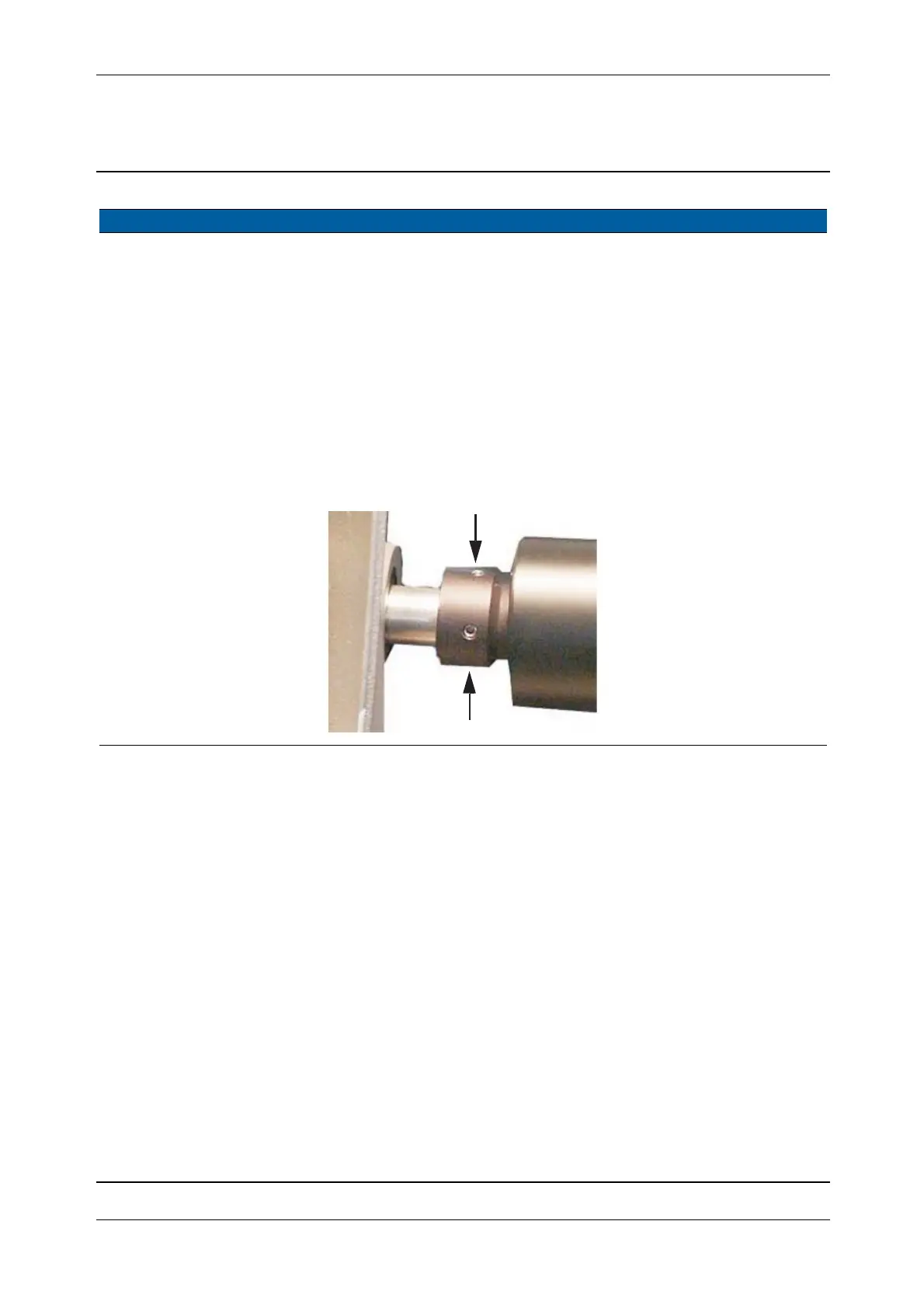

Fig. 6-17 Fine alignment of optical plummet
Item Performance Description Result Notes
