Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 41 Trimble S, VX, SPS & RTS Service Manual
F

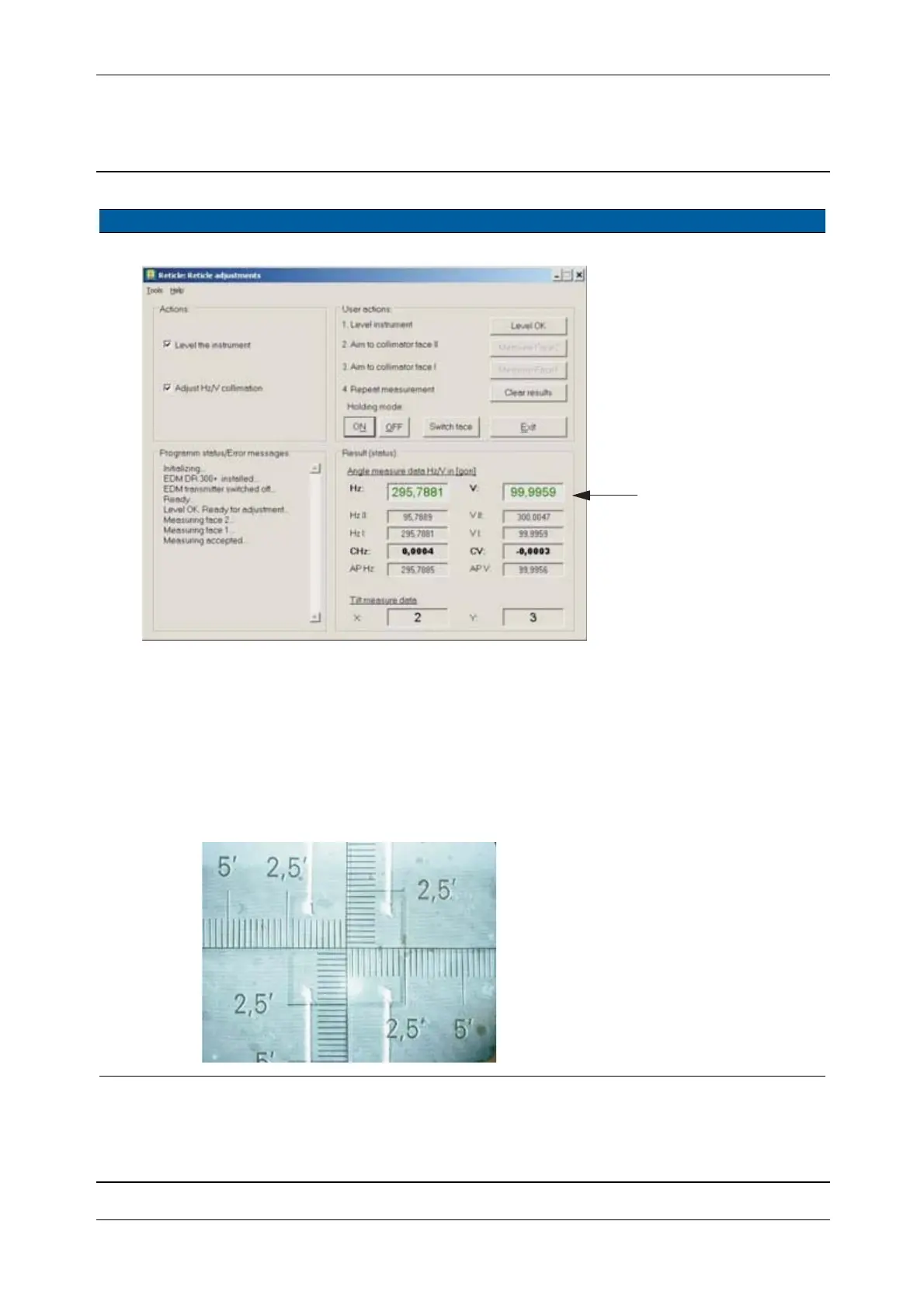

Fig. 6-30 Reticle adjustment
4 Record the vertical
reticle angle.
A. Aim to the collimator
with the tracker
illumination tool in
first face, only.
B. Record the vertical
angle.
C. Remove the tracker
illumination tool.
This angle will be
used as vertical
reference angle for
reticle adjustment
Fig. 6-31 Four quadrant detector
Item Performance Description Result Notes
Vertical centre position
of Tracker receiver
Read the vertical angle
when the tracker receiver
is aimed to the collimator
