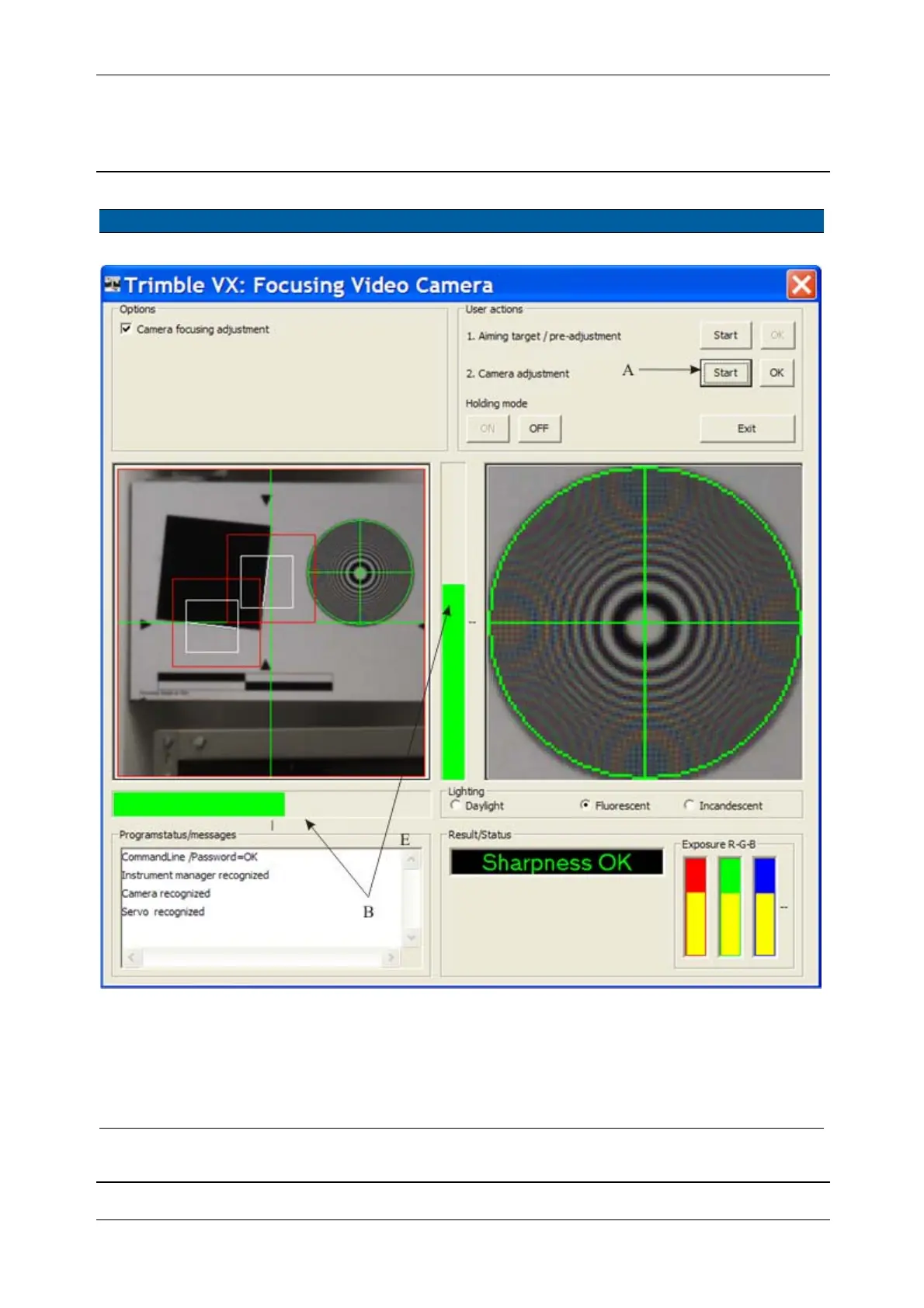

Fig. 6-176 Camera focusing with correct Sharpness OK.
9 Exit of Camera
focusing software.
Press the
Exit button. After every camera
focusing adjustment, a
camera calibration
have to be done to
determine the camera
orientation constants.
