Chapter 3
Theory of Operation
Trimble S, VX, SPS & RTS Service Manual3 - 6 P/N 57150002, Revision 5.0
F

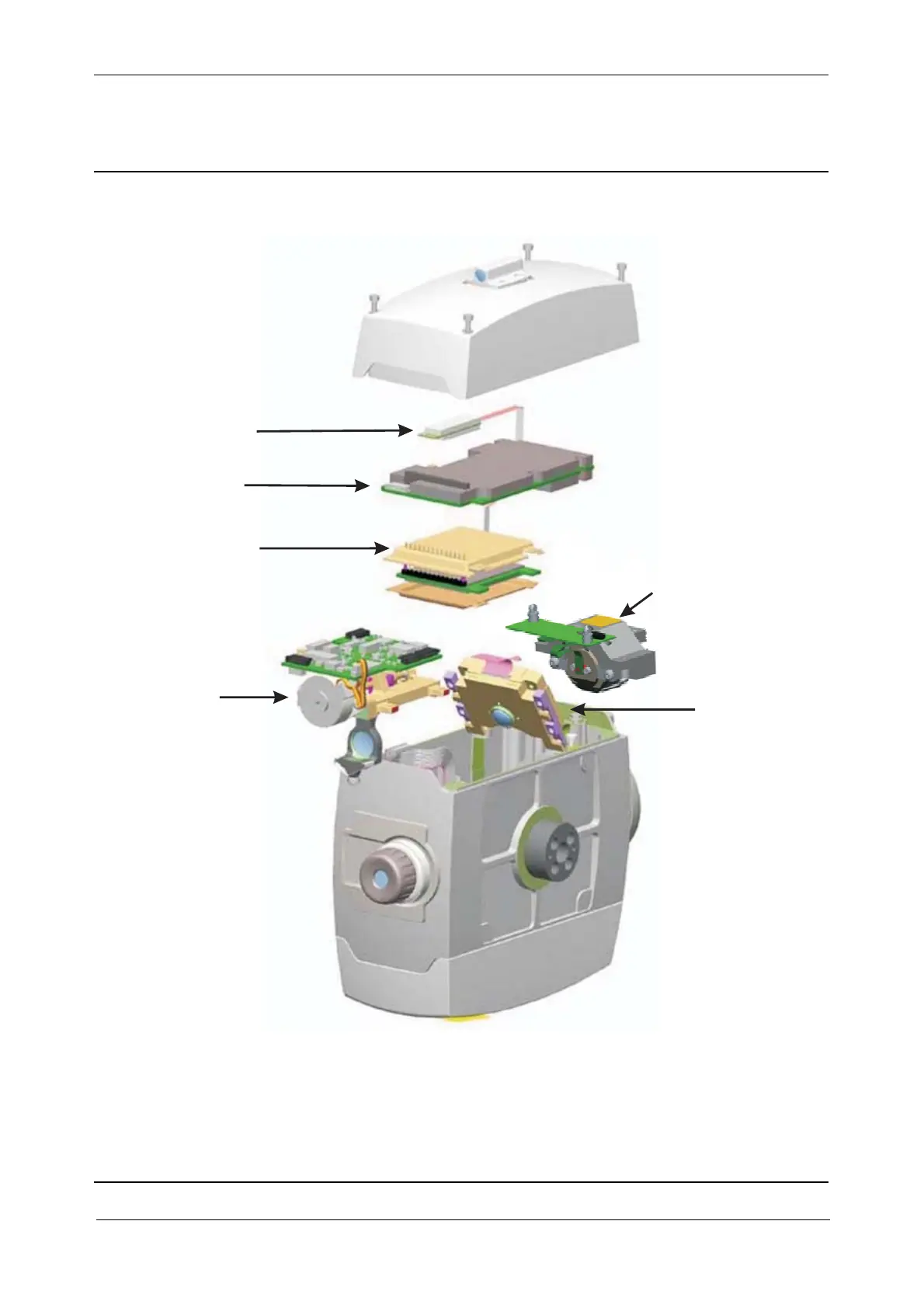

Fig. 3-5 Tracker Long Range or High Power Laser & Tracker unit / Servo focus parts
TFB board
OTC2 board
OTA board
Servo focus
Tracker Long Range (TLR)
or
High Power Laser (HPL)
module
OTR
