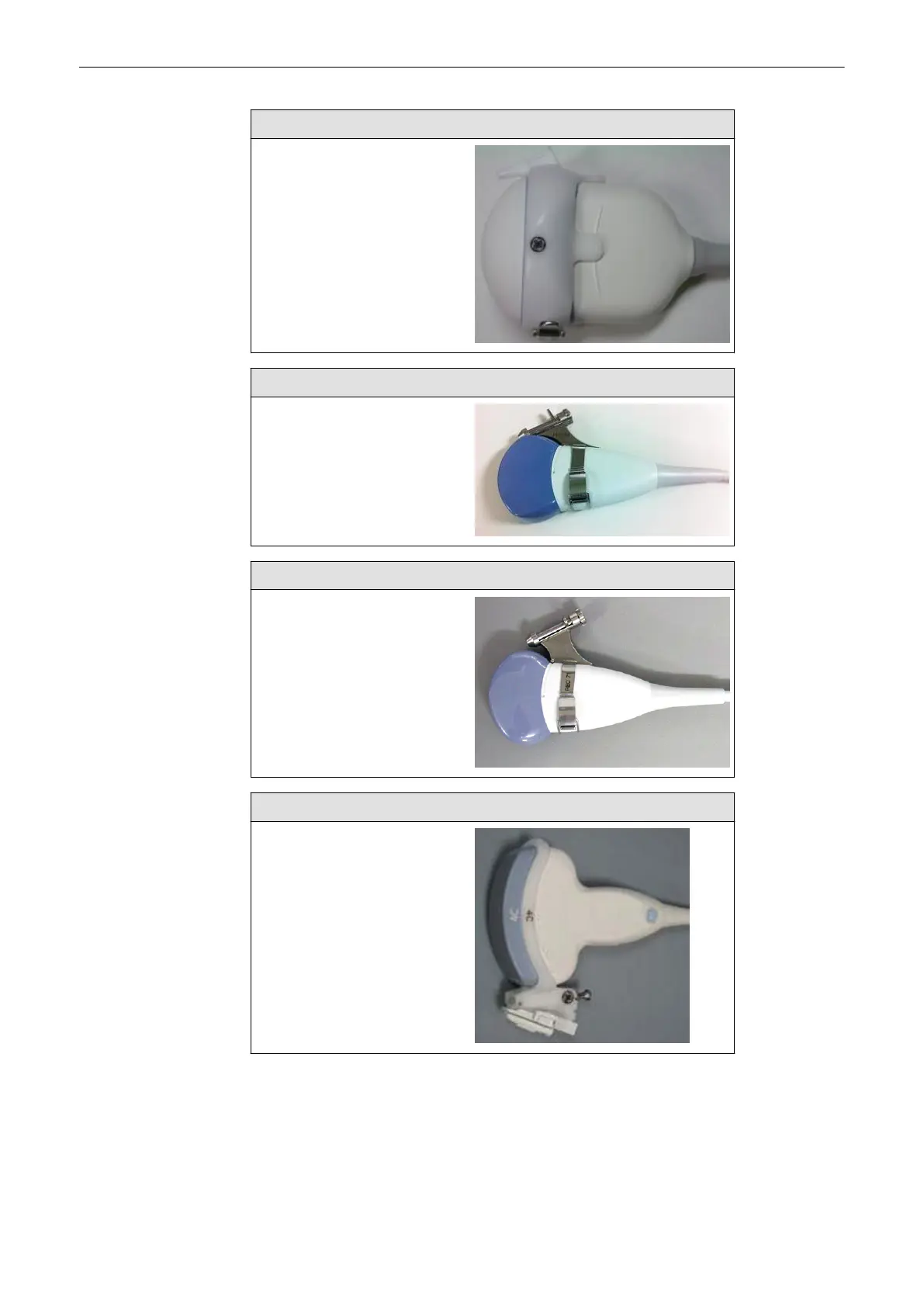

PEC 78 for Voluson® Abdominal Transducer RAB2-5-RS
Press the needle guide onto the
transducer shaft and push it
forward until the small swelling of
the needle guide catches in the
notch at the transducer tip.
PEC 83 for Curved Array Transducer AB2-7-RS
Place the needle guide onto the
transducer; push it forward until
the bracket catches in the support
on the housing of the probe. Fix
the biopsy guide by locking the
frame on the opposite side.
PEC71 for Curved Array Transducer AB2-7-RS
Place the needle guide onto the
transducer; push it forward until
the bracket catches in the support
on the housing of the probe. Fix
the biopsy guide by locking the
frame on the opposite side.
H40432LE for Curved Array Transducer C1-5-RS*, E8385NA for 4C-RS
Press the needle guide onto the
transducer shaft and push it
forward until the small swelling of
the needle guide catches in the
notch at the transducer tip.
