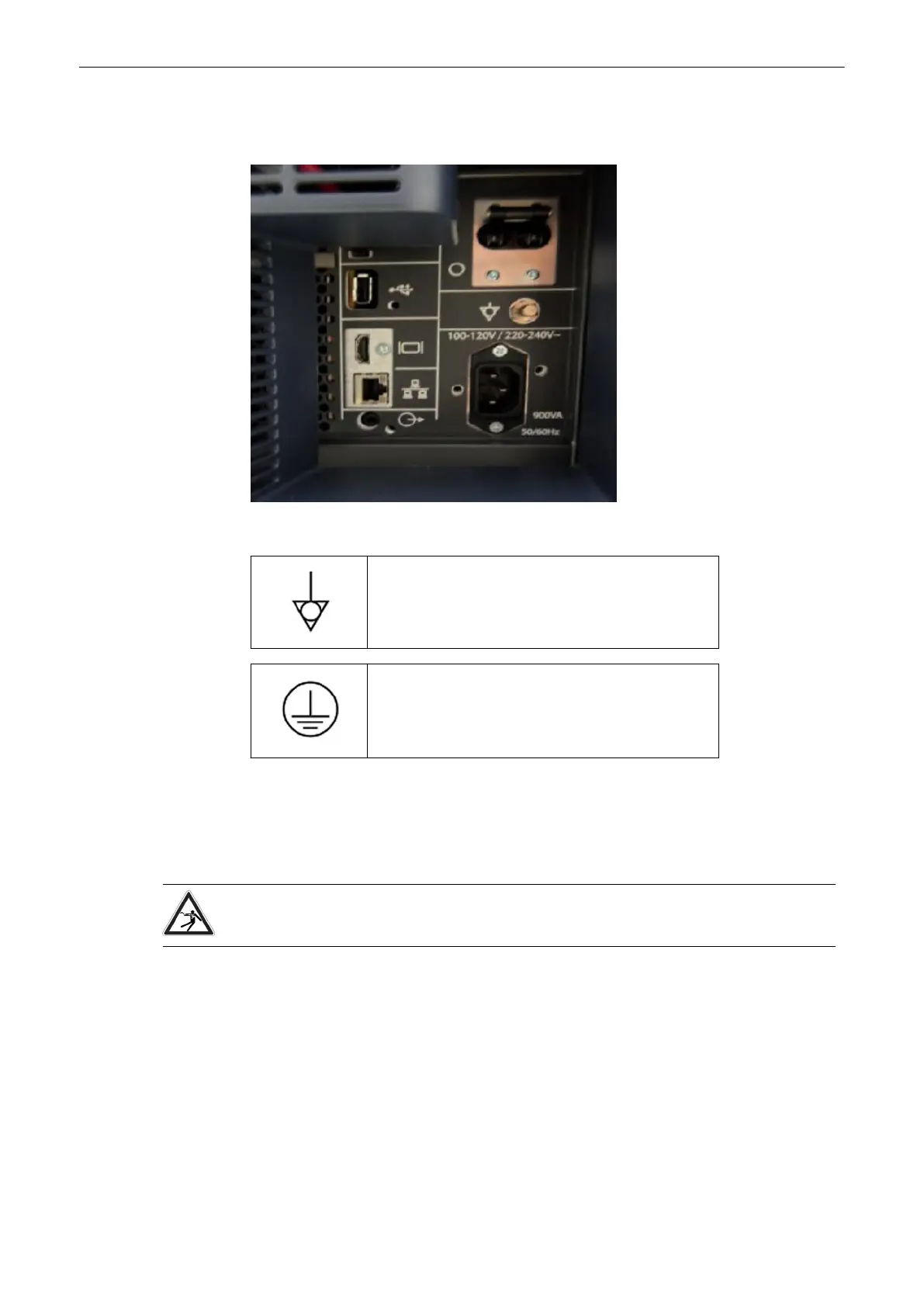

15.3.2 Power Supply (rear side)
Mains IN Mains voltage according to rating plate. Voluson® S6/S8 supports the free voltages.
Potential equilibrium connection
Protective earth (ground) connection
15.3.3 Power Supply (for on-board peripherals)
There is one connectors for on-board peripherals:
The outlet voltage is identical on the mains voltage.
The sum of the power consumption of equipment connected to these outlets must not exceed
600 VA!
15.3.4 Connector Panels
15.3.4.1 Rear Panel
The rear panel can be found on the rear side of the body of the system.
Connections
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 15-5
