[CF Mode] keyadjusts the TD Gain.
When the GAIN control is turned clockwise the Color gets more intense. When the GAIN
control is turned counterclockwise the Color gets less intense.
8.6.2.3 2D + 2D/TD
The “2D+2D/TD” function changes the single image display to two simultaneous half frames.
The left frame shows only the 2D mode image. The right frame shows the 2D mode image
also with color information.
Switch on/off this mode by Selecting the [2D+2D/TD] control.
8.6.3 TD Sub Menu
The “TD Main” menu must be active.

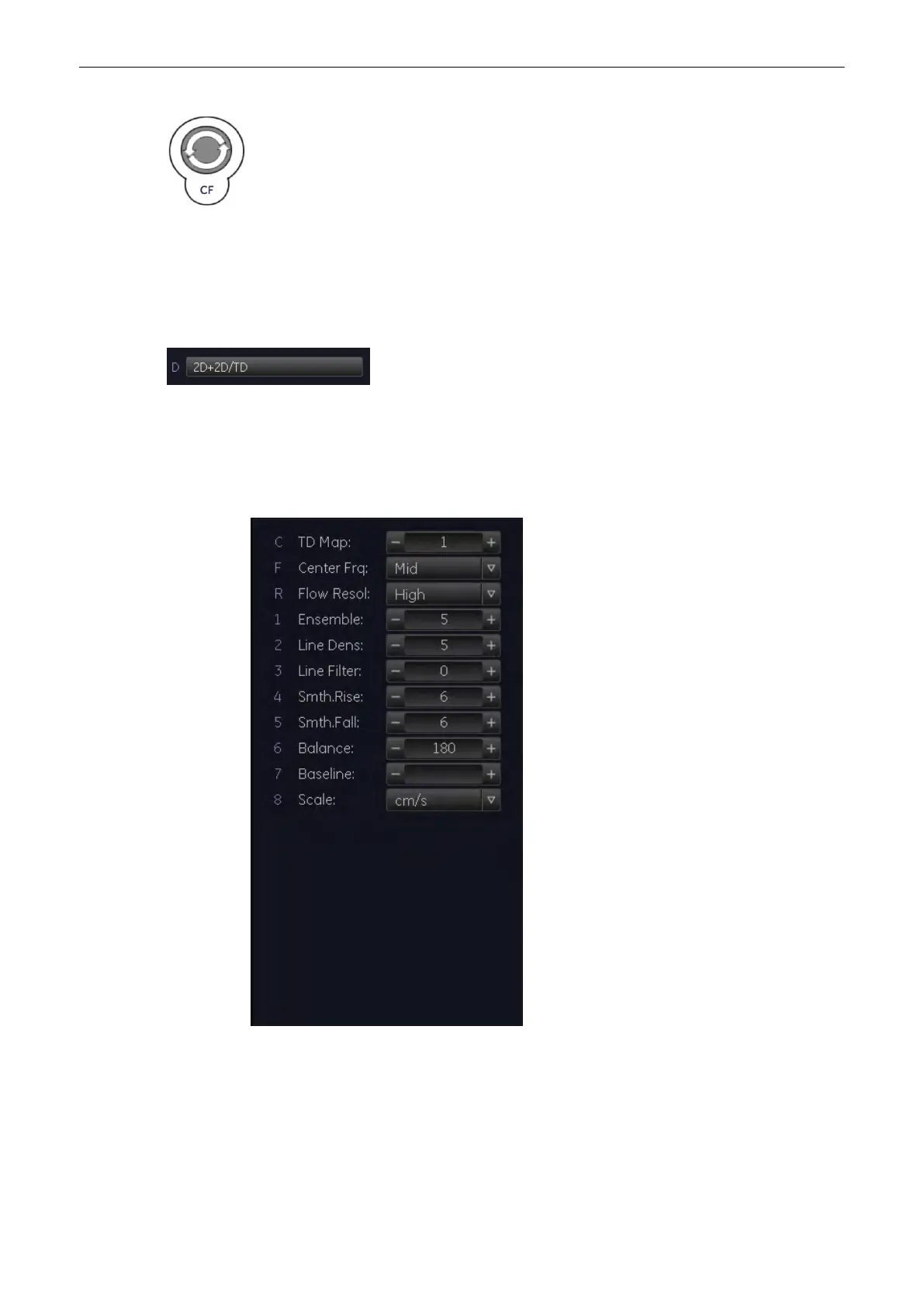

Select the [Sub TD] control. The TD Submenu appears:
Note
Changes are only possible in scan mode! Changes in the TD Map, Balance, Baseline, Scale
and Threshold are also possible in freeze mode.
The following functions are available:
•
'TD Map'
on page 8-31
•
'Frequency'
on page 8-36
