max diameter passing through the distal point

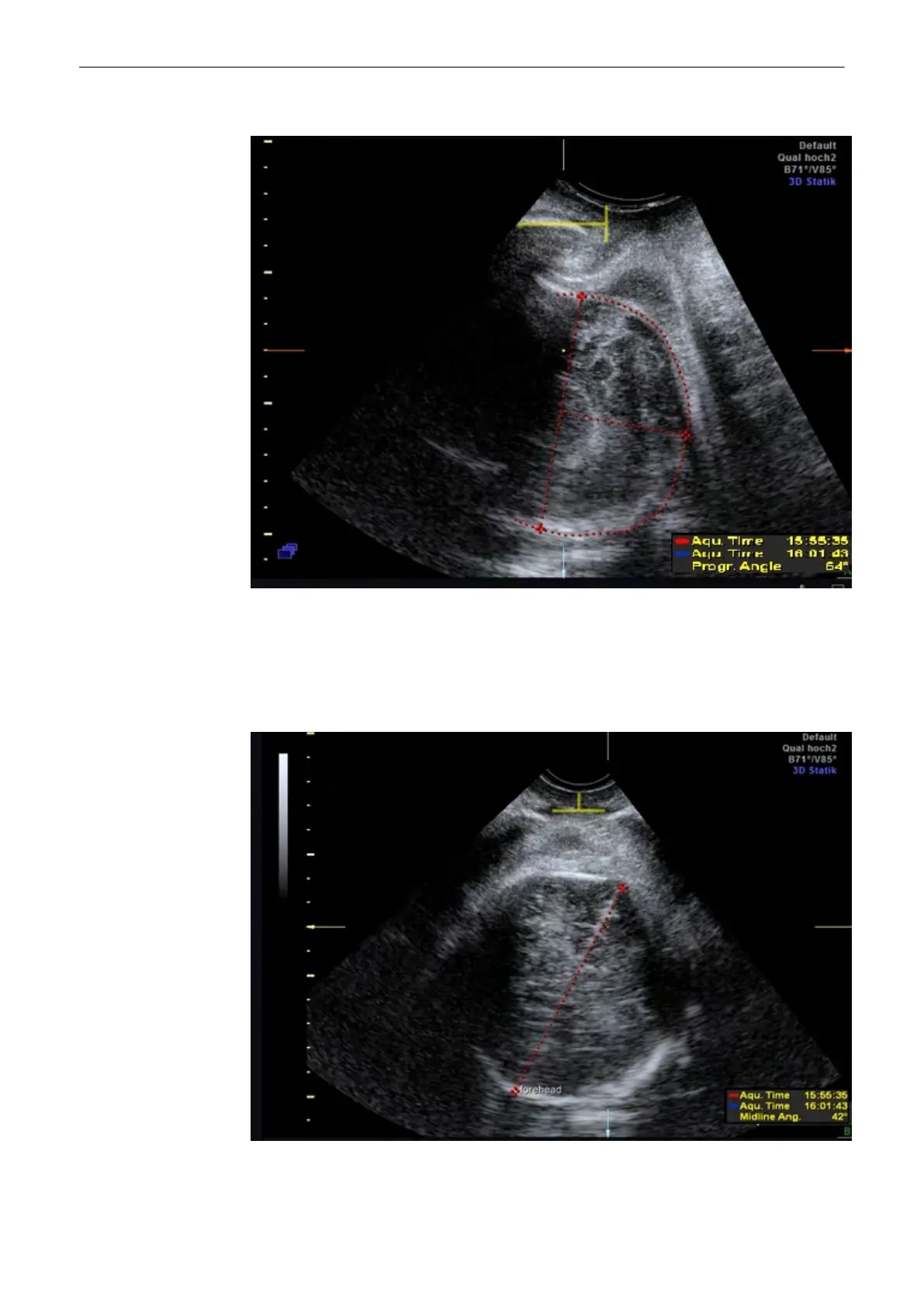

9.15.6 Set midline
Mark the position of the midline with a line of two points. The measurement result is the
calculated angle between the vertical axis and the midline. As the rotation can be to the left or
to the right it is necessary to start measuring at the occiput to get acurate results.
Volume Mode
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 9-147
