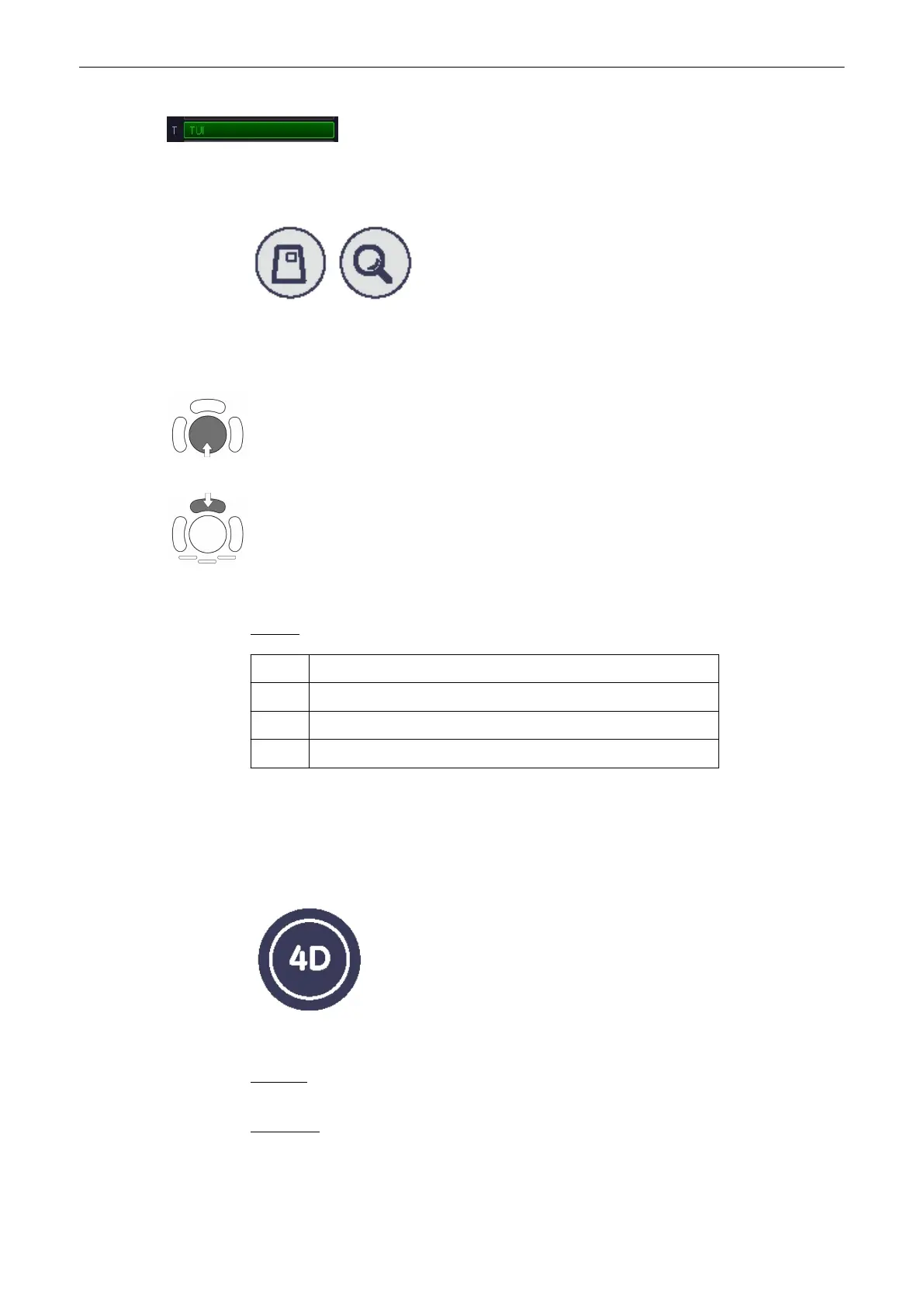

9.5.2 Real Time 4D Acquisition During Active High Resolution Zoom
1. Press the [Zoom] control, while still in 2D.
2. Place the zoom box over the region of interest.
The trackball has two functions: adjusting position and size of the zoom box. The activated
function is displayed in the status bar area on the monitor.
Press the upper trackball key to change the function of the trackball from position to size or
vice versa.
3. Change the size of the zoom box by moving the trackball.
Moving:
↑ decrease the box size in vertical direction
↓ increase the box size in vertical direction
→ increase the box size in horizontal direction
← decrease the box size in horizontal direction
4. Select [HD-Zoom] by pressing the right trackball key.
5. The overview window appears. To readjust overview window settings:
'General'
on page 13-
15
Note
You can still adjust the adjust position and size of the zoom box using the trackball.
6. Press the [4D] key to activate Volume mode.
Remark: The overview window is hidden when 3D/4D mode is activated. It appears again,
when you return to 2D.
Operation: 'Real Time 4D Acquisition'
on page 9-78
