11.2.2.11 HR (Heart Rate)
To measure the Heart Rate (HR) in M Mode:
1. Press the [Calc] key on the control panel.

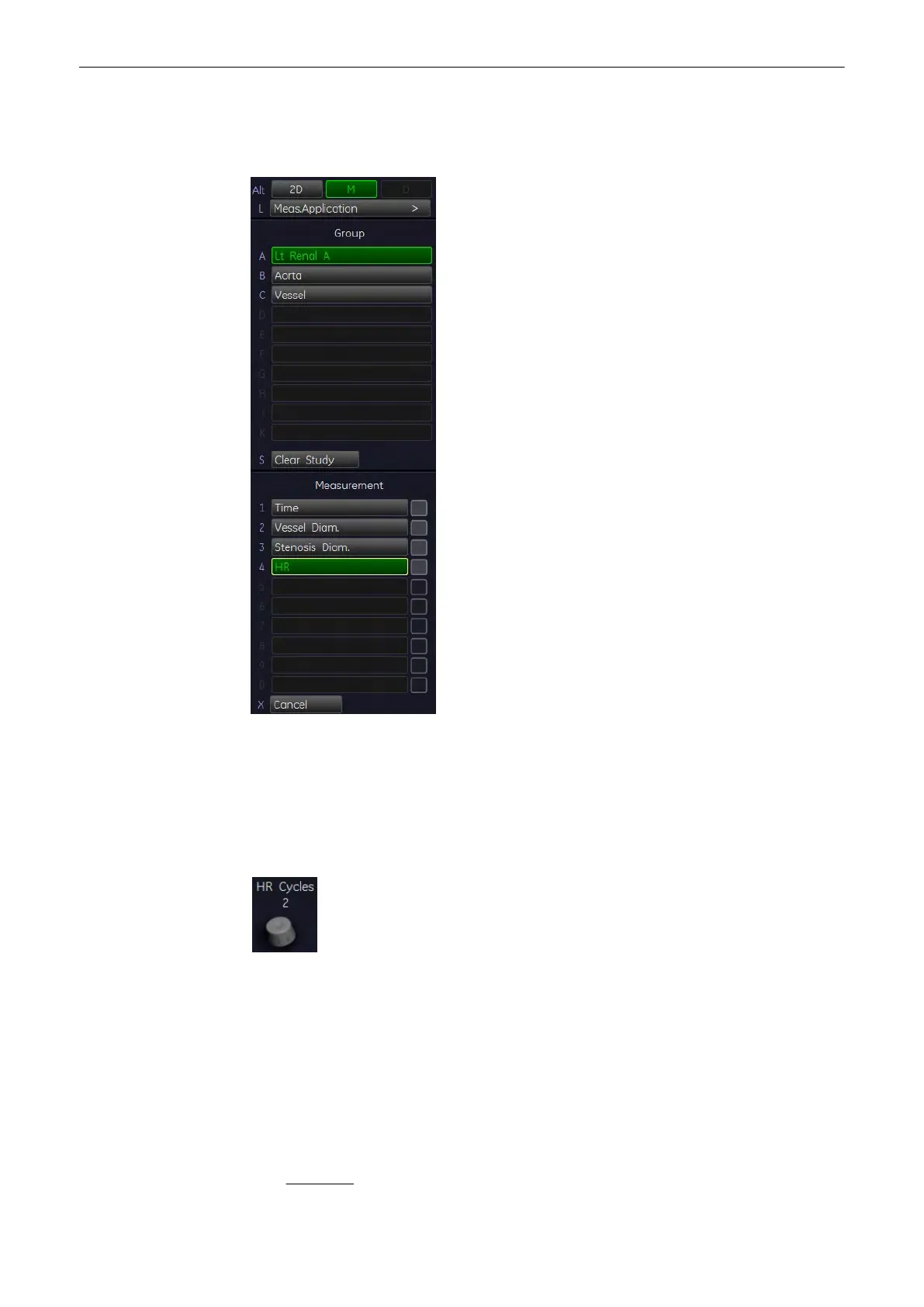

2. Select the desired item. For example: select [Left Renal Artery].
3. Select the [HR] key on the control panel. A line appears on the screen.
4. Move the line to the start point of the period and press the right or left trackball key [Set].
The second line appears.
5. Select the number of heart rate cycles necessary for measurement with the rotary control
below the control panel.
6. Move the second line to the end point of the period (according to the selected number of
heart rate cycles to be measured).
7. Press the right or the left trackball [Set] key again. The Heart Rate is displayed.
11.2.2.12 Abdomen Calculations in Spectral-Doppler Mode
There are many possibilities to measure different vessels in Spectral-Doppler mode:
•
Auto Trace
(chapter
'Auto Trace'
on page 11-31
)
