'Display Size'
on page 7-8

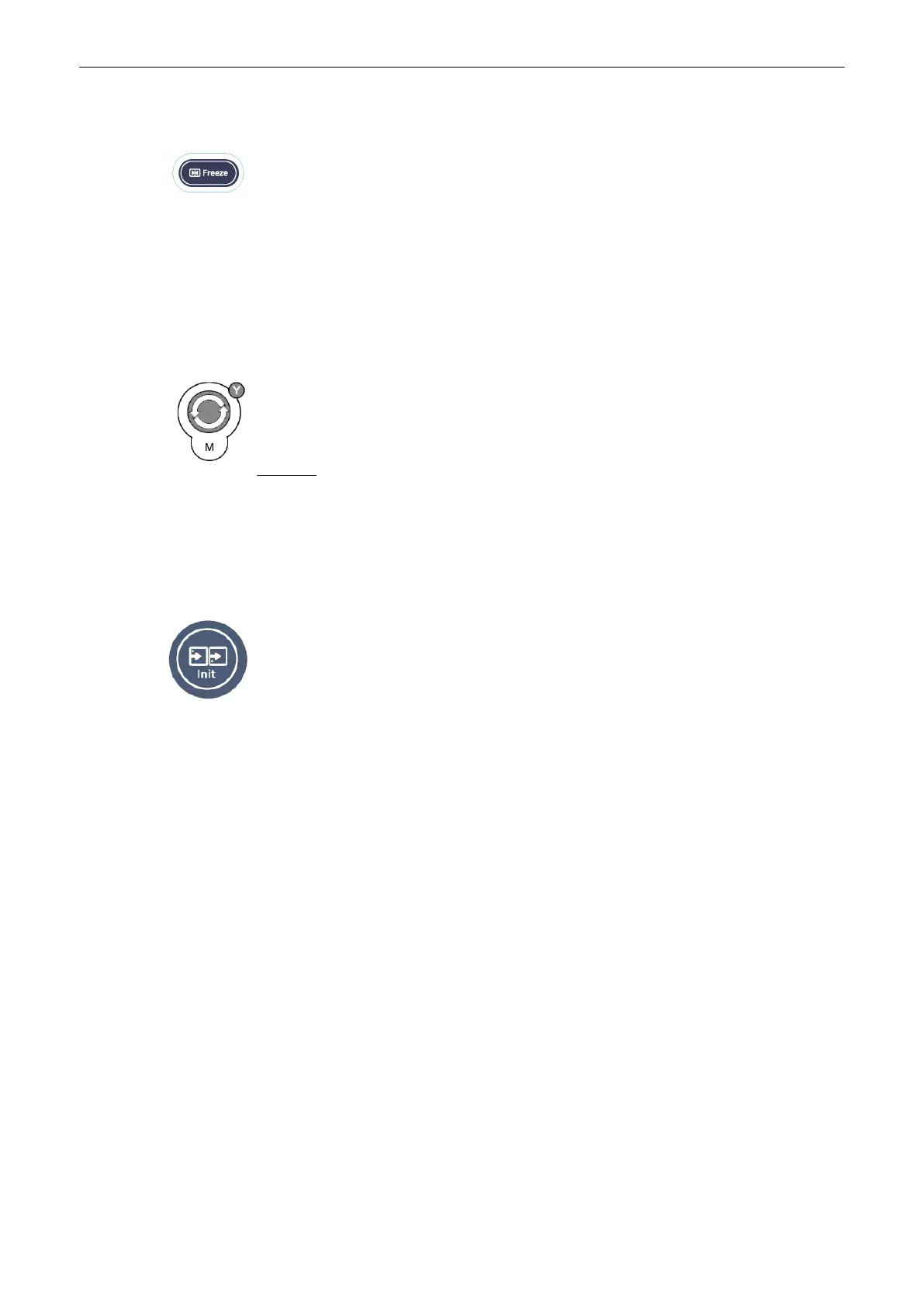

The [Freeze] key stops the 2D image and MTD mode trace.
Note
By pressing the [Freeze] key again, the MTD-cursor appears on the active 2D image.
7.5.2.3 MTD Gain Control
The adjustment of the Gain control determines the amount of amplification applied to the
received echoes. All received echoes are amplified with the same gain value regardless of the
scan depth.
Rotate the [M Mode] key/and or the [CF Mode] key to adjust the gain (brightness) of the
entire image.
Note: The [M]
Gain function influences the M trace brightness only. Note: The [CF] Gain
function influences the color saturation only.
Remarks:
•
The current gain value is displayed on the screen [GN ...].
7.5.2.4 Invert MTD
This function inverts the color display in the MTD mode image. The color of the color wedge
inverts around the baseline.
key unlit: MTD color display normal ↑ yellow, red ↓ blue, green
key lit: MTD color display inverted ↑ green, blue ↓ red, yellow
7.5.2.5 Velocity Range (PRF)
For more information see
'Velocity Range (PRF)'
on page 8-40.
7.5.2.6 MTD Cineloop
For more information see
'M Cineloop'
on page 7-6.
7.5.3 MTD Sub Menu
The “MTD Main” menu has to be active.
Select the key [Sub MTD] key. The MTD Submenu appears.
M Mode
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 7-15
