General Description
Elastography shows the spatial distribution of tissue elasticity properties in a region of interest
by estimating the strain before and after tissue distortion caused by external or internal forces.
The strain estimation is filtered and scaled to provide a smooth presentation when displayed.
Note
Please be advised that the feature may not be available in some countries due to pending
regulatory approvals.
10.1 GUI elements
The Elastography screen:

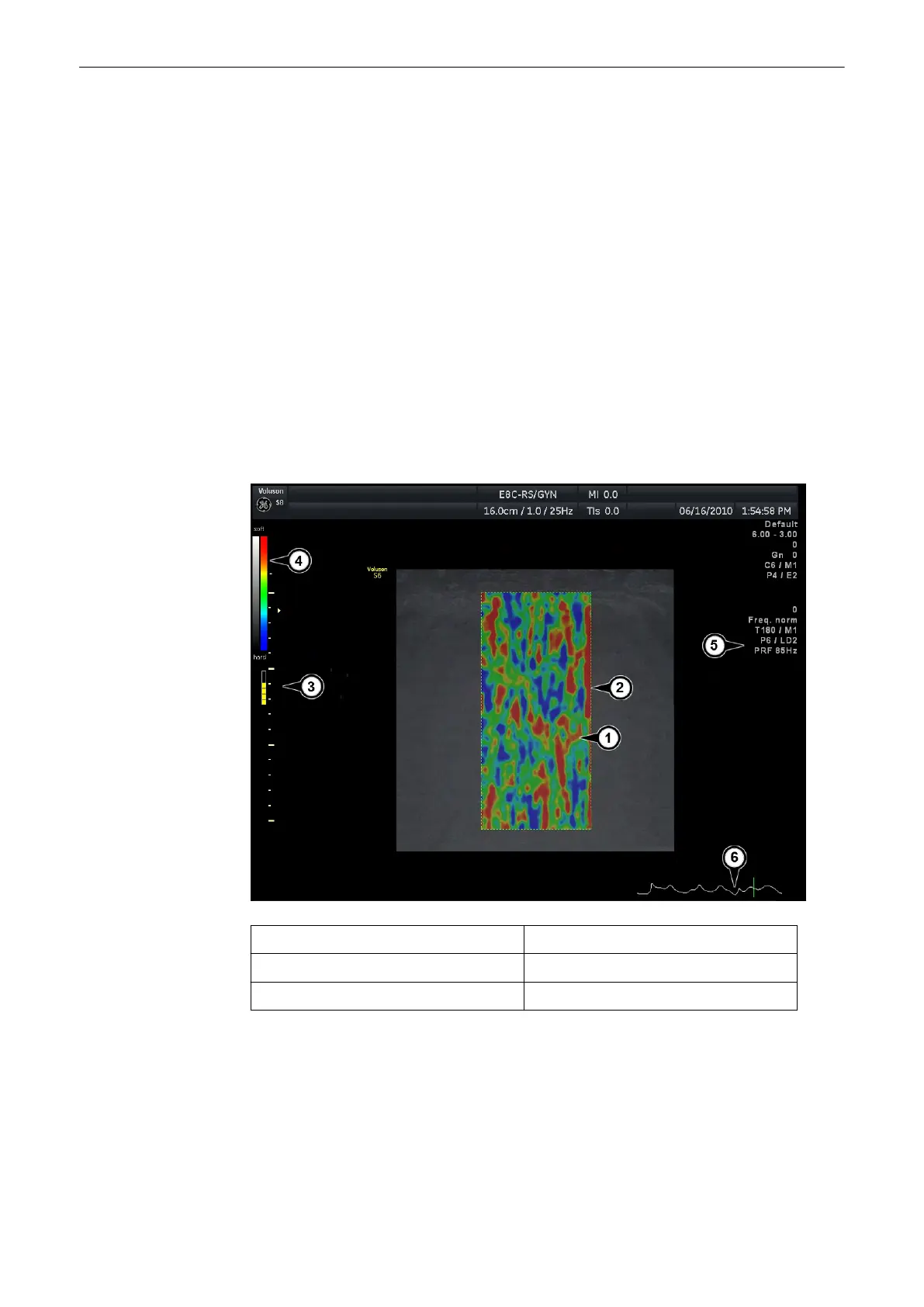

1.) Elastography imaging 2.) Box Frame (Elastography ROI)
3.) Quality bar 4.) Color bar
5.) Elastography image info 6.) Quality TL line
