GE Voluson S8 - 7.1.1 Principle; 7.2 M Operation

Remarks:
•
In freeze mode (frozen image) changing the Gain and Frequency is not possible.
7.1.1 Principle
The M mode display is derived from a 2D image display. When switching on the M mode, the
M-cursor line is inserted into the 2D image. It symbolizes the ultrasound beam and defines the
position of the M mode trace. The M mode trace is initialized with the right or left trackball key.
Simultaneous mode:
With electronic probes the 2D-and the M trace will be displayed simultaneously. The M mode
trace is displayed in scroll mode (the most recent information is always shown at the right part
of the trace).
7.2 M Operation

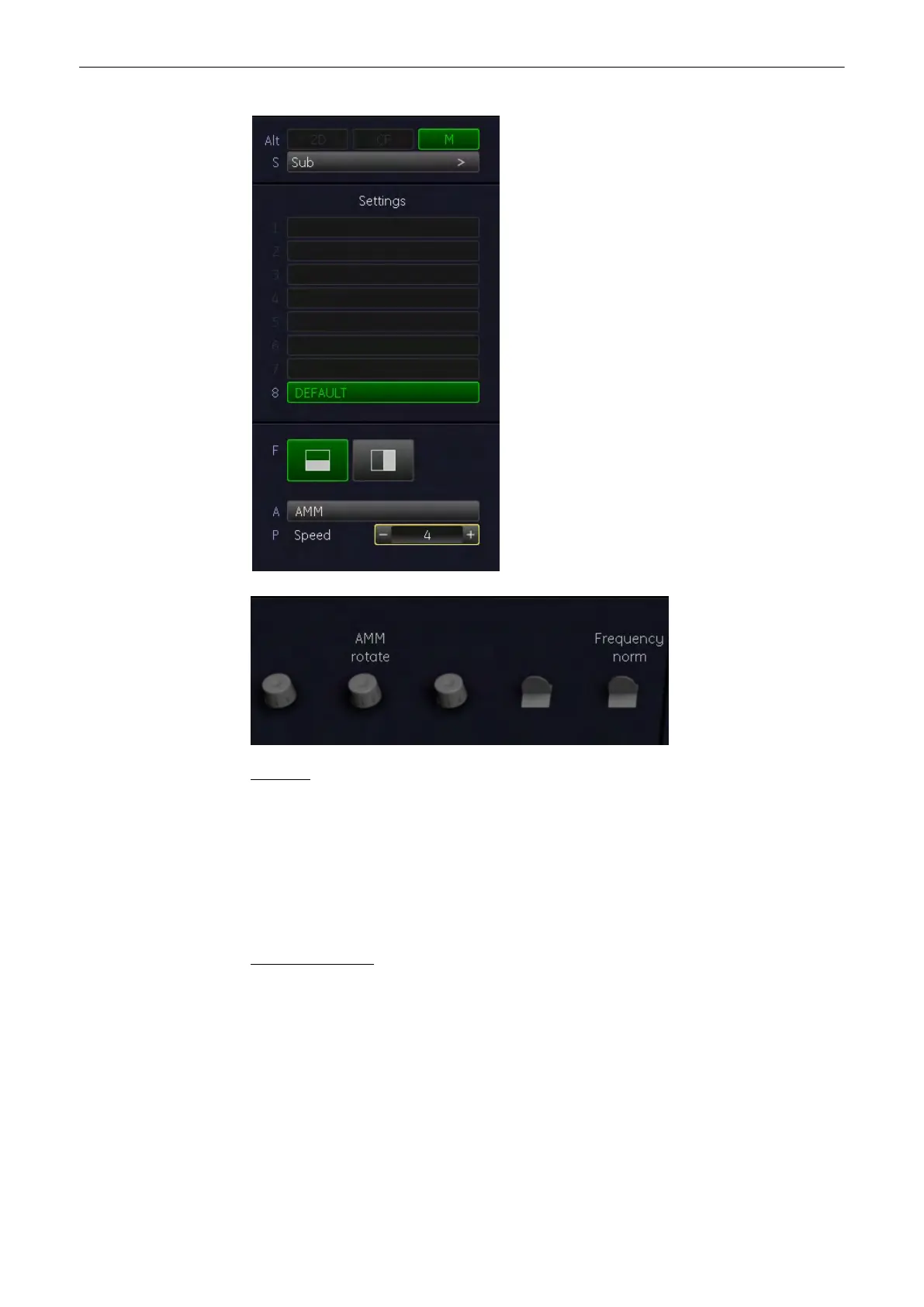

The M operation
See informations:
•
'Cursor Position'
on page 7-4
M Mode
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 7-3
