3.3.2.1 Console-Transportlock
There is a lever for locking and unlocking the control console, mounted at the front below the
control console. When preparing the system for transport, the lock shall be engaged in order to
secure the console against uncontrolled rotation. The bolt set to the locking position, the lock
catches in when the console is rotated to its center 0˚ position.
3.3.2.2 Horizontal Movement of the Control Console
ROTATION AND FRONT/BACKWARD MOVEMENT OF THE CONTROL CONSOLE
Rotate or move the control console forward and backward manually with keeping the left
button pressed at the front handle of the user interface.
Do not put your hand between the control console and the main body when moving it to the 0
position: Danger of injury!
Do not lift the system with the front handle of the user interface.
3.3.2.3 Vertical Movement of the Control Console
Move the control console upward or downward manually with keeping the right button pressed
at the front handle of the user interface.
Make sure that nothing would be jammed while moving.
3.3.3 Caster Brakes
Never move the system with blocked wheels, but block the wheels in the proximity of stairs
and ramps.
There are 2 kind of casters (3 brake only available casters and 1 steering blockable and brake
caster):

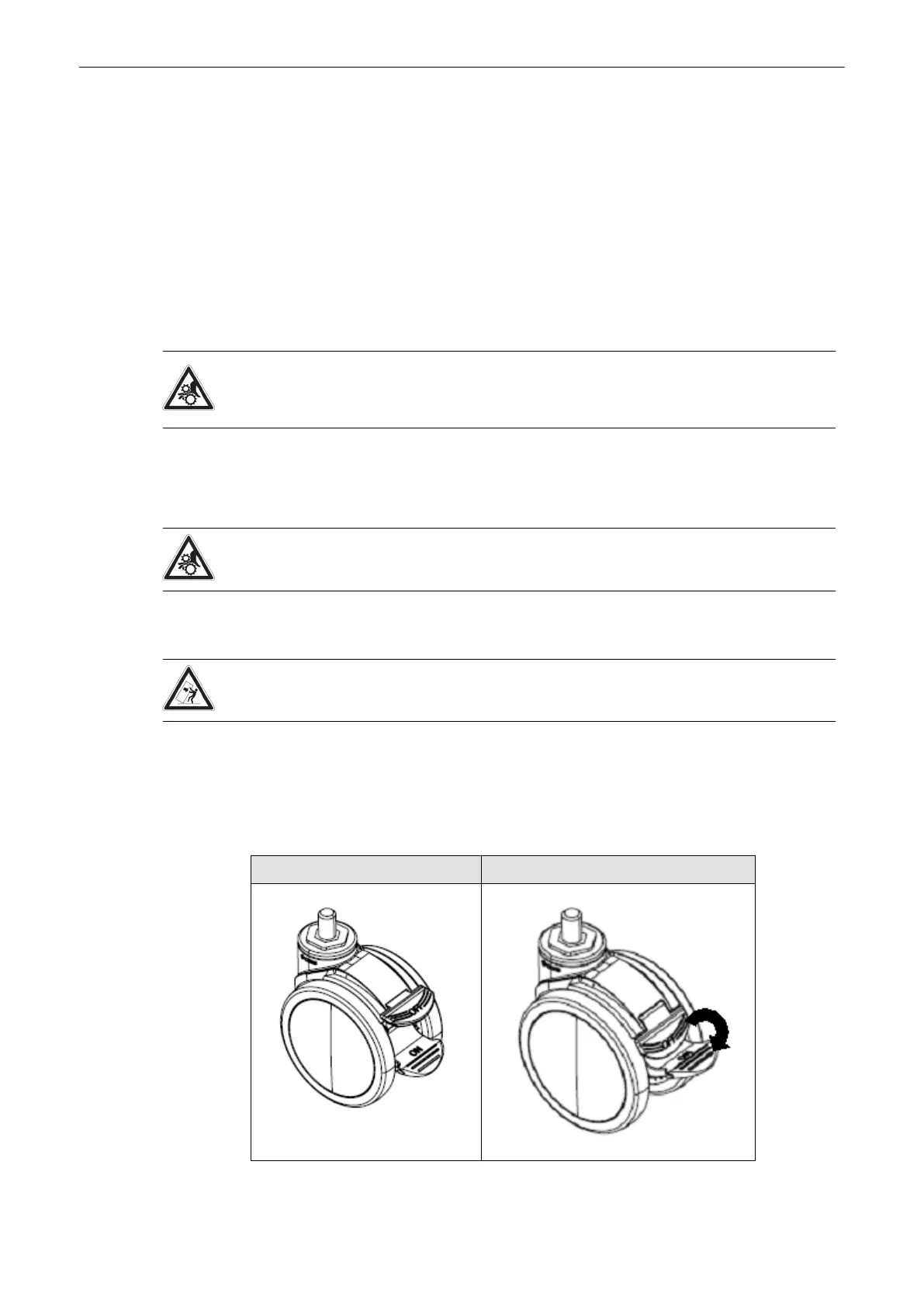

There are 2 different positions for the caster brakes:
3 brake only available casters:
Top position: caster brake pulled Lower position: caster freely movable
Description of the System
3-6
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4
