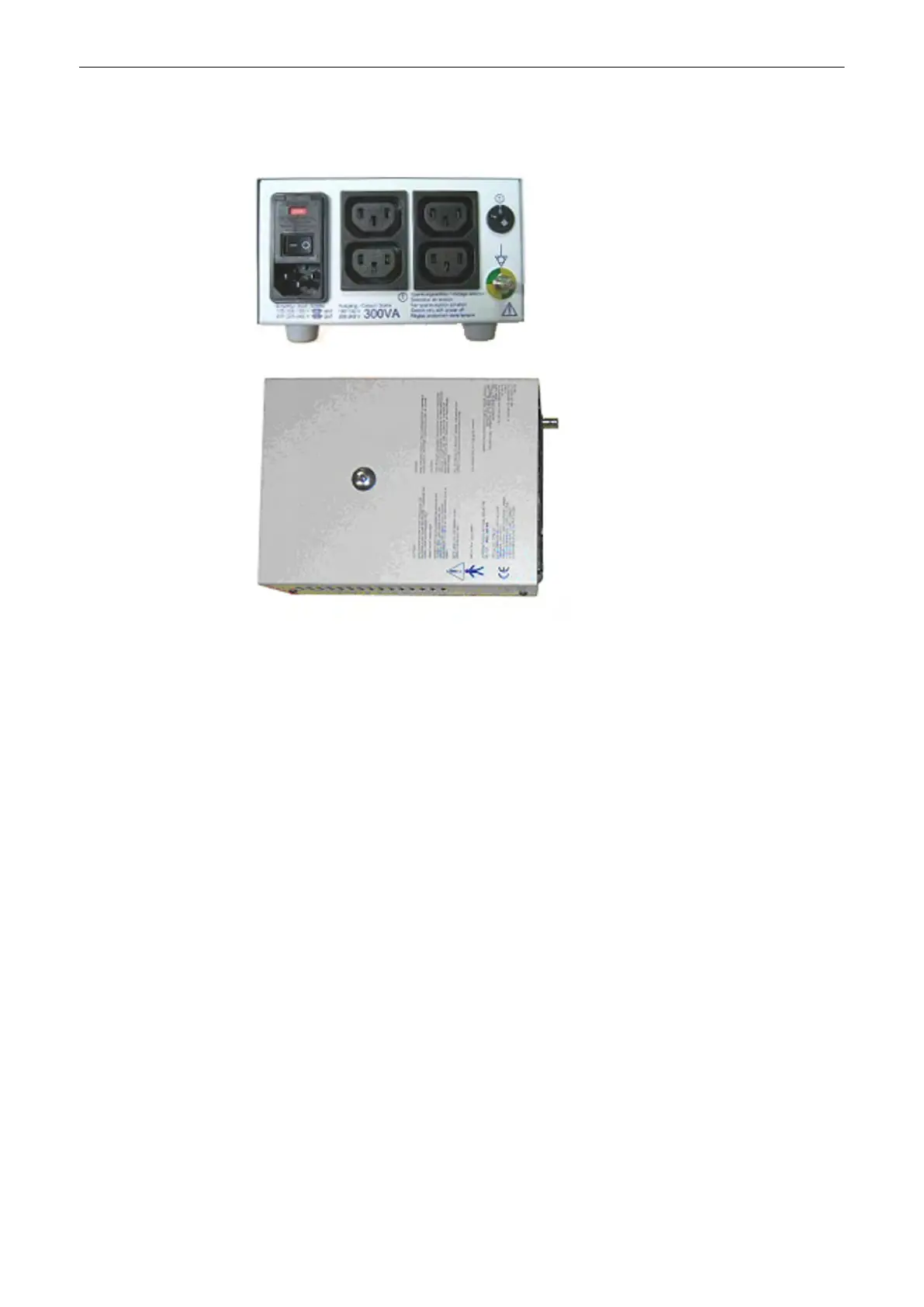

15.6 Isolating transformer Noratel IMED 300WR
15.7 ECG Module
•
The ECG kit consists of a ECG module and a patient connection cable.
•
The connector of the patient connection cable is on the right side beneath the keyboard.
Connections
15-10
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4
