GE Voluson S8 - 15.7 ECG Module

•
The ECG Module is used for acquiring an ECG signal to be displayed with the ultrasound
image.
•
The signal input of the ECG module is equipped with a protection against high voltages
used for defibrillation. (Type CF)

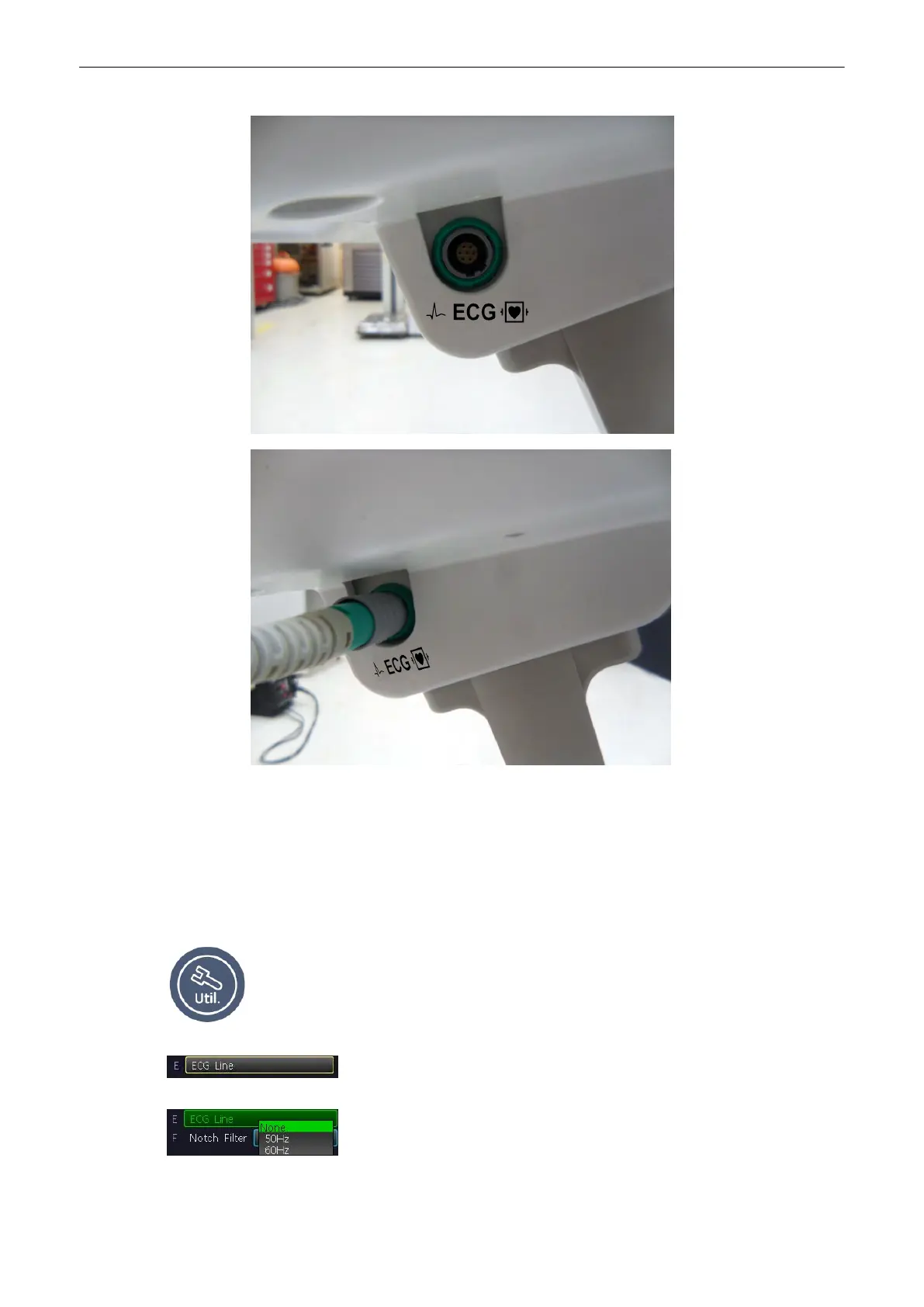

15.7.1 Handling
1. Press the [Utilities] key on the User Interface.
2.
The ECG function is switched on and off by pressing the [ECG Line] button in the Utilities
menu.
3. The ECG Notch filter will be applied by selecting Notch Filter index (None/50Hz/60Hz ).
The ECG menu appears on the left menu.
The Notch Filter menu appears when ECG Line on.
Connections
