1. Press the [Calc] key on the control panel.
2.

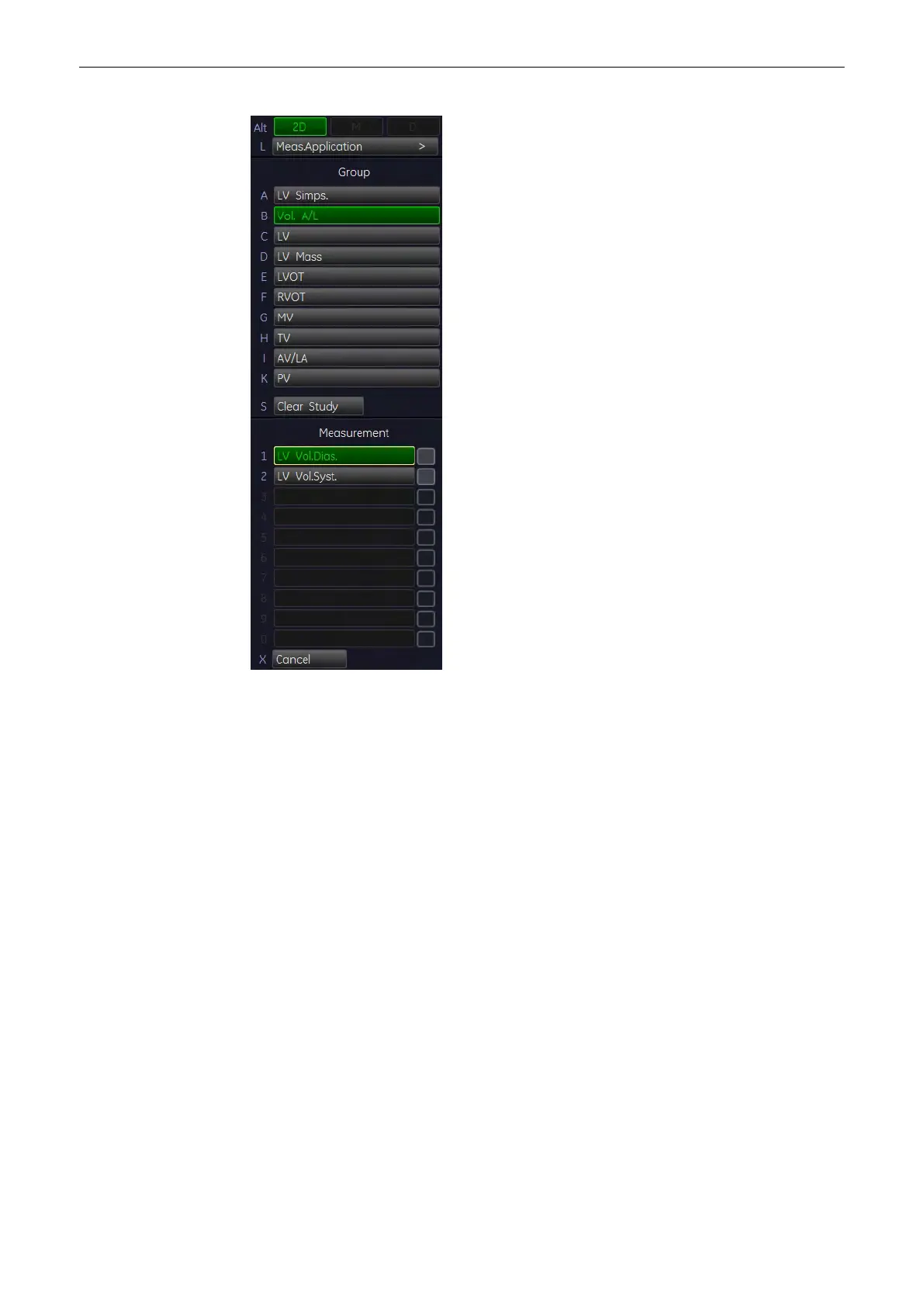

Select the item [Vol A/L].
3. Select the desired measurement parameter. For example: select [LV Vol. Dias.].
4. Perform the circumference measurement of the left ventricle by using the trackball key
and then press the right or left trackball key [Set].
5. Move the trackball to the longitudinal axis of the left ventricle and press [Set] to fix the
endpoint.
