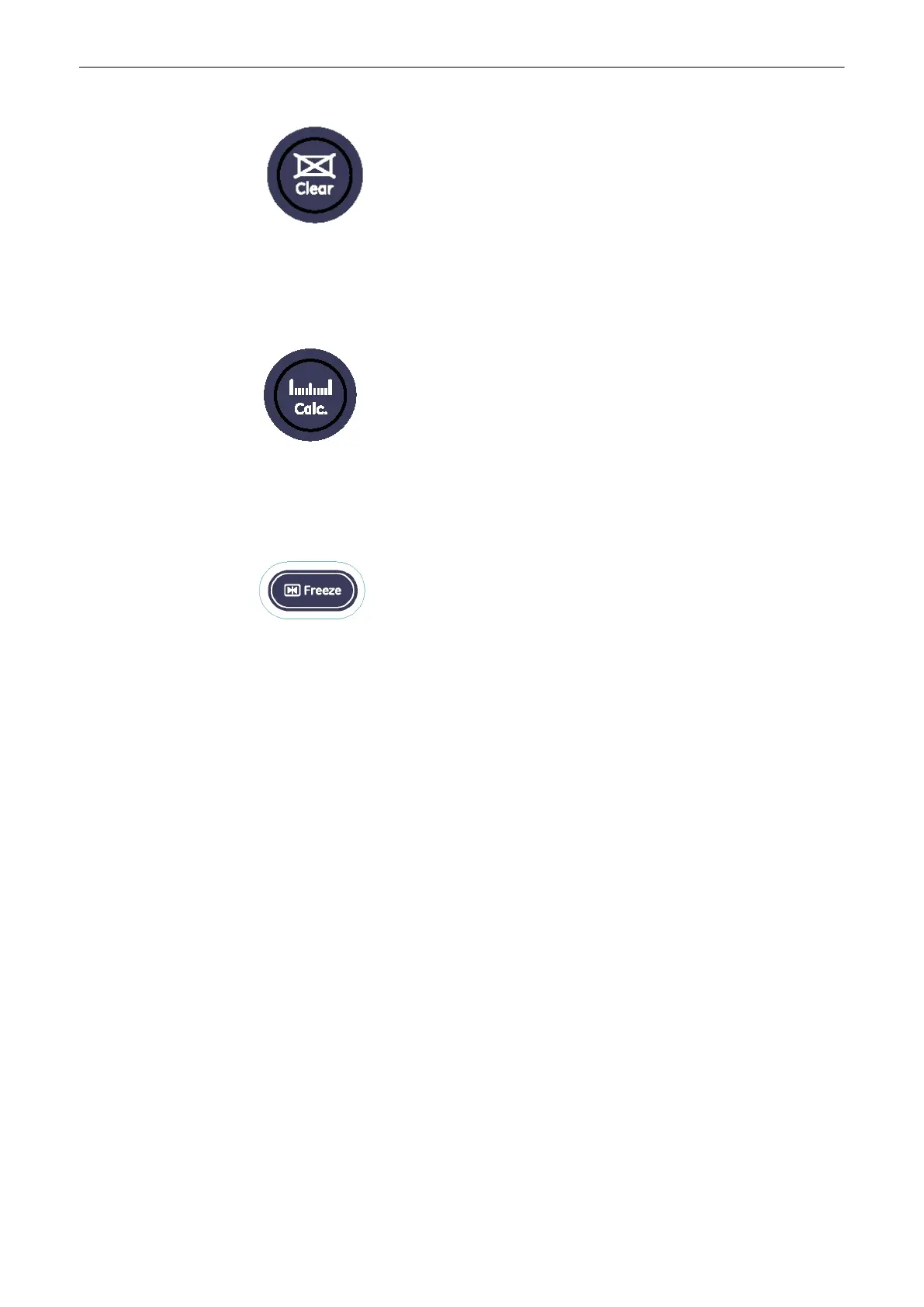

To erase results:
•
select the [Clear Study] item in the menu area
•
or Select the [Delete Last] item in the menu area
To exit the Calculation program:
•
press the [Calc] key on the control panel
•
or select [Exit] on the control panel
Depending on the setting in the Measure Setup, also the [Freeze] key can be used for
confirming the last measuring mark of the currently performed measurement.
•
To get the best resolution and accuracy from Doppler measurements, the [Angle]
correction cursor must be positioned parallel to the vessel axis (in the area of the
measuring volume).
•
When the result display is full, (max. 8) the first measurement will be overwritten first.
•
If more measurements are performed the current measurement will be placed in the
lower right corner. The previous measurements are displayed above (in successive
order, like a shift register).
•
Except for Auto Trace measurements, all measurement results will be automatically
included in the corresponding Worksheet. To store Auto Trace measurement results,
press the right or left trackball key [Set] previously.
•
Depending on the Application setting and the adjustment in the Measure Setup:
•
RI and PI will be calculated using ED (End Diastole) or “MD” (Mid Diastole)
Note
Vdiastole = Vend-diastole or Vmin (depending on this selection)
•
all previously set measuring marks are erased when starting a new scan (unfreeze
-> Run mode)
•
the Spectral Doppler envelope curve is performed with a continuous trace line or
by setting points
•
the Doppler measuring results (according to the “Auto/Manual Trace” setting) are
displayed after an Auto- or Manual Trace measurement (Setting will be ignored in
Cardiac calculations).
•
measurement items (e.g., BPD) will be shown with or without the Author’s Name.
Measurements and Patient Worksheets (Reports)
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4 11-99
