3 Alarm Log Settings Dialog Box
13
Alarm Log Function
■ Batch
Select this check box to batch output all the sampled data to the external memory.
All the data is saved on the external memory when the trigger devices changes from 0 to 1. If a file with the same
name already exists on the external memory, that file is overwritten. The maximum amount of output data is the
amount configured by the data storage area.
*1 Advanced mode only

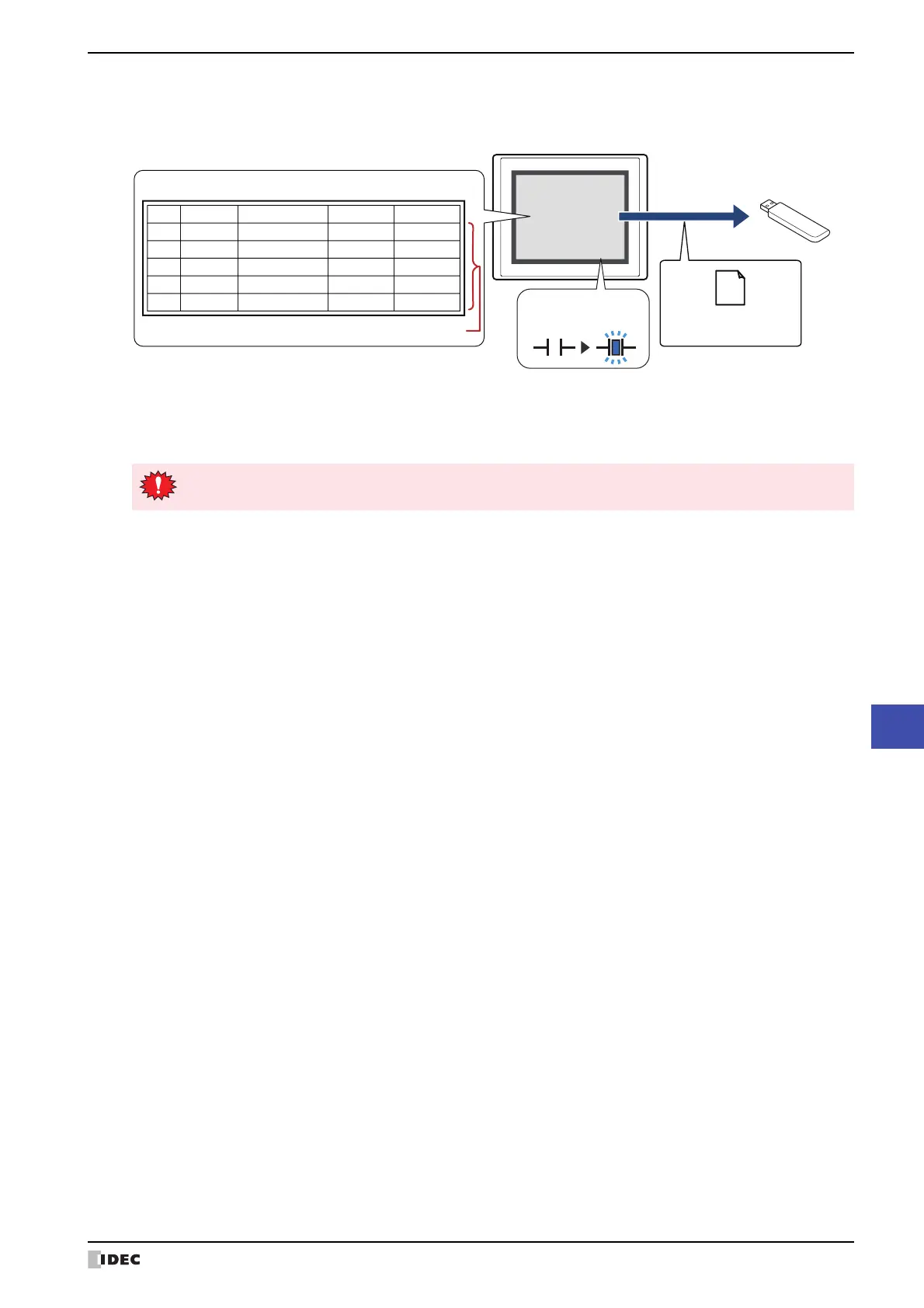

Tou ch
Alarm Log data (CSV)
Output to
USB flash drive
USB flash drive
Alarm Log data
0
1
Trigger Device
Ch.No. Message Occurrence Time Recovery Time Confirmation Time
1-1 Voltage drop 12/01/2011 12:00:05 12/01 12:01:10 12/01 12:01:30
1-2 Temperature abnormal 12/01/2011 12:01:09 12/01 12:02:21 12/01 12:02:55
1-1 Voltage drop 12/01/2011 12:02:00 12/01 12:03:11 12/01 12:05:12
1-3 Overcurrent 12/01/2011 12:30:21 12/01 12:55:15 12/01 13:00:00
1-1 Voltage drop 12/01/2011 12:45:36 12/01 12:53:12 12/01 12:57:41
Data to be output (all)
Output stops if there is insufficient free space on the external memory. USB flash drive error information is
stored in HMI Special Data Register LSD33.
Trigger Device: Specifies the bit device or bit of the word device to serve as condition for batch output. For the
device address configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on
page 2-62.
Data is output to file when the trigger device changes from 0 to 1.
File Name: Enter the file name for the output data or shows the file name.
The default is “ALMHTO.CSV”. To change the file name, enter a new file name. The maximum
number is 120 characters (including the extension).
Add Device data to File Name
*1
:
Select this check box to add the bottom three digits of
the value of device configured by File Name Device to
the end of the file name for the output data.
Example: When the value of device configured by File
Name Device is 123, the file name is
“ALMHTO123.CSV”.
File Name Device: Specifies the word device that is the source for the value
to add to the file name. For the device address
configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-62. This option can only be
configured when the Add Device data to File Name
check box is selected.
